Driving Range Display

SYSTEM

DRIVING RANGE DISPLAY : System Description


SYSTEM DIAGRAM







DESCRIPTION

- VCM sends the signals below to the combination meter via CAN communication.
- Driving range signal
- Driving range request signal
- Driving range flashing request signal

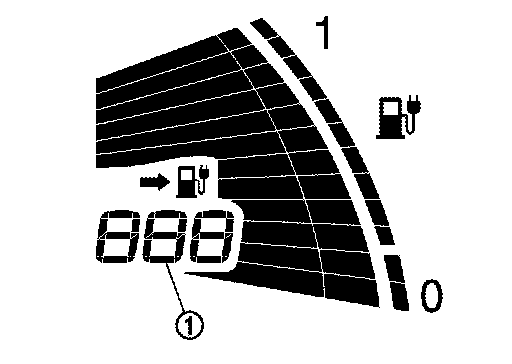

- Based on the signals received via CAN communication from VCM, the combination meter displays the driving range on the driving range display (1).
Driving Range Display Pattern





NOTE:
- If the power switch is turned from OFF to READY, the value that is last received is displayed.
- The driving range is updated approximately every 100 m (0.06 mile) of driving.

SIGNAL PATH
