Meter Control Switch




COMPONENT PARTS

METER SYSTEM : Meter Control Switch

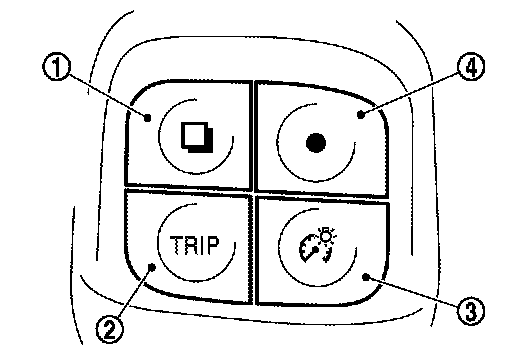

- The meter control switch is located on the side ventilator grille LH.

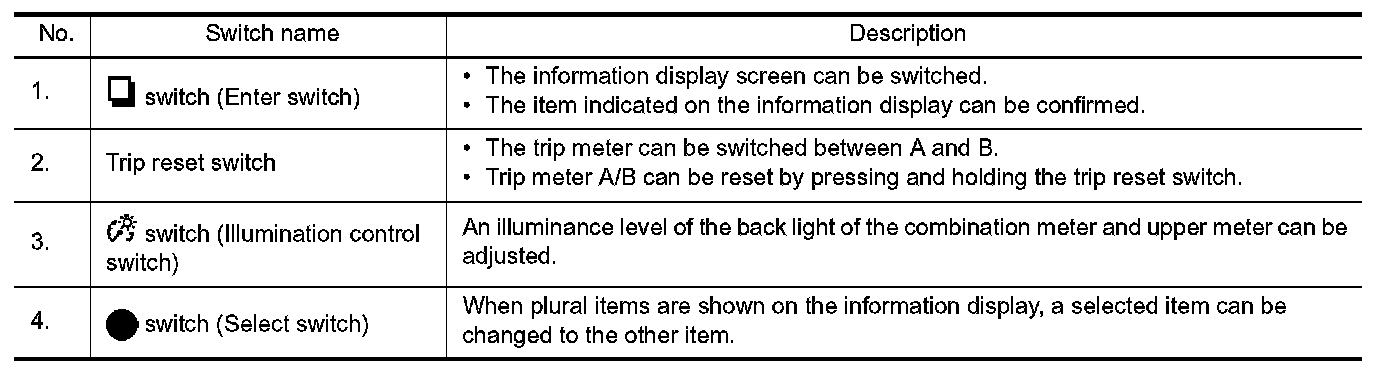

- The meter control switch can be used to control the combination meter functions listed below and to change the display of vehicle information.





- Transmits the following signals to the combination meter.
- Enter switch signal
- Select switch signal
- Trip reset switch signal
- Illumination control switch signal
