PROCEDURE FOR PARK LOCK RELEASE

PROCEDURE FOR PARK LOCK RELEASE


CAUTION:
If the vehicle must be unavoidably moved with front wheel on the ground or four wheel on the ground, release the park lock and hold the park lock in the released status (N position). The park lock is activated when power switch is OFF or when 12V battery voltage is low. Always perform the following work so that the N position status is maintained. If the vehicle is moved without performing the following work, serious accident may be caused. Steering lock does not operate after performing this work.
Be careful that the brake effectiveness is reduced and steering operation becomes heavy.
1.Turn power switch ON (Press power switch twice without depressing brake pedal). At this moment, check that electric parking brake is operated.
2.Shift selector lever from the P position to the N position (Depress brake pedal while all doors are closed, and then release the P position).

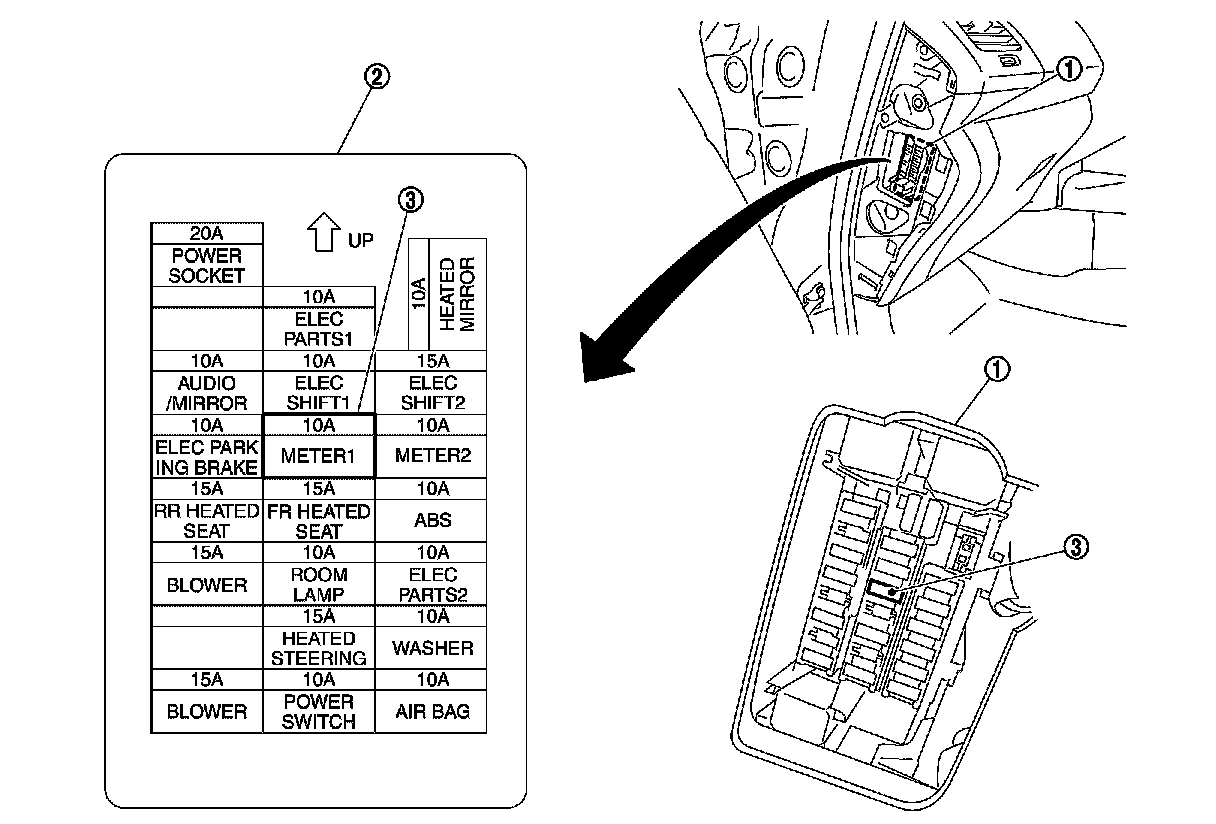

3.Remove the following fuse.
- PBW MTR-1
- PBW MTR-2










- METER 1










4.Release electric parking brake.
5.Turn power switch OFF. (Release brake pedal)
6.Move the vehicle while power switch is OFF.
7.Fix the vehicle after moving. (Using electric parking brake or tire stopper)
8.Install fuse that is removed.
9.Turn power switch ON (Press switch twice without depressing brake pedal) and wait for 5 seconds at this moment, maintain the shift position to the N position. (Charge 12V battery if its voltage is low)
10.Turn power switch OFF. (Wait for 5 seconds)
