Navigation System - Displays Incorrect City Name

Classification:
EL12-080

Reference:
NTB12-117

Date:
December 19, 2012

2012 LEAF(R); NAVI DISPLAYS INCORRECT CITY NAME

APPLIED VEHICLE:
2012 LEAF(R) (ZE0) APPLIED VIN and
DATE: 2012 vehicles built before JNIAZ0CP(*)CT 025428 and July 5 2012

IF YOU CONFIRM:

When using the NAVI system, it may display the incorrect city name.

NOTE:

The NAVI mapping functions still operate correctly.

ACTION:

1. Go to Previous Destinations in the NV (NAVI) control unit.

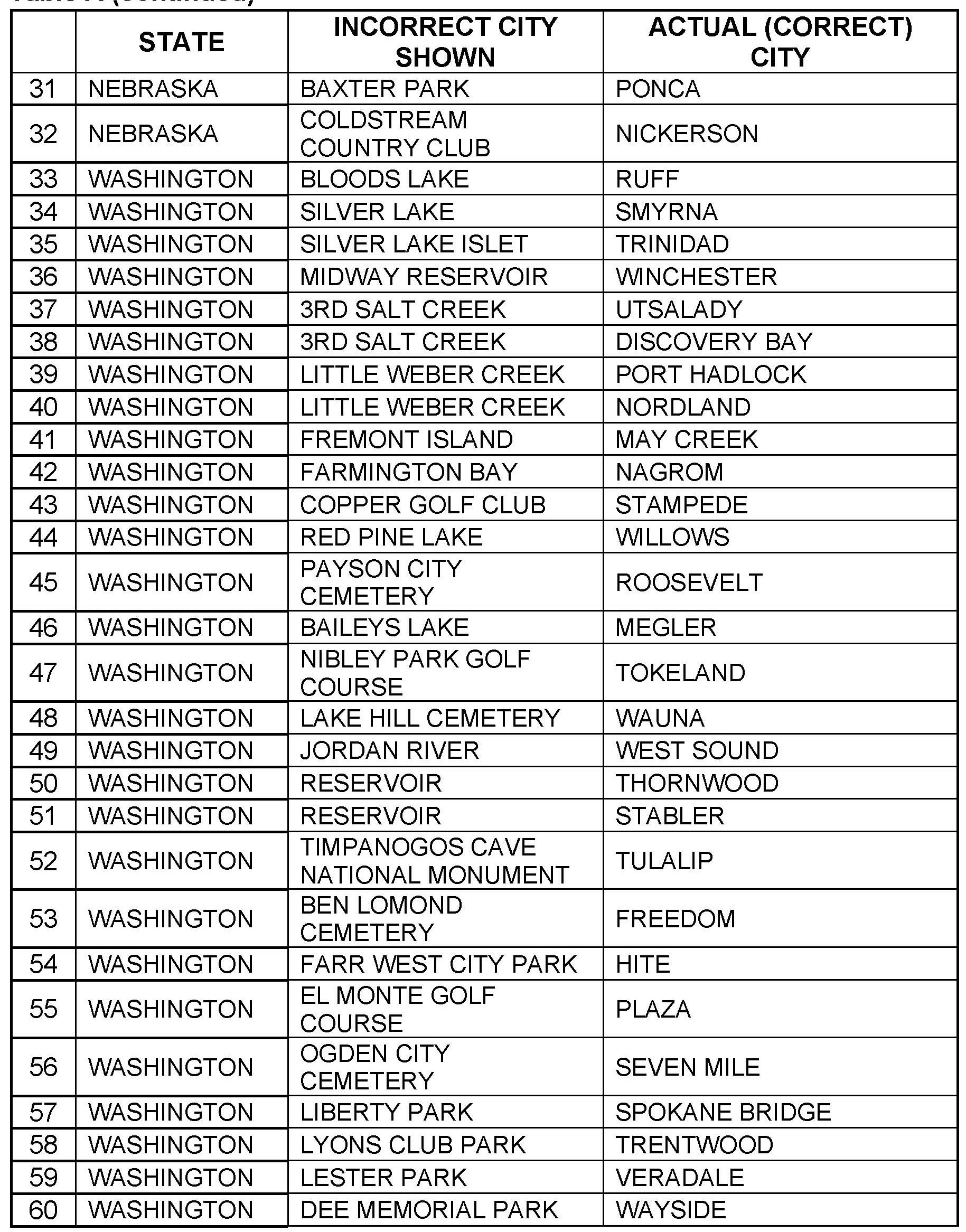

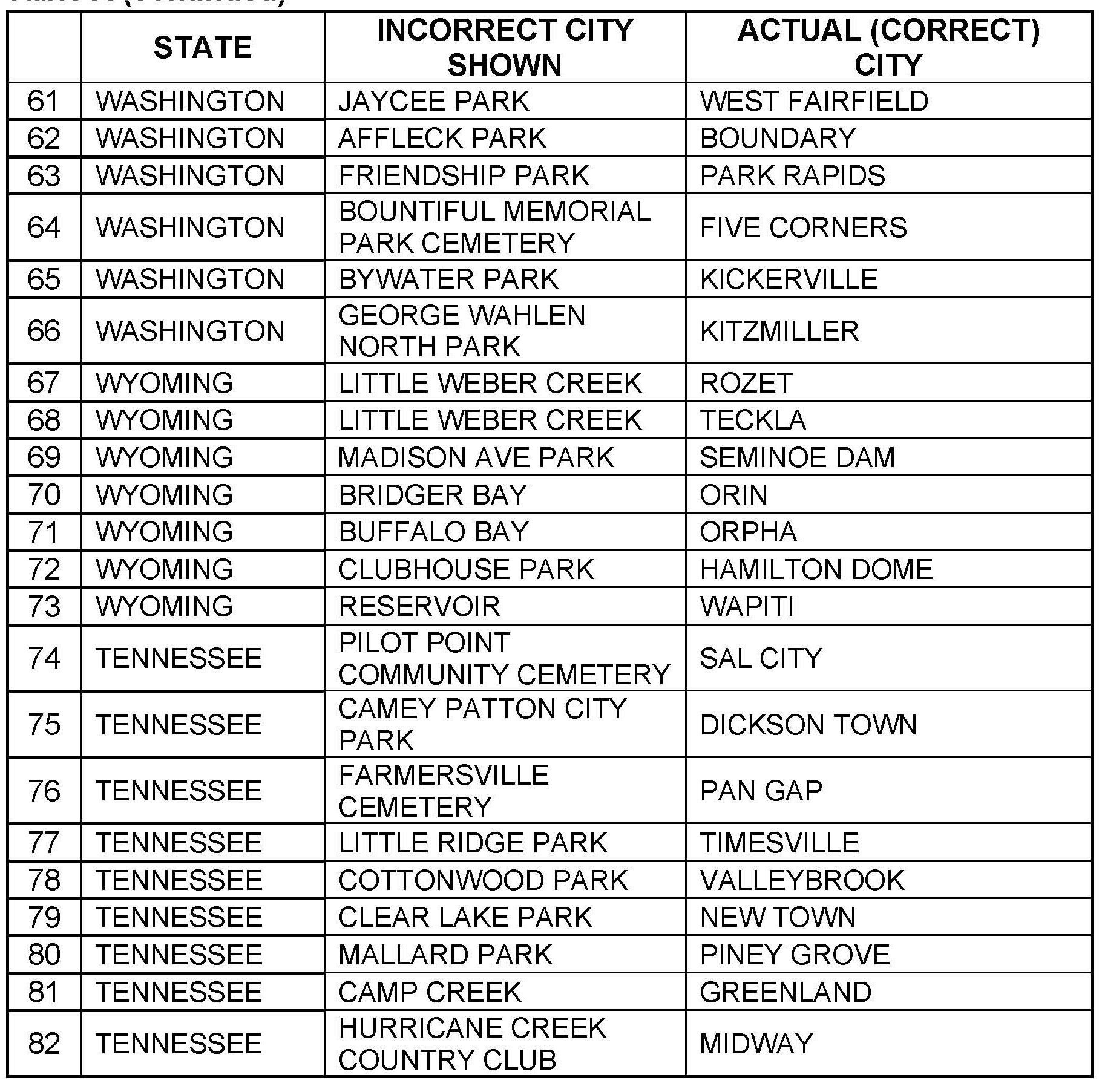

2. Check for a match in name(s) of cities in Previous Destinations to those in Table A.

3. If a match is found, replace the NV control unit.

NOTE:

^ This bulletin applies only if there is a match in Previous Destinations and Table A.

^ There is no need to call TECH LINE to replace or order this part.

^ Follow the reman exchange program as it applies.

IMPORTANT:

The purpose of ACTION is to give you a quick idea of the work you will be performing. You MUST closely follow the entire SERVICE PROCEDURE as it contains information that is essential to successfully completing this repair.

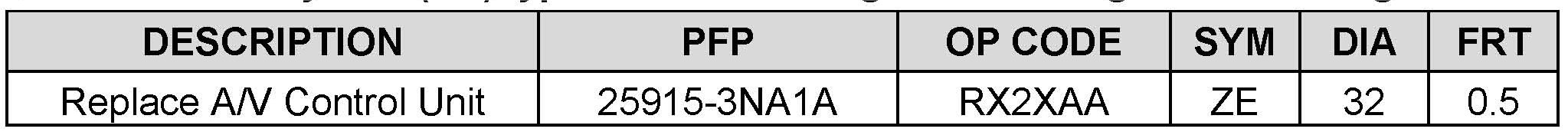

PARTS INFORMATION





CLAIMS INFORMATION

Submit a Primary Part (PP) type line claim using the claims coding shown.

SERVICE PROCEDURE

1. Turn on the NAVI unit.

2. Go to MENU>Destination>Previous Destinations.

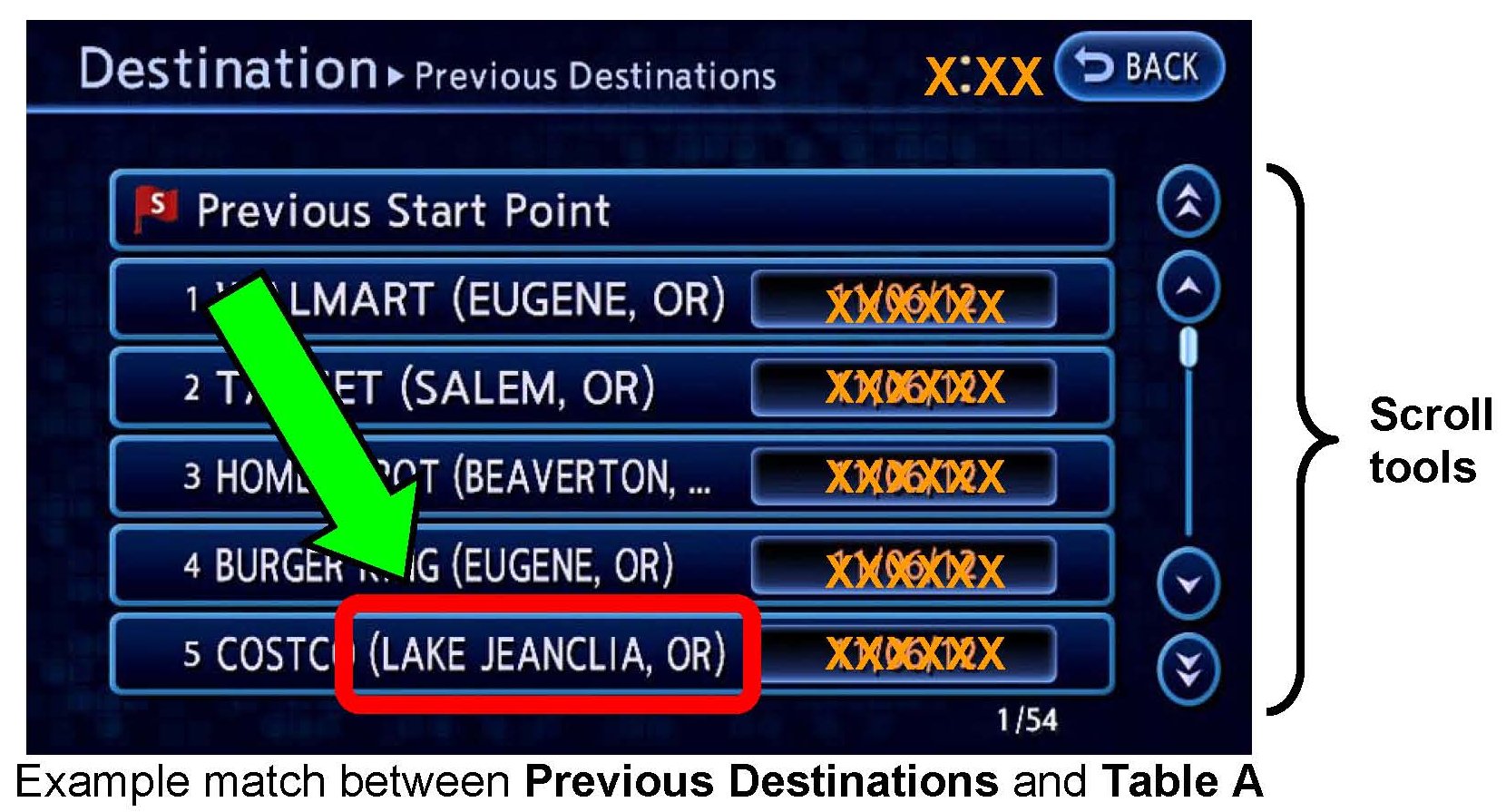

3. Compare the names of cities under Previous Destinations with those listed in Table A.

^ Scroll up and down to view the complete list, if necessary.





4. If there is a match, replace the A/V control unit.
