Telematics - No Connection, DTC's U1A03/U1A05 Set: Overview

Classification: EL11-015B

Reference: NTB11-041B

Date: December 11, 2012

2011 - 2012 LEAF; NO TELEMATICS CONNECTION

This bulletin has been amended. Applied VIN and Applied Date information has been added. The A/V control unit update has been removed. TCU software has been updated to version 3NA0000628 and has a new Op Code. Please discard all previous copies.

APPLIED VEHICLES: 2011 - 2012 LEAF (ZE0)

APPLIED VINS: Vehicles built before JN1AZ0CT(*)CP 022503

APPLIED DATES: Vehicles built before May 18, 2012

IF YOU CONFIRM

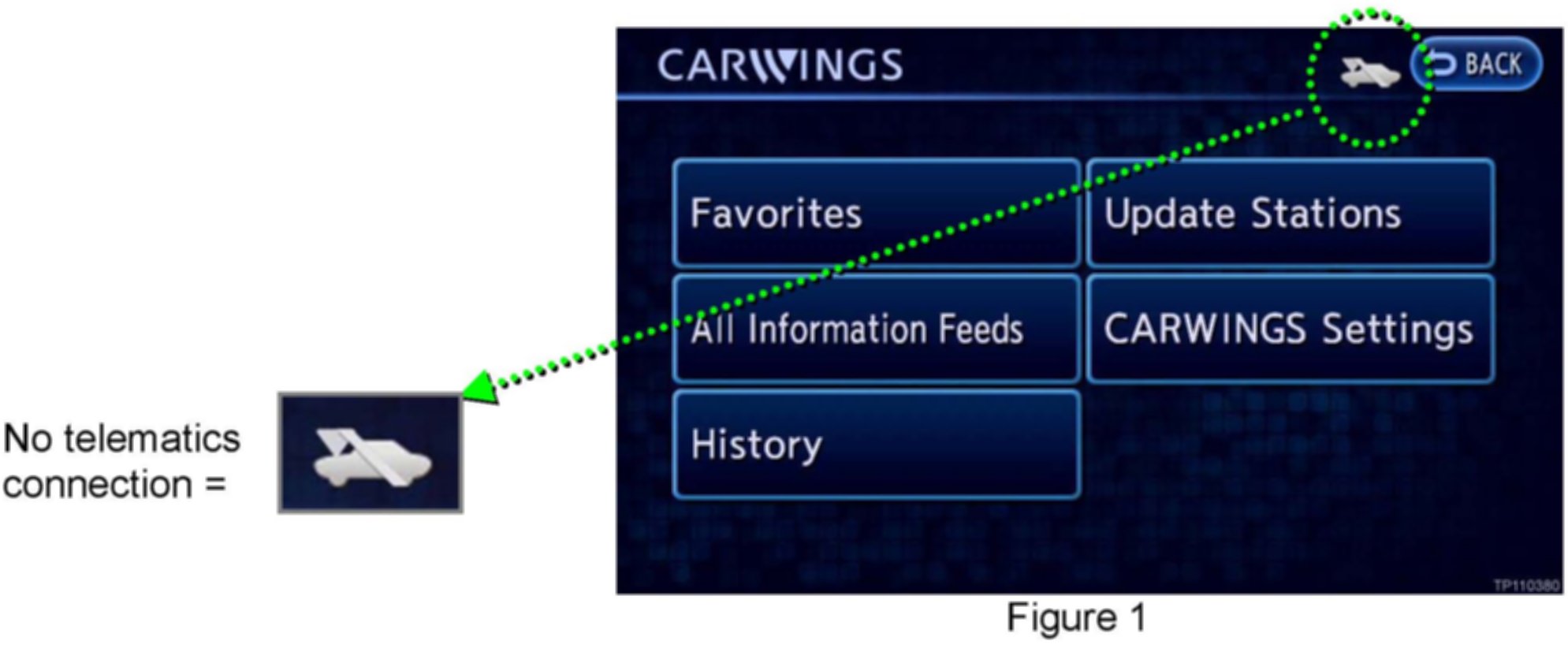

^ The vehicle had a proper telematics signal/connection and operation previously, but now the telematics symbol indicates no signal/connection in any location or there is no symbol at all.

^ DTCs U1A03 and/or U1A05 are present.

ACTION

^ Perform Section 1 of the SERVICE PROCEDURE ("Software Version Check of TCU") to determine if this bulletin applies.

If this bulletin does apply, perform software updates for the Telematics Control Unit (TCU) as instructed in the SERVICE PROCEDURE.

IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire SERVICE PROCEDURE as it contains information that is essential to successfully completing this repair.





CLAIMS INFORMATION
