After A/V Control Unit Replacement - Enter User ID and Password

After AN Control Unit Replacement - Enter CARWINGS(TM) User ID and Password

NOTE:
^ During this process, the vehicle owner must enter the CARWINGS(TM) User ID (PIN) and Password into the new A/V Control Unit. This step is necessary to finalize the repair.

^ The owner was provided with the CARWINGS(TM) User ID and Password during the initial CARWINGS(TM) registration.

^ The CARWINGS(TM) User ID and Password are different from the the www.nissanusa.com/owners account User ID and Password. Make sure the owner understands which User ID and Password is being requested.

^ If the owner cannot remember the CARWINGS(TM) User ID and Password, inform them it can be viewed in the Manage Account area of their the www.nissanusa.com/owners account.

^ The CARWINGS(TM) User ID and Password input fields are case sensitive. Make sure the owner takes note of which letters of the User ID and Password are lowercase and which are uppercase.

^ The CARWINGS(TM) services will not function until the CARWINGS(TM) User ID and Password are entered into the navigation system.

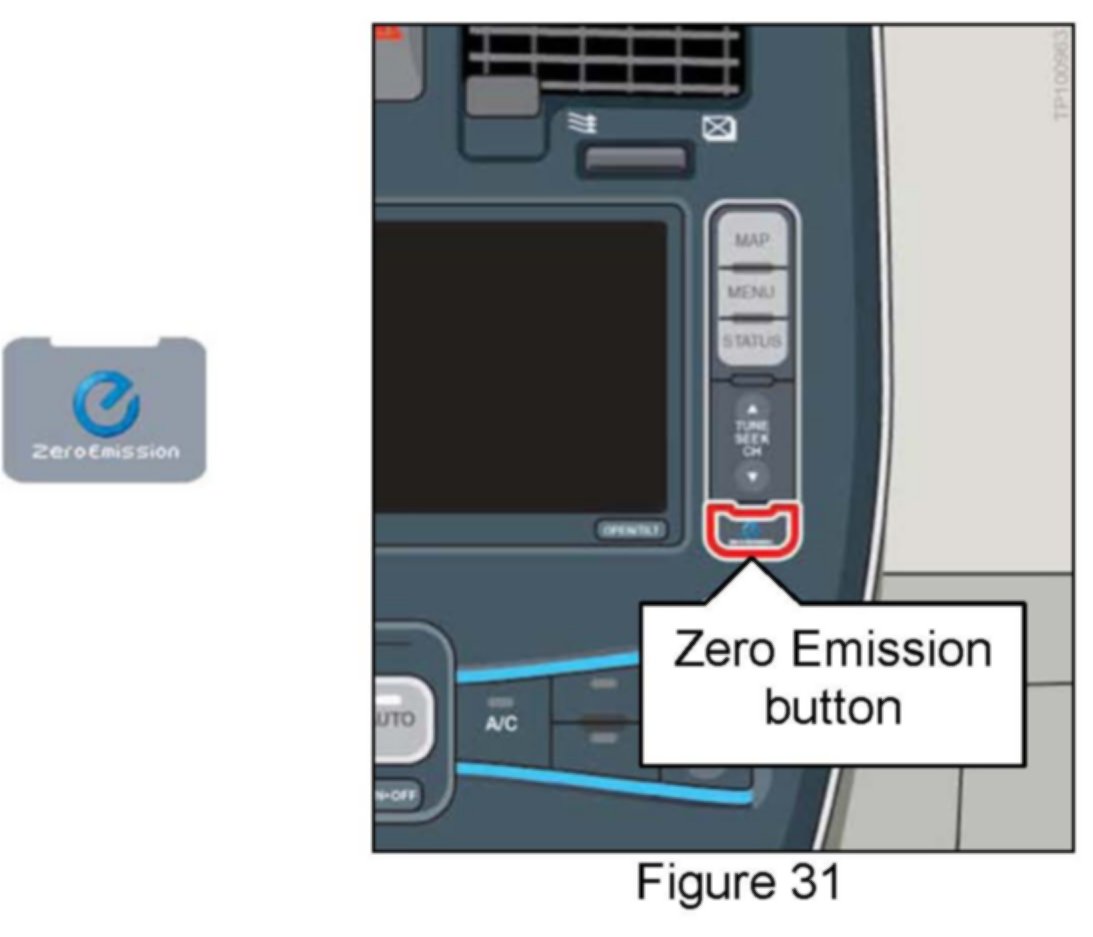

1. Press the Zero Emission button on the Multifunction Control Panel.





2. Select CARWINGS.





3. Select CARWINGS Settings.





4. Select Sign in.





5. Have the owner enter the CARWINGS(TM) User ID and Password.

^ Touch the input fields one at a time to enter the information using the onscreen keyboard.

^ The input fields are case sensitive. Example: "HpcWnYE" must be entered as "HPcWnYE not "HPCWNYE" or "hpcwnye".

6. Select Send ID and password.
