Telematics(R) System - Service Information: Overview
Classification: EL10-044BReference: NTB10-135B
Date: December 22, 2011
LEAF; TELEMATICS SERVICE INFORMATION
This bulletin has been amended. The Applied Vehicles section has been revised. No other changes have been made. Please discard all previous copies.
APPLIED VEHICLES: 2011-2012 LEAF (ZEO)
SERVICE INFORMATION
This bulletin contains important service procedures that must be performed in order to set-up and maintain the Nissan LEAF Telematics system.
See the Telematics Overview, below, and the Bulletin Overview for more information.
NOTE:
Detailed Telematics system information outside the scope of this bulletin can be found in the AV section of the Electronic Service Manual (ESM).
TELEMATICS OVERVIEW

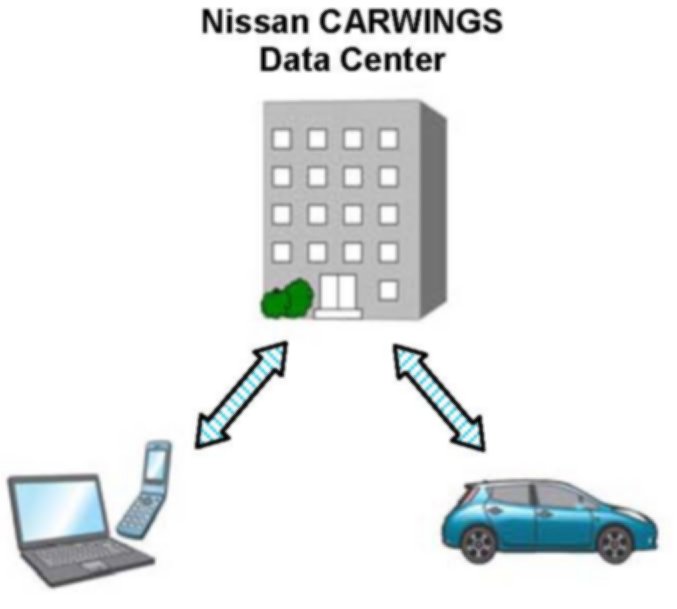

The Nissan LEAF is equipped with a wireless communication device called a Telematics Communication Unit (TCU).
The connection between the TCU and the Nissan CARWINGS(TM) Data Center, along with an active CARWINGS(TM) subscription, allows for various services.
For example:
^ Some vehicle information and functions are available to the vehicle owner via personal computer or internet-enabled smart phone.
^ Additional information is displayed on the navigation screen in the CARWINGS(TM) section.
BULLETIN OVERVIEW
During Pre-Delivery Inspection (PDI):
^ The TCU is OFF when delivered to the dealership and will need to be turned ON during PDI.
^ Use CONSULT-III plus (C-III plus) to turn ON the TCU.
^ See Turning ON the TCU During PDI for detailed instructions.
When replacing a TCU:
^ If the TCU requires replacement for any reason:
1. Turn OFF the original TCU using C-III plus.
2. Save the VIN DATA using C-III plus.
3. Remove the original TCU from the vehicle.
4. Deactivate (unregistered) the original TCU by calling Nissan LEAF TCU Replacement Support.
5. Activate (register) the replacement TCU by calling Nissan LEAF TCU Replacement Support.
6. Install the replacement TCU in the vehicle.
7. Write the VIN DATA using C-III plus.
8. Turn ON the replacement TCU using C-III plus.
9. Resend CARWINGS(TM) User ID and Password.
^ Each TCU is registered to a specific Vehicle Identification Number (VIN). TCUs cannot be "swapped" between vehicles.
^ The replacement TCU must come from Nissan North America parts supply.
^ Contact Nissan LEAF TCU Replacement Support to deactivate the original TCU and activate the replacement TCU.
^ See When a TCU Needs to be Replaced for detailed instructions.
After replacing an Audio/Visual (A/V) Control Unit:
^ After a replacement A/V control unit has been installed, the CARWINGS(TM) User ID and Password must be entered into the new A/V control unit.
^ The vehicle owner was provided with this information during the initial CARWINGS(TM) registration.
^ See After A/V Control Unit Replacement - Enter CARWINGS(TM) User ID and Password for detailed instructions.
