Windshield Washer Spray Nozzle: Testing and Inspection

FRONT WASHER NOZZLE AND TUBE

Inspection and Adjustment


INSPECTION

Washer Nozzle Inspection

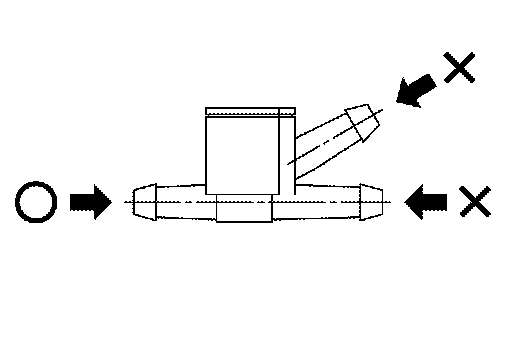

Check that air can pass through the hose by blowing forward (toward the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

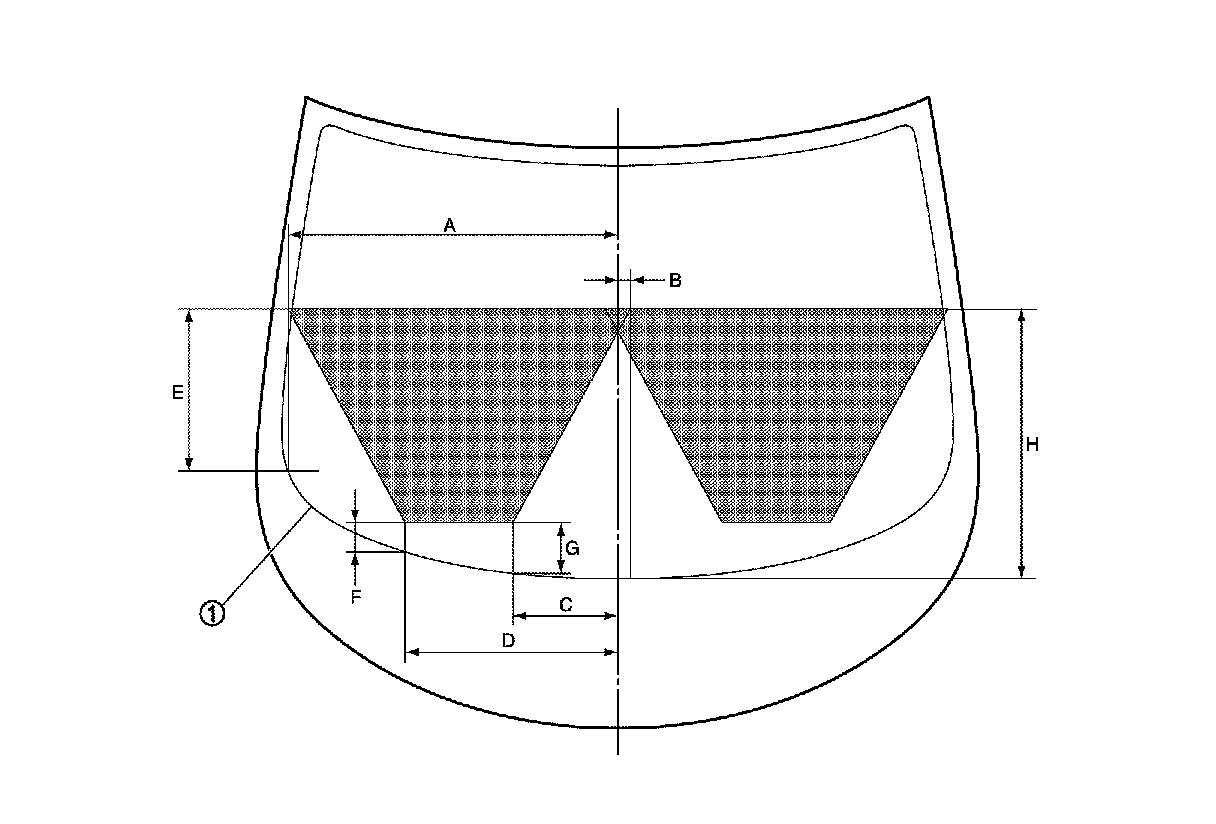

Adjust spray positions to match the positions shown in the figure.
NOTE:
The spray position in the passenger side is similar to the one in the driver side.

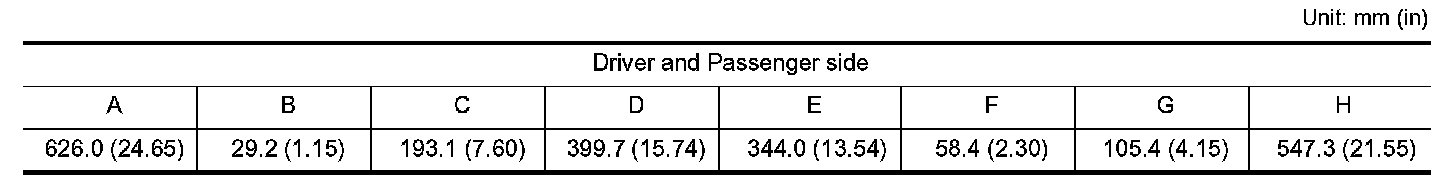

Unit: mm (in)






CAUTION:

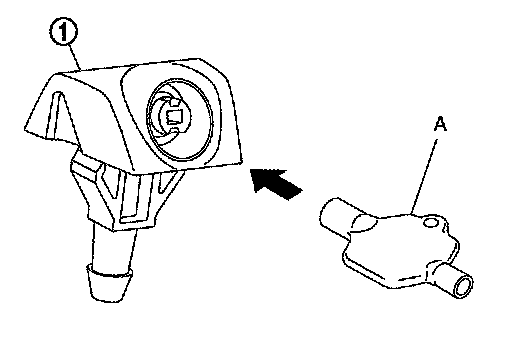

- Use washer nozzle adjuster* (A) for nozzle adjustment.


- Never use needle or small pin.
(Washer nozzle adjuster is included with shipment of nozzle)
NOTE:
If wax or dust gets into the front washer nozzle (1), remove wax or dust with a needle or small pin.
