P0745

P0745 PRESSURE CONTROL SOLENOID A

Description

The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.


DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE

NOTE:
Immediately after performing any "DTC CONFIRMATION PROCEDURE", always turn ignition switch OFF.
Then wait at least 10 seconds before performing the next test.

1. CHECK DTC DETECTION

With CONSULT
1.Turn ignition switch ON.
2.Start engine and wait at least 5 seconds.
3.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT".
Is "P0745" detected?
YES- Go to .
NO- Check intermittent incident. Intermittent Incident.


Diagnosis Procedure

Regarding Wiring Diagram information, Electrical Diagrams.

1. CHECK LINE PRESSURE SOLENOID VALVE CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect TCM connector.
3.Check resistance between TCM vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 2.

2. CHECK HARNESS BETWEEN TCM AND CVT UNIT (LINE PRESSURE SOLENOID VALVE) (PART 1)






1.Disconnect CVT unit connector.

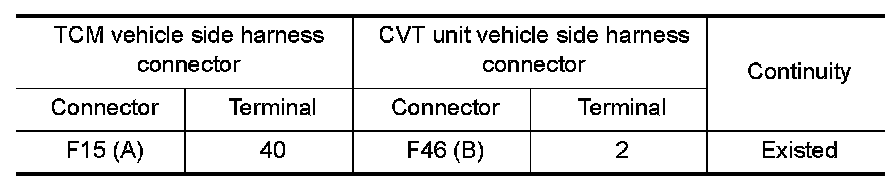

2.Check continuity between TCM vehicle side harness connector terminal and CVT unit vehicle side harness connector terminal.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace damaged parts.

3. CHECK HARNESS BETWEEN TCM AND CVT UNIT (LINE PRESSURE SOLENOID VALVE) (PART 2)






Check continuity between TCM vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace damaged parts.

4. CHECK LINE PRESSURE SOLENOID VALVE

Check line pressure solenoid valve.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace transaxle assembly. Exploded View.

5. DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES- Replace TCM. Exploded View.
NO- Repair or replace damaged parts.


Component Inspection (Line Pressure Solenoid Valve)


1. CHECK LINE PRESSURE SOLENOID VALVE






Check resistance between CVT unit connector terminal and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace transaxle assembly. Exploded View.
