Connectors




HARNESS

Harness Layout


HOW TO READ HARNESS LAYOUT






The following Harness Layouts use a map style grid to help locate connectors on the drawings:
- Main Harness, Console Sub-harness and Console Switch Subharness
- Engine Room Harness and Front End Module Harness
- Engine Room Harness (Passenger Compartment)
- Engine Control Harness and Knock Sensor Sub-harness
- Body Harness, Front Seat LH Harness, Tail Harness and Chassis
Harness
- Body No. 2 Harness, Front Seat RH Harness, Rear Parcel Shelf
Harness and Tail Sub-harness
- Room Lamp Harness and Sunroof Sub-harness
To use the grid reference

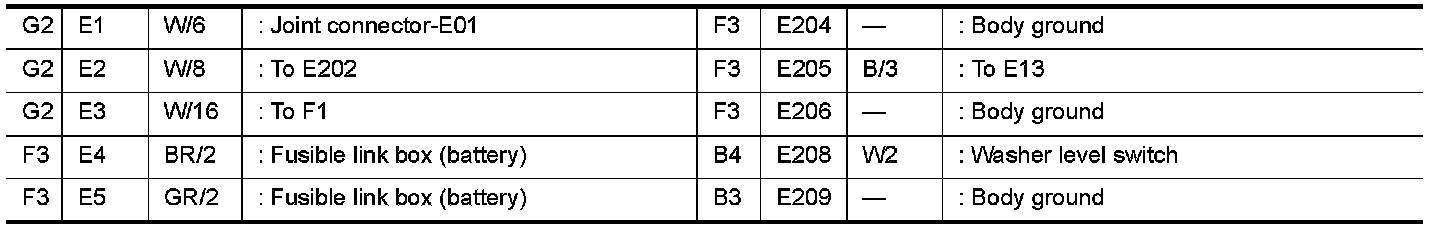

1.Find the desired connector number on the connector list.
2.Find the grid reference.
3.On the drawing, find the crossing of the grid reference letter column and number row.
4.Find the connector number in the crossing zone.
5.Follow the line (if used) to the connector.

OUTLINE

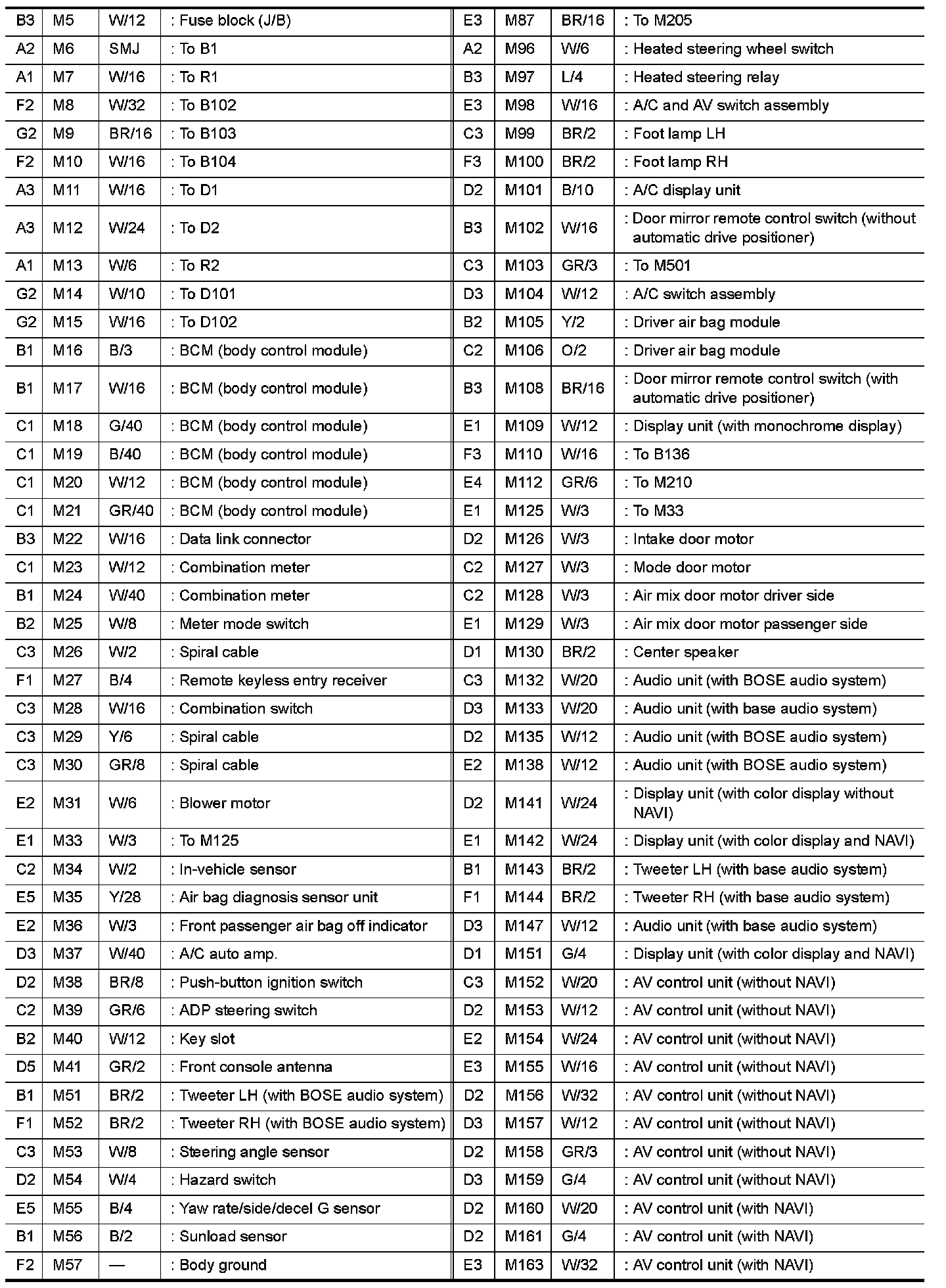

MAIN HARNESS

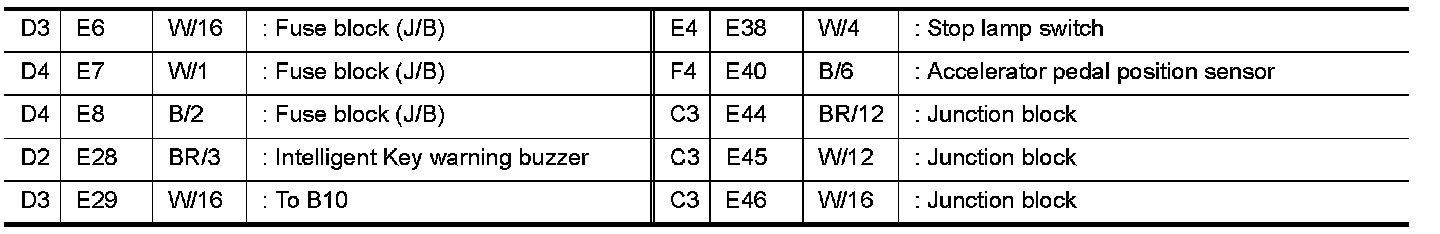

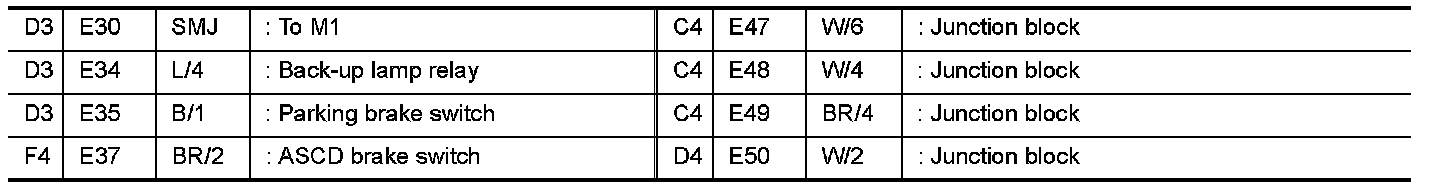

ENGINE ROOM HARNESS

















ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

















ENGINE CONTROL HARNESS












BODY HARNESS

















BODY NO. 2 HARNESS

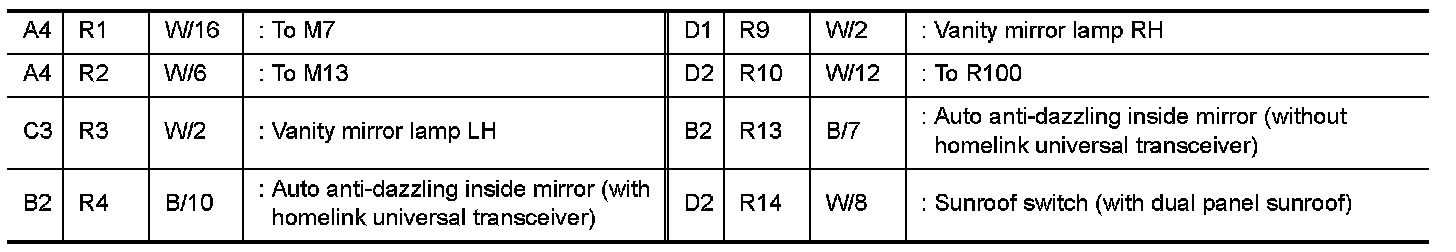

ROOM LAMP HARNESS

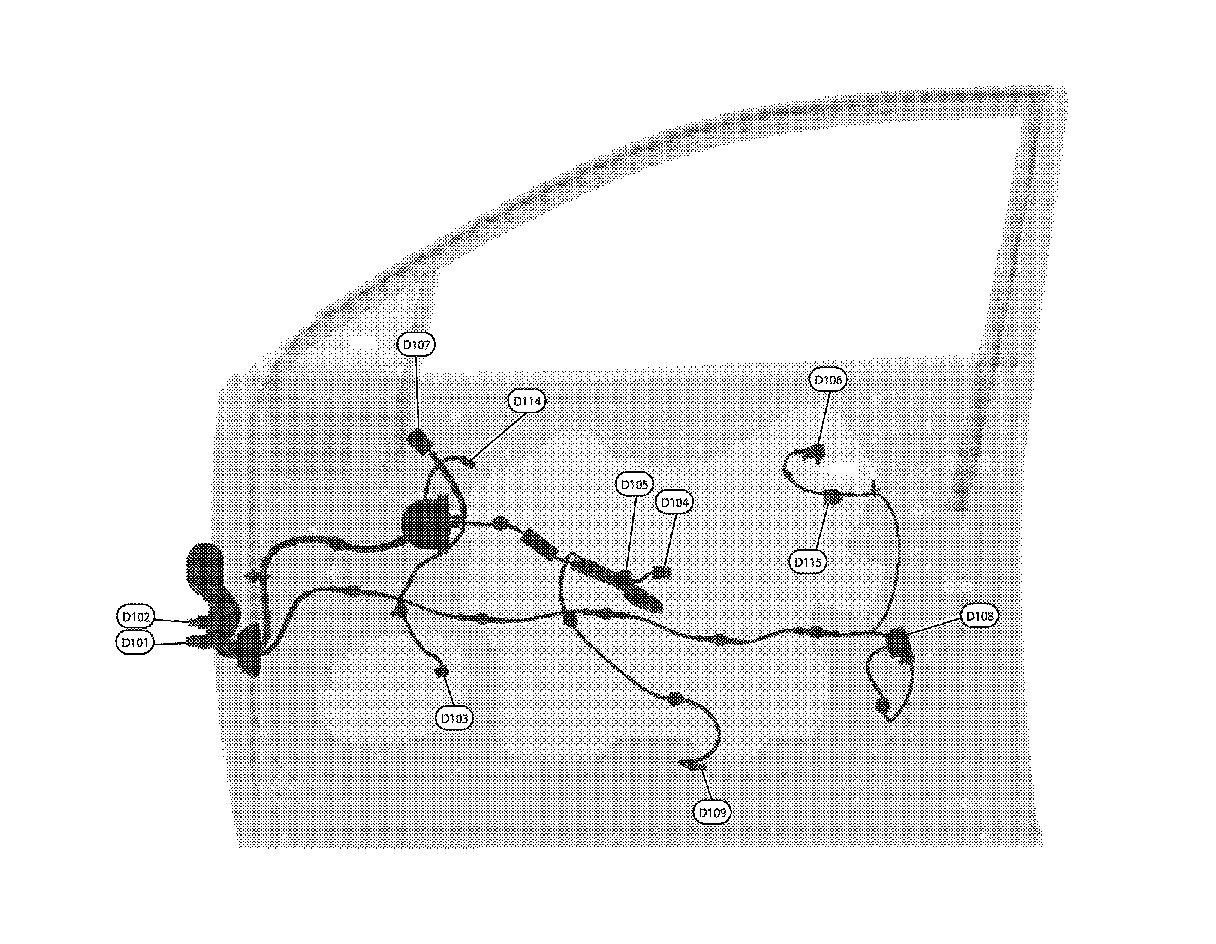

FRONT DOOR LH HARNESS

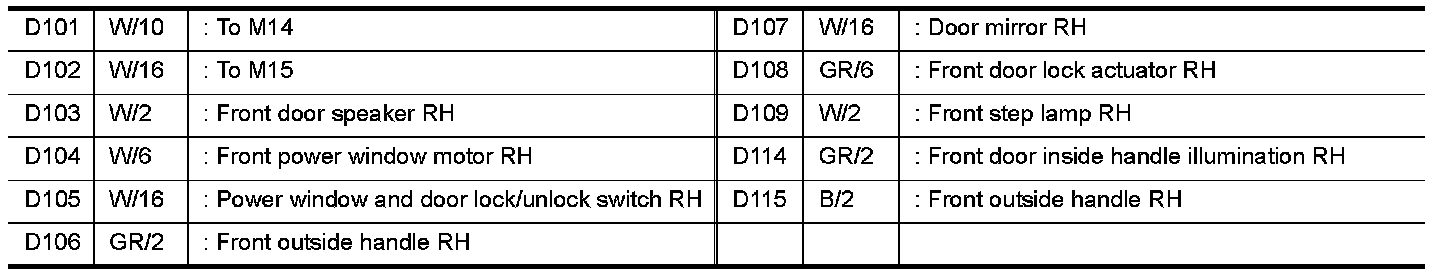

FRONT DOOR RH HARNESS

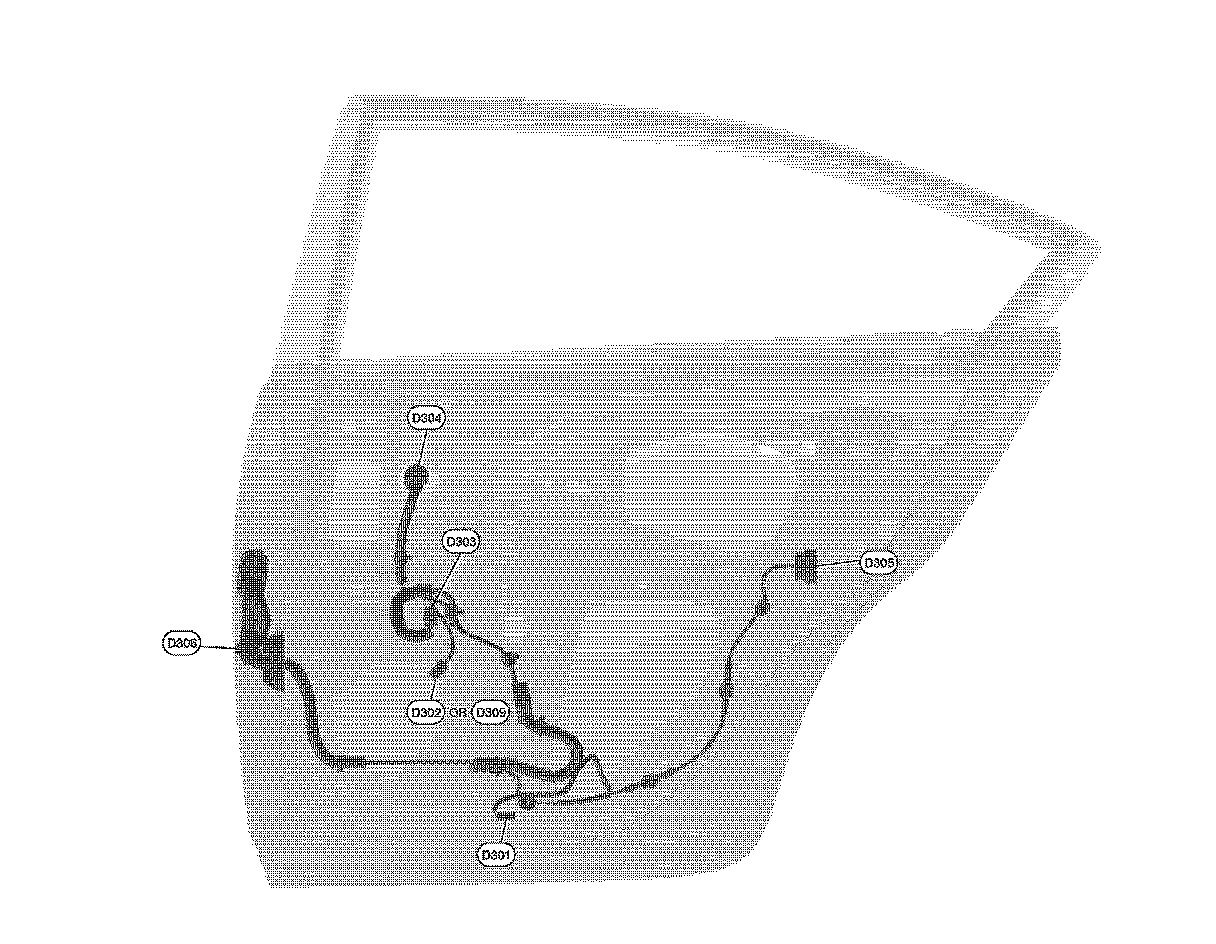

REAR DOOR LH HARNESS

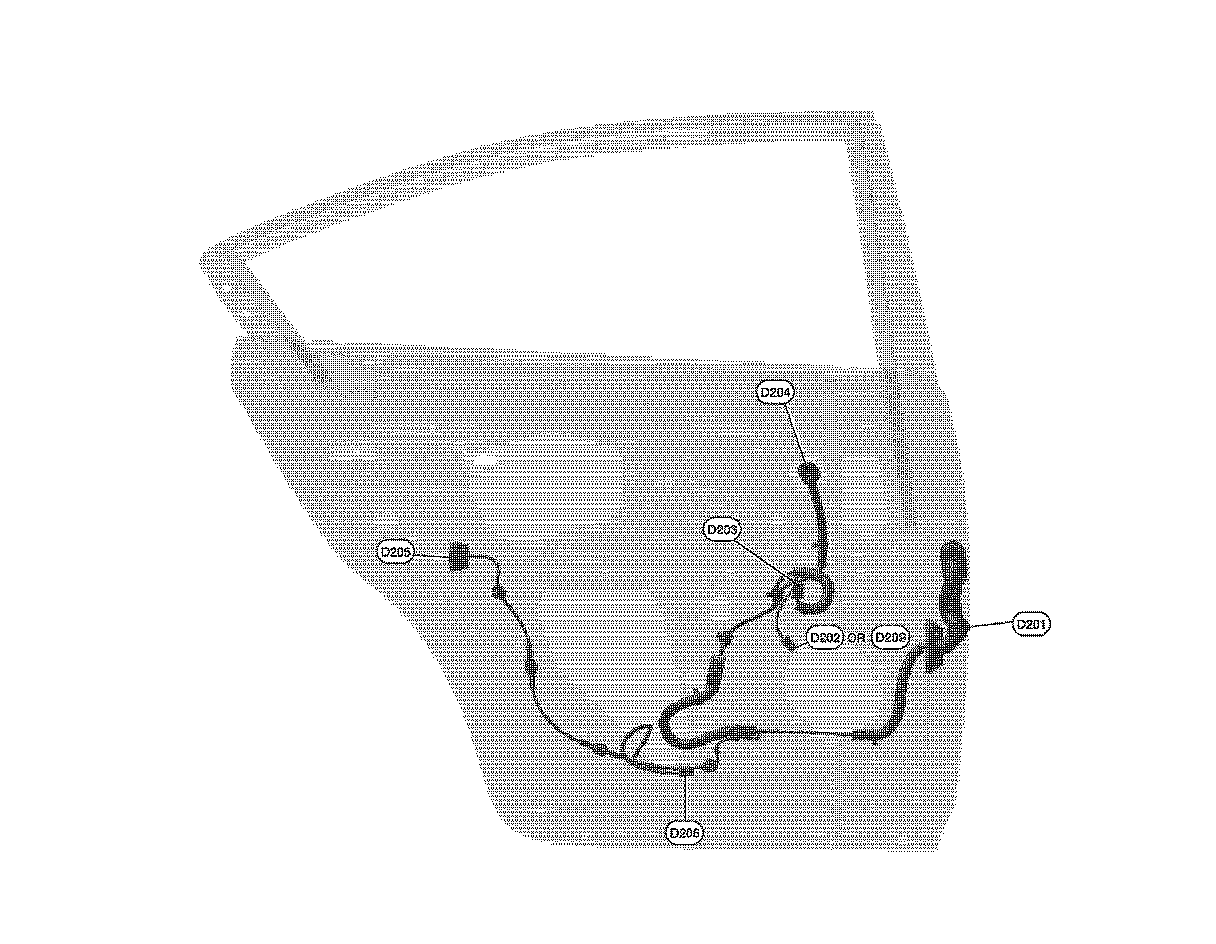

REAR DOOR RH HARNESS
