Disassembly And Assembly

COMBINATION METER

Disassembly and Assembly


DISASSEMBLY

1.Remove the combination meter. Removal And Installation.

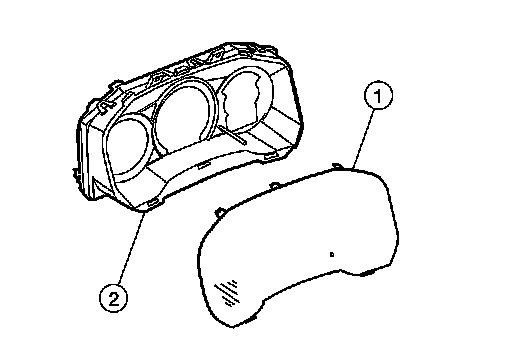

2.Remove the combination meter lens (1) from the combination meter (2).

ASSEMBLY

Assembly is in the reverse order of disassembly.
