Instrument Panel, Gauges and Warning Indicators: Service and Repair

METER CONTROL SWITCH

Removal and Installation


REMOVAL

1.Disconnect the negative battery terminal.
2.Remove the cluster lid A. Removal And Installation.

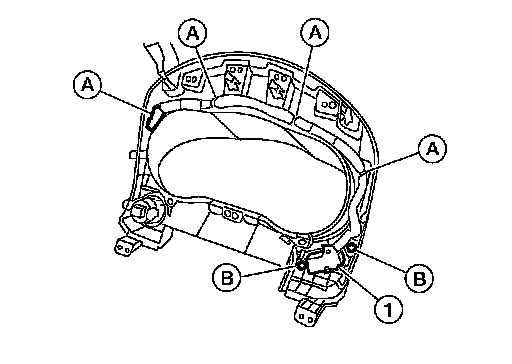

3.Detach the combination meter control switch harness clips (A).
4.Remove the combination meter control switch screws (B) and remove the combination meter control switch (1).

INSTALLATION

Installation is in the reverse order of removal.
