Lighting and Horns: Service and Repair

ILLUMINATION

Removal and Installation

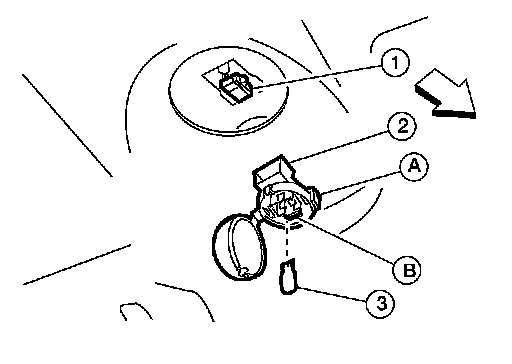

TRUNK ROOM LAMP

Removal





1.Release the tab (A), then swing open the lens.
: Vehicle front
2.Remove the bulb (3).
3.Release the tab (B), then pull trunk room lamp (2) away from body opening.
4.Disconnect the connector (1) and remove trunk room lamp.
Installation
Installation is in the reverse order of removal.
Bulb Replacement
1.Release the tab (A), then swing open the lens.
2.Pull bulb (3) straight out to remove.
