Pinout Values and Diagnostic Parameters




TCM

Reference Value


VALUES ON THE DIAGNOSIS TOOL

















TERMINAL LAYOUT

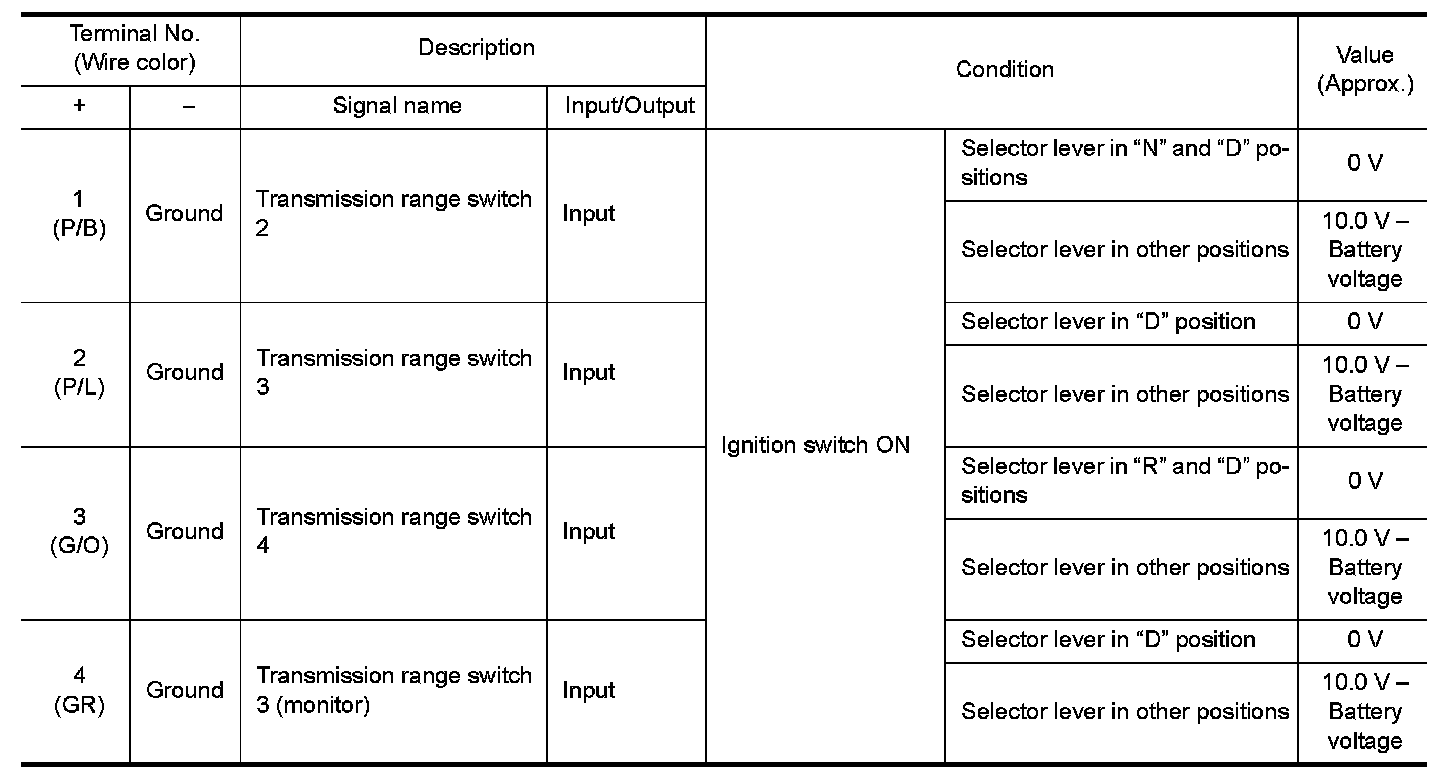

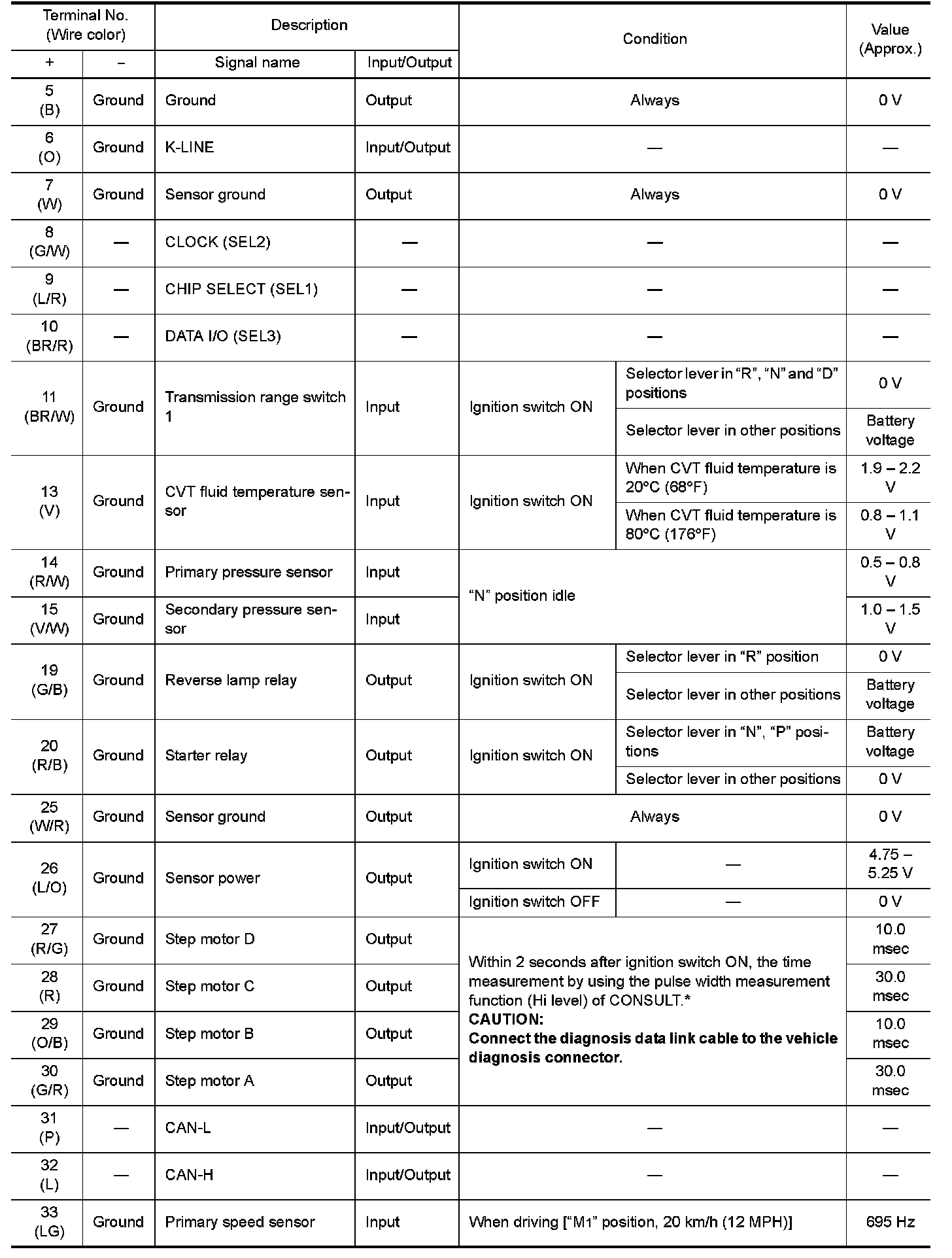

PHYSICAL VALUES
