Ground Locations




GROUND

Ground Distribution

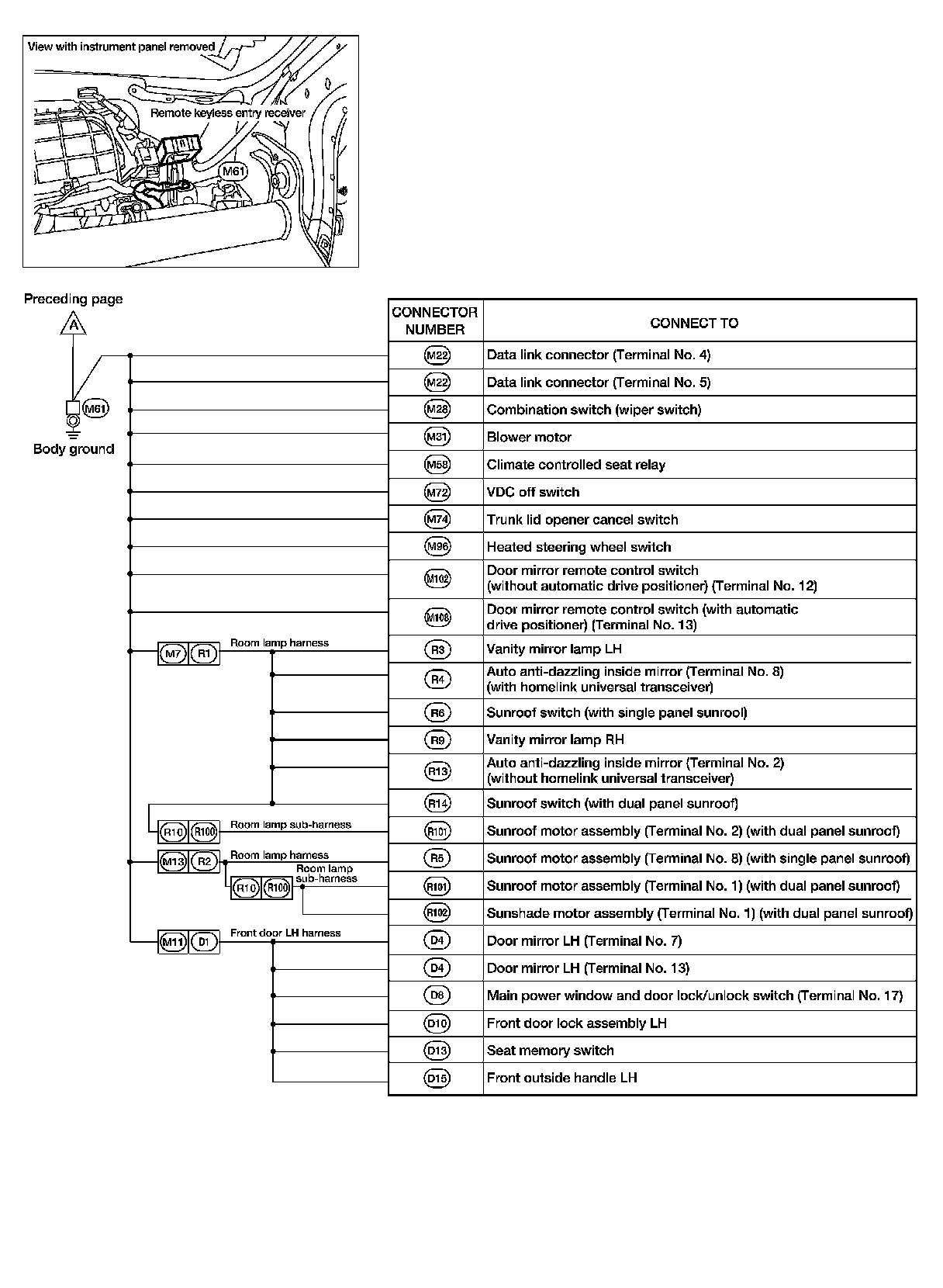

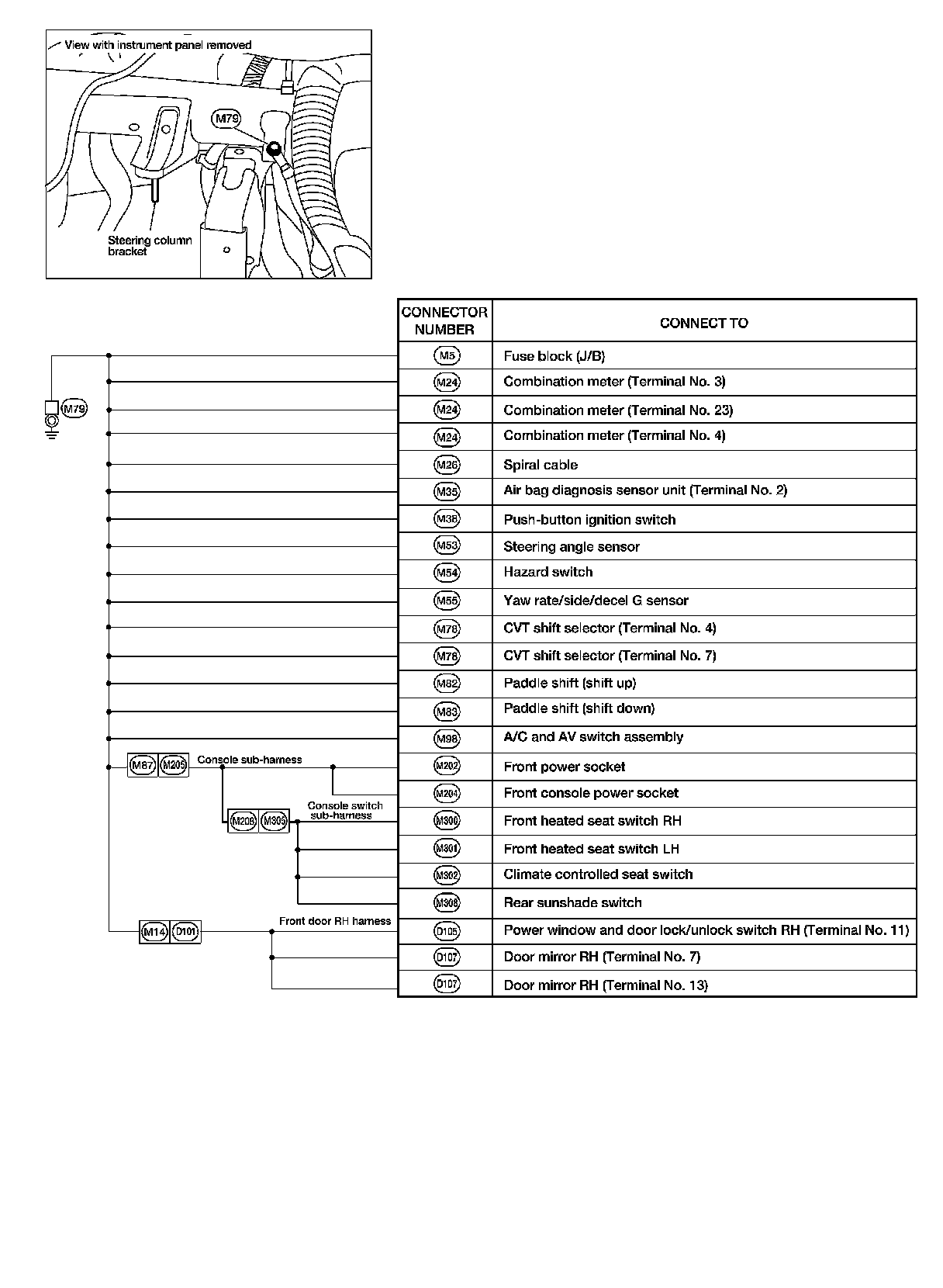

MAIN HARNESS

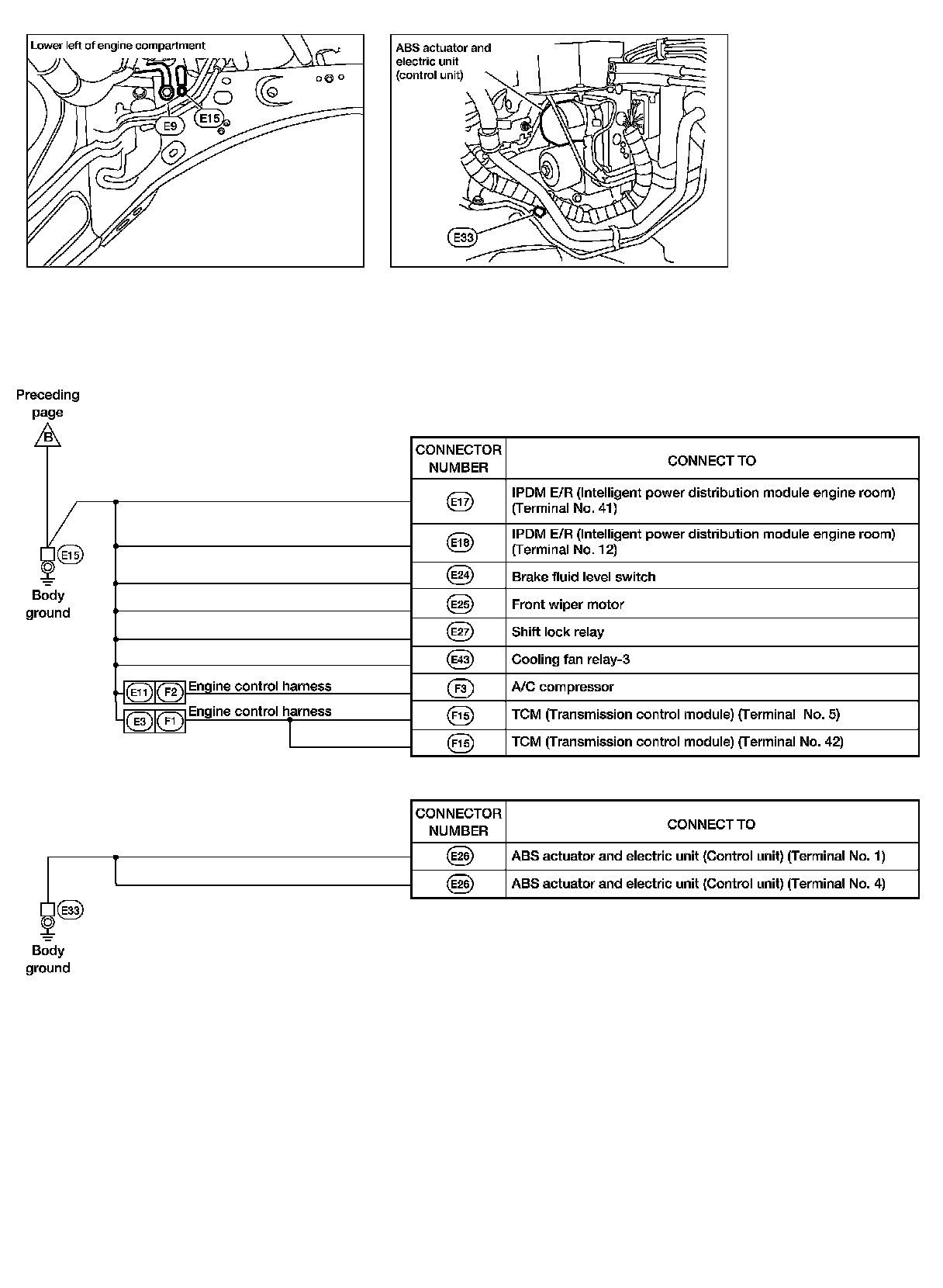

ENGINE ROOM HARNESS












FRONT END MODULE HARNESS







ENGINE CONTROL HARNESS







BODY HARNESS

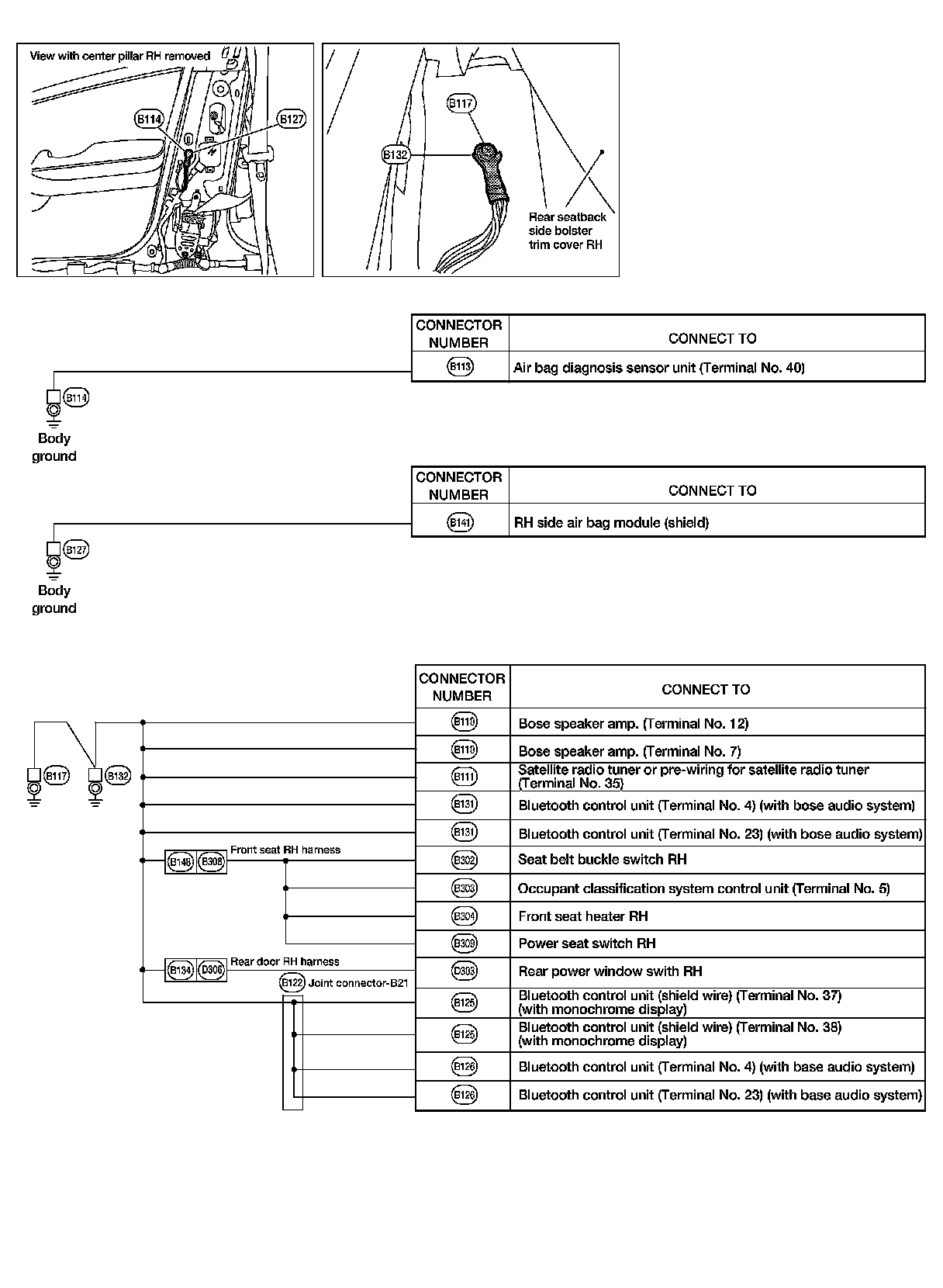

BODY NO. 2 HARNESS
