Precaution

PRECAUTIONS

Precaution

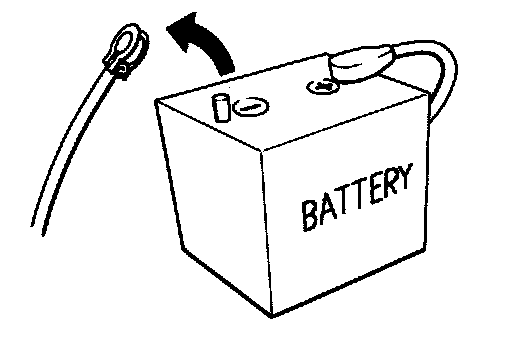

-Turn ignition switch OFF and disconnect negative battery cable before connecting or disconnecting the TCM harness connector. Because battery voltage is applied to TCM even if ignition switch is turned OFF.





-When connecting or disconnecting pin connectors into or from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin terminal, when connecting pin connectors.





-Perform TCM input/output signal inspection and check whether TCM functions normally or not before replacing TCM.
Pinout Values and Diagnostic Parameters.





-Perform "DTC Confirmation Procedure" after performing each TROUBLE DIAGNOSIS.
If the repair is completed the DTC should not be displayed in the "DTC Confirmation Procedure".
- Always use the specified brand of CVT fluid.
- Use lint-free paper, not cloth rags, during work.
- Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.
