Washer Fluid Level Switch: Service and Repair

WASHER LEVEL SWITCH

Removal and Installation


REMOVAL

1.Position the RH front fender protector back. Removal And Installation.
2.Remove the engine under cover.
3.Remove the RH front fender protector side cover. Removal And Installation.

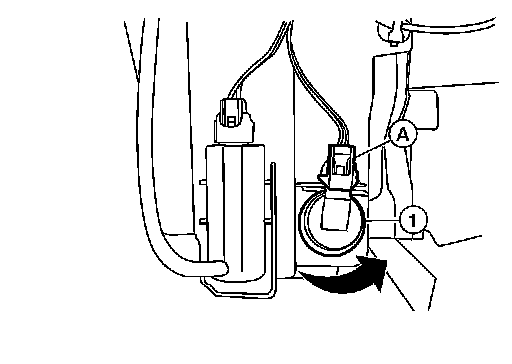

4.Disconnect the front washer level switch connector (A).
5.Rotate washer level switch (1) counter clockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.
- After installation, add Nissan specified fluid up to the upper level of washer tank inlet, and check for leaks.
