Windshield Washer Reservoir: Service and Repair

FRONT WASHER

WASHER TANK : Removal and Installation


REMOVAL

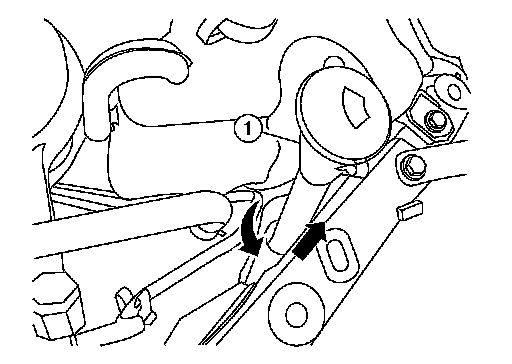

1.Remove the washer tank filler tube (1).
2.Remove RH front tire. Adjustment.
3.Position the RH fender protector back. Exploded View.
4.Remove engine undercover.
5.Remove side undercover.

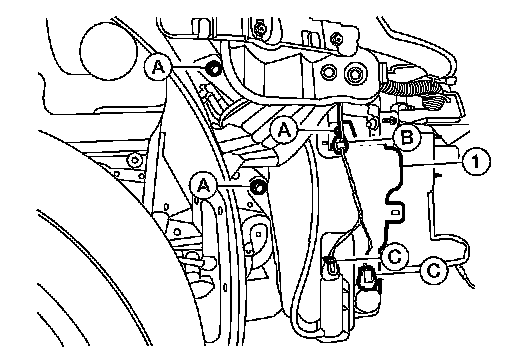

6.Disconnect the washer pump and washer fluid level sensor connectors (C), then detach the connector harness clip (B).
7.Remove the washer tank bolts (A), disconnect the washer pump hose and remove the washer tank (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
After installation, add Nissan specified fluid up to the upper level of washer tank inlet, and check for leaks.
