Windshield Washer Spray Nozzle: Service and Repair

FRONT WASHER

FRONT WASHER NOZZLE : Removal and Installation


REMOVAL

1.Remove the cowl top grille. Removal And Installation.

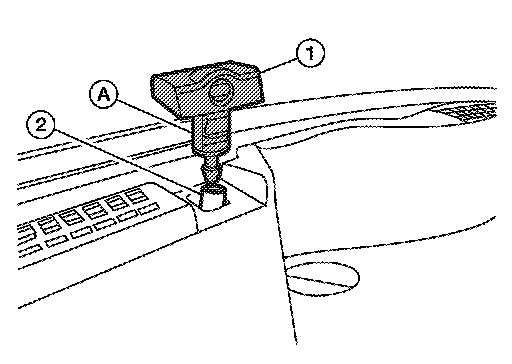

2.Push washer nozzle tab (A) to release the washer nozzle (1)
from the cowl top grille, then disconnect the washer nozzle hose (2).

INSTALLATION

Installation is in the reverse order of removal.
- Adjust nozzle spray location. Adjustments.
