Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Sentra L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
Steering
TROUBLE DIAGNOSIS

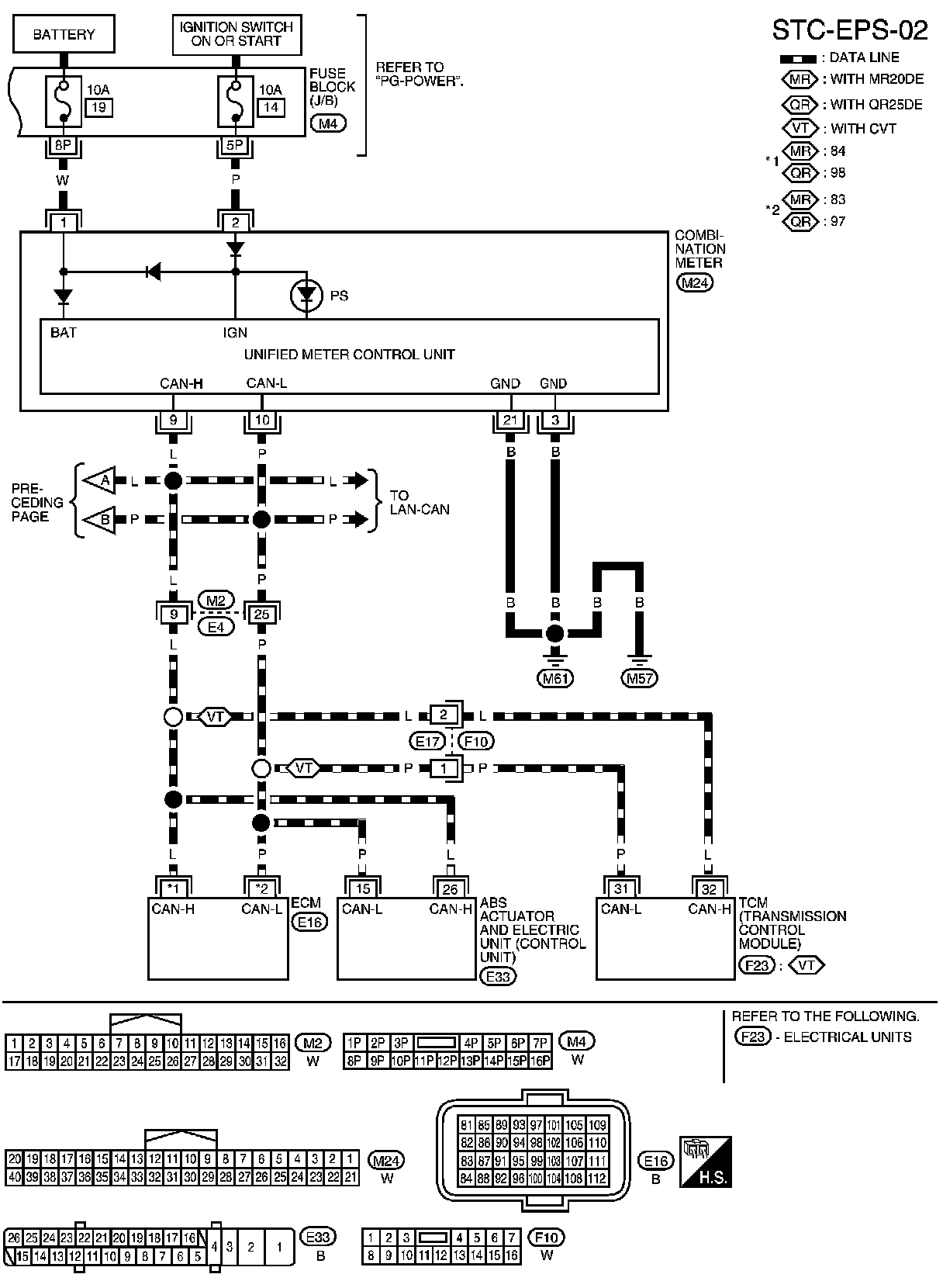

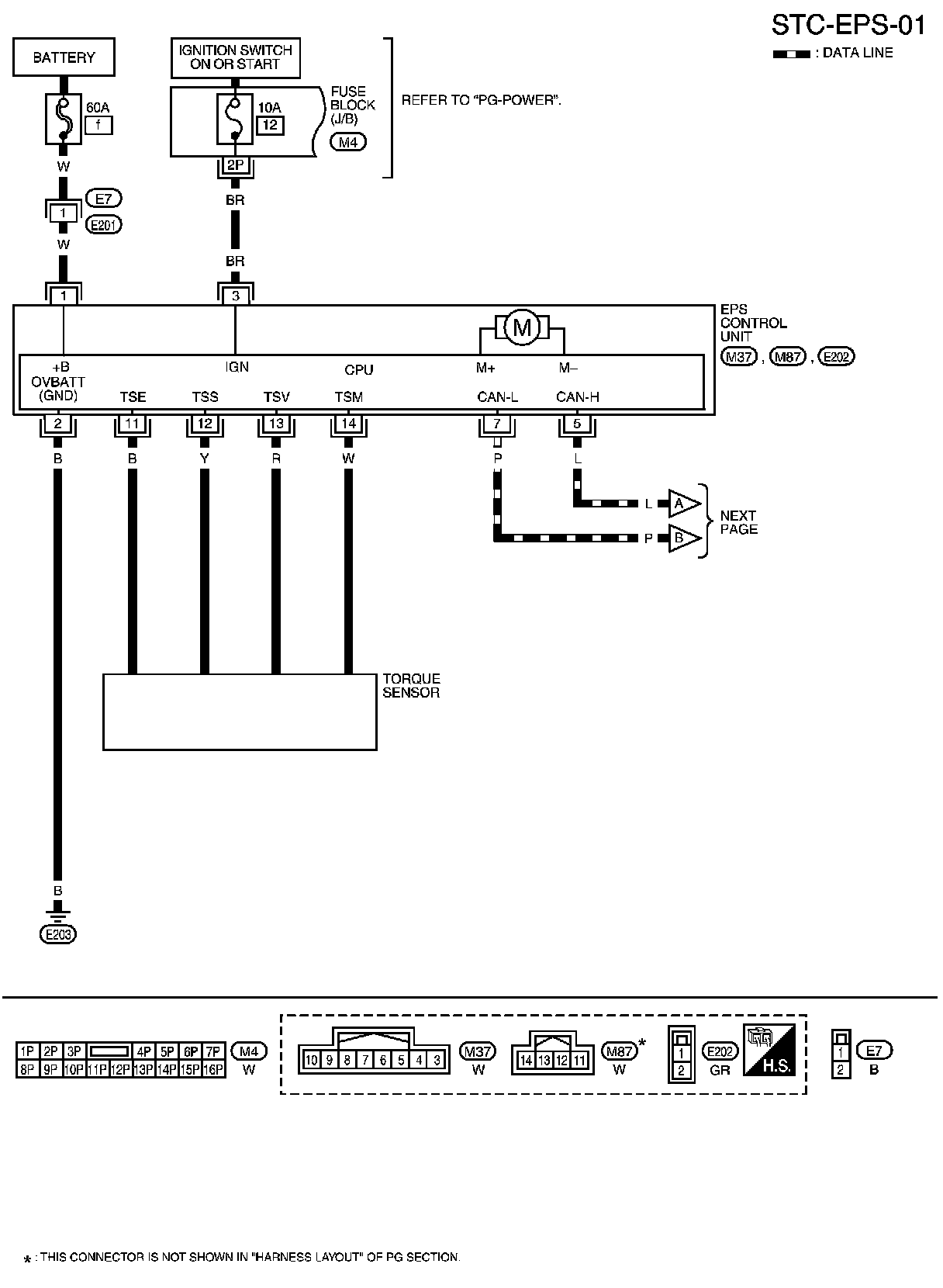

Wiring Diagram - EPS
