Trunk / Liftgate
TRUNK LID OPENER

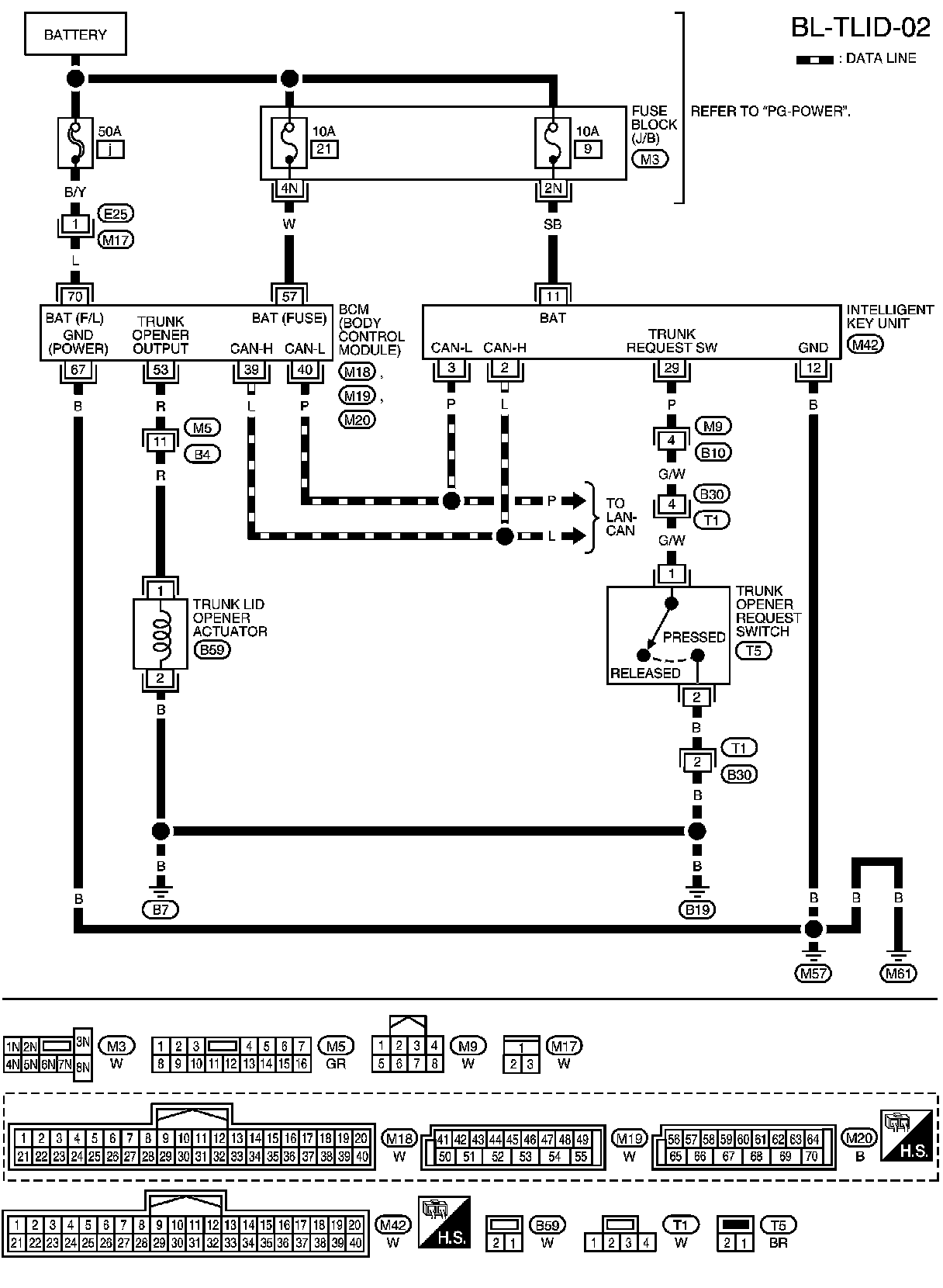

Wiring Diagram - TLID
WITHOUT INTELLIGENT KEY
WITH INTELLIGENT KEY
