Blower Motor: Service and Repair

FRONT BLOWER MOTOR

Removal and Installation


REMOVAL

1.Remove the instrument panel. Removal And Installation.

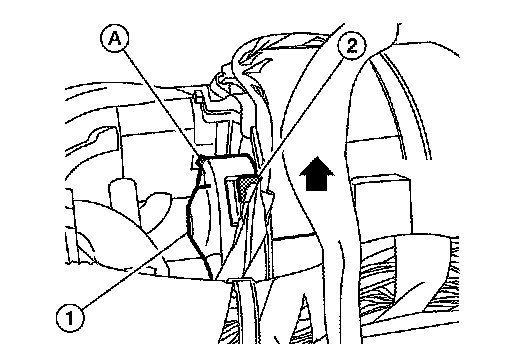

2.Disconnect the front blower motor connector (2).
3.Remove the one screw (A) from the front blower motor (1).
4.Turn the front blower motor (1) counterclockwise and remove it.
-White arrow indicates : Front

INSTALLATION

Installation is in the reverse order of removal.
