Manual Air Conditioner




TROUBLE DIAGNOSIS

Component Parts and Harness Connector Location

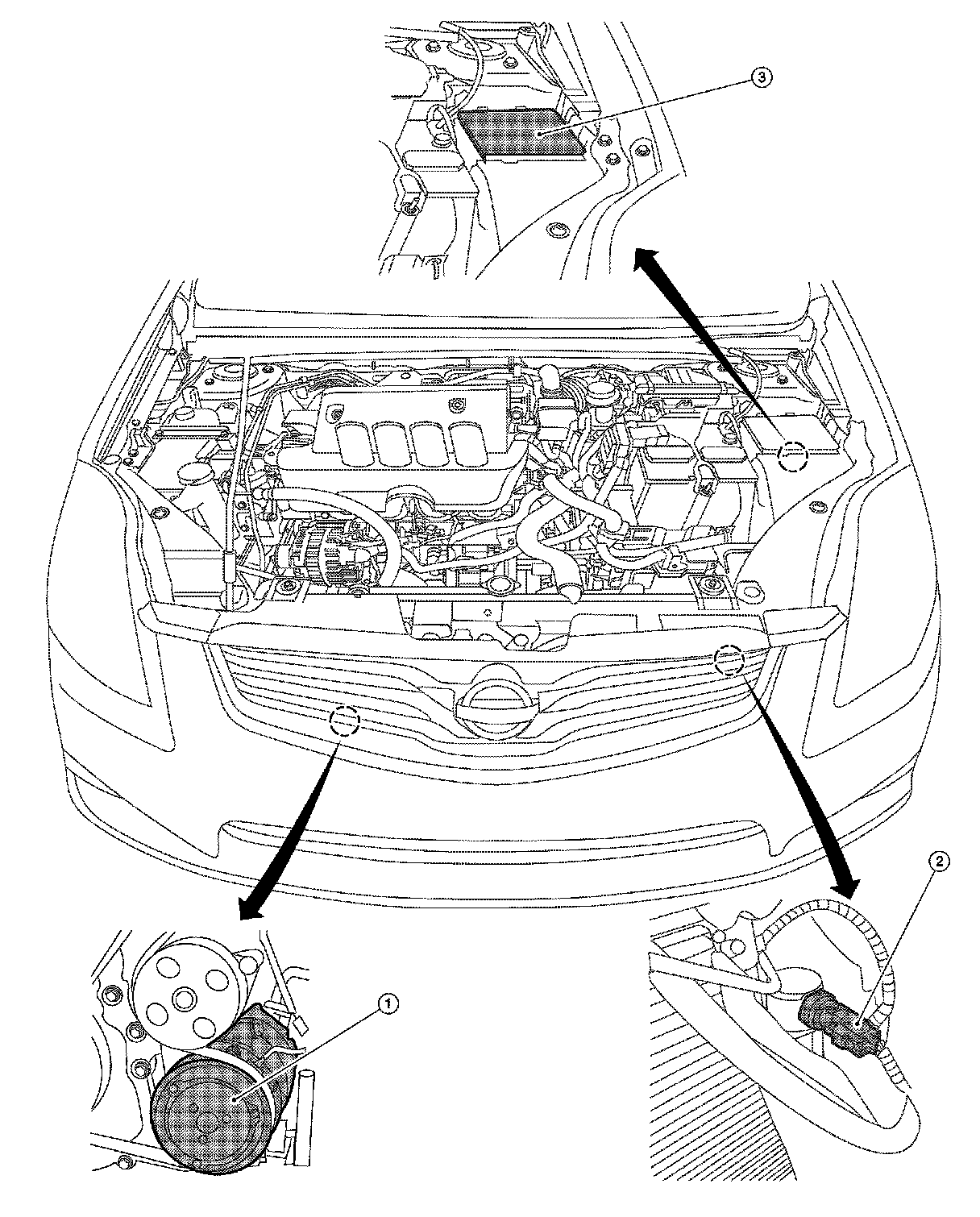

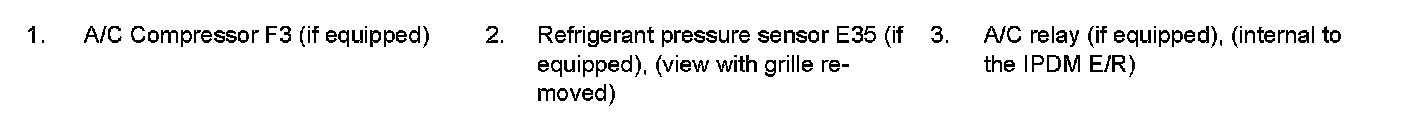

ENGINE COMPARTMENT - QR25DE

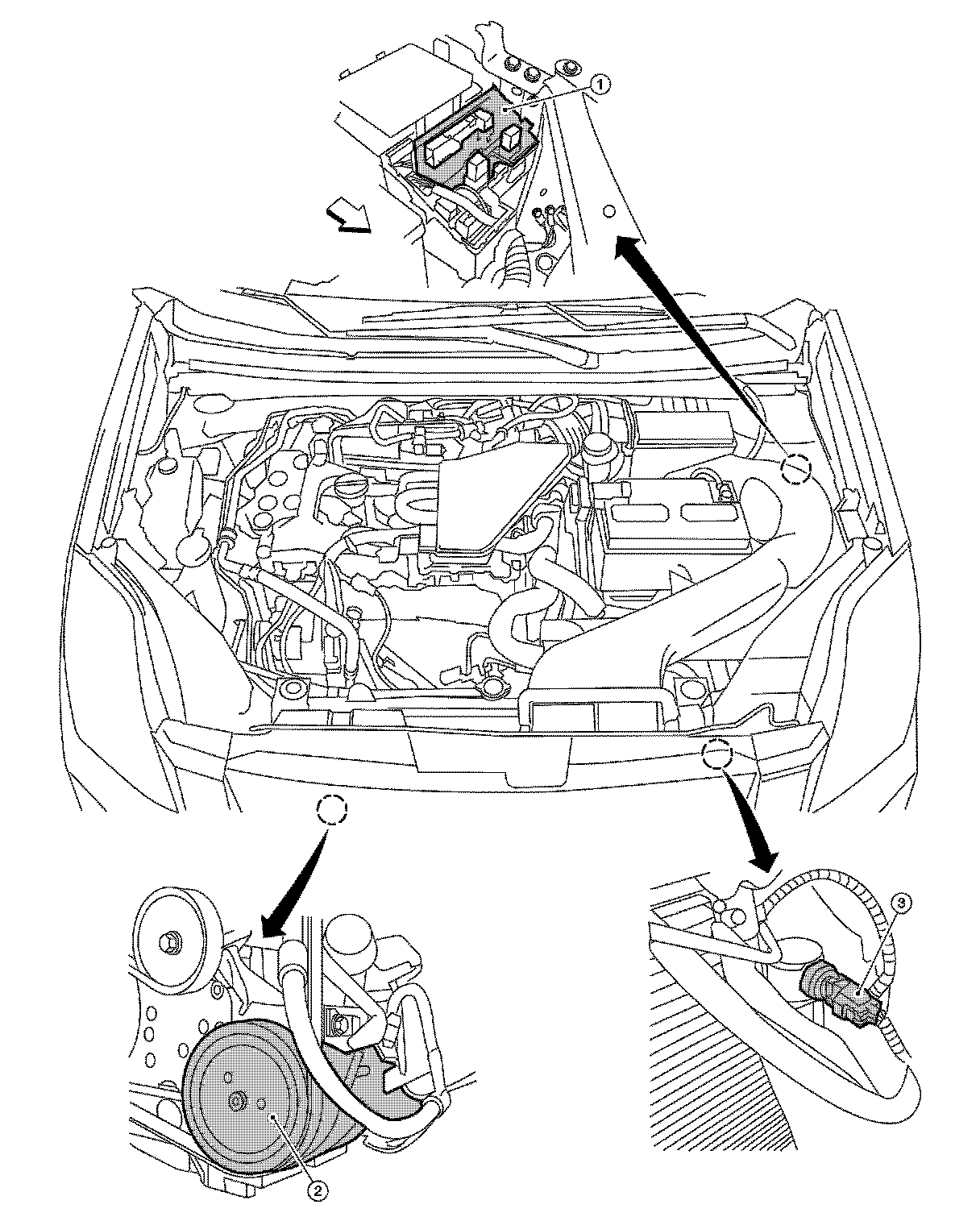

ENGINE COMPARTMENT - MR20DE

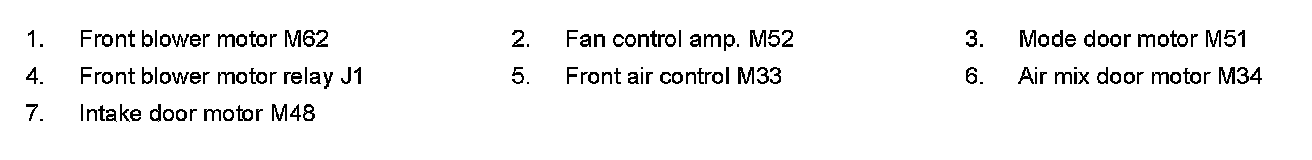

PASSENGER COMPARTMENT
