Windshield Washer Spray Nozzle: Service and Repair

FRONT WIPER AND WASHER SYSTEM

Removal and Installation of Front Washer Nozzle


REMOVAL

1.Remove cowl top cover. Service and Repair.
2.Remove washer tube.

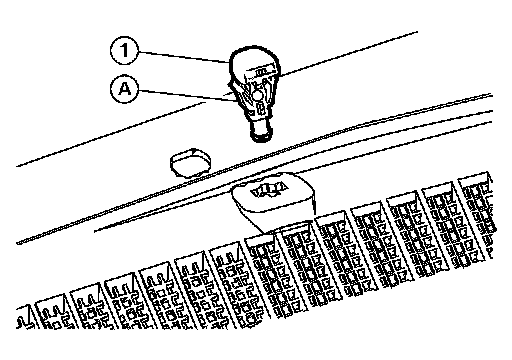

3.While pressing pawl (A) on the reverse side of front washer nozzle (1), remove front washer nozzle (1) from cowl top cover.

INSTALLATION

Installation is in the reverse order of removal.
