Continuously Variable Transmission/Transaxle, CVT
>>
Shift Indicator - CVT
Shift Indicator - CVT
CVT INDICATOR

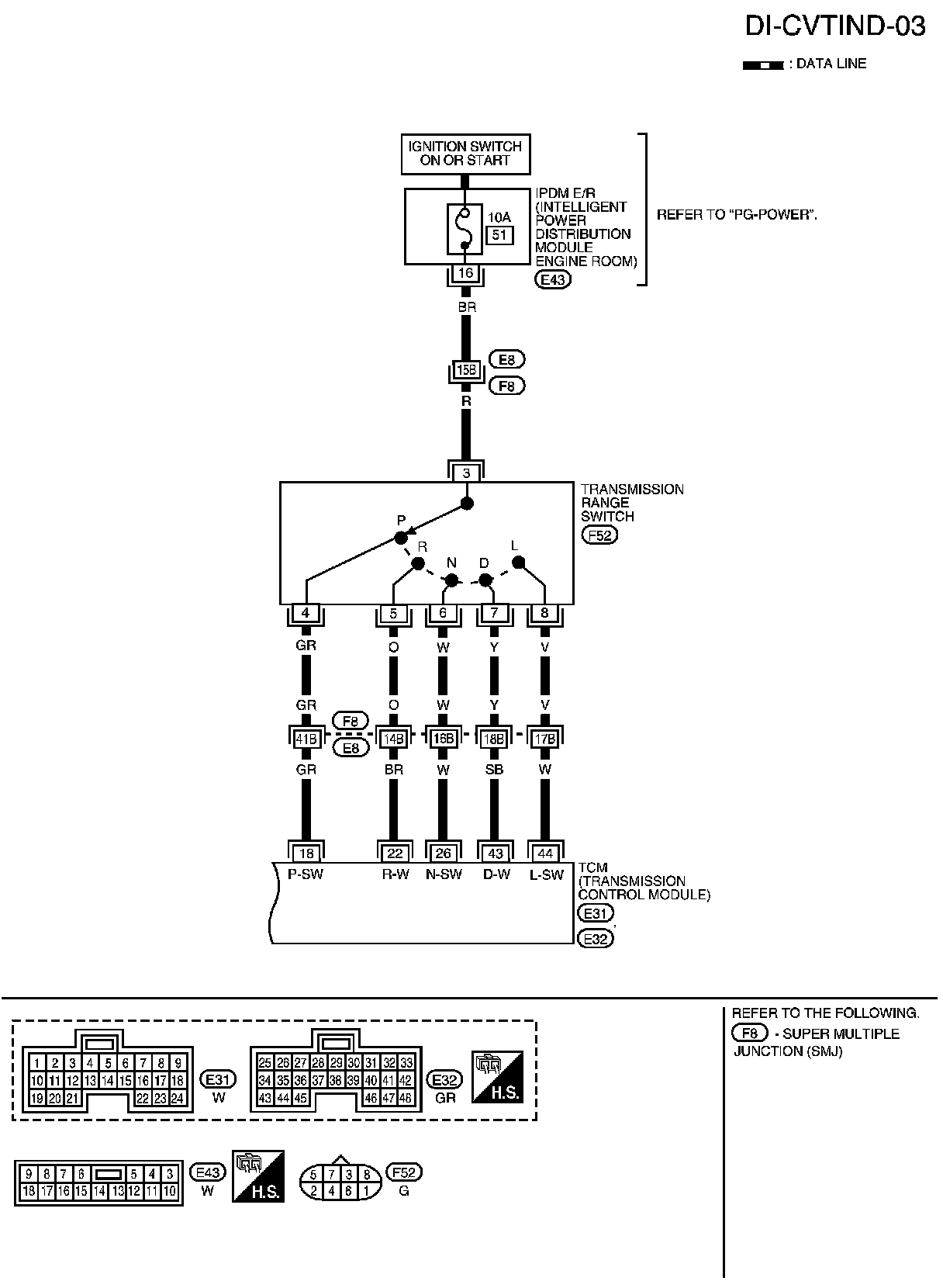

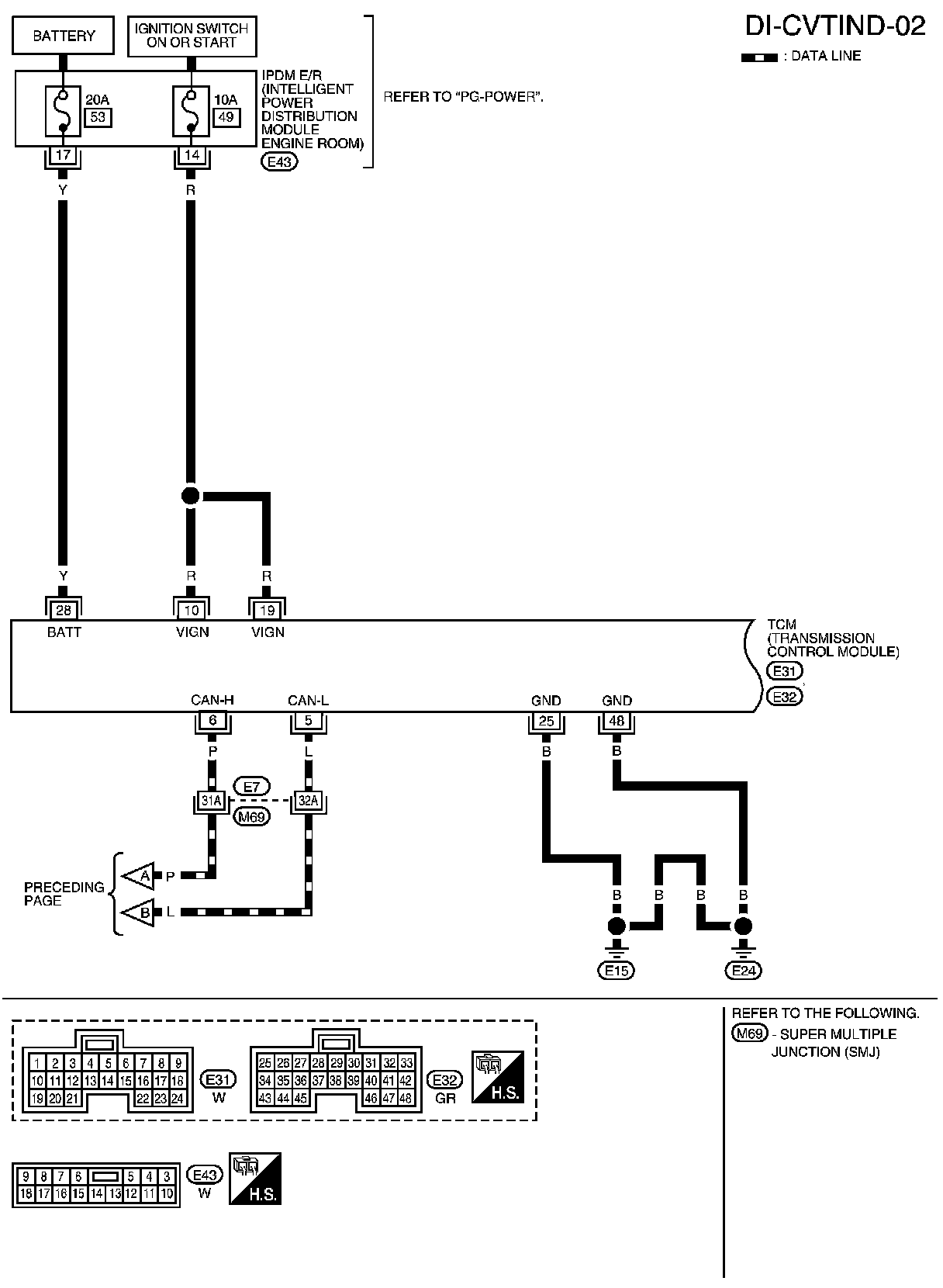

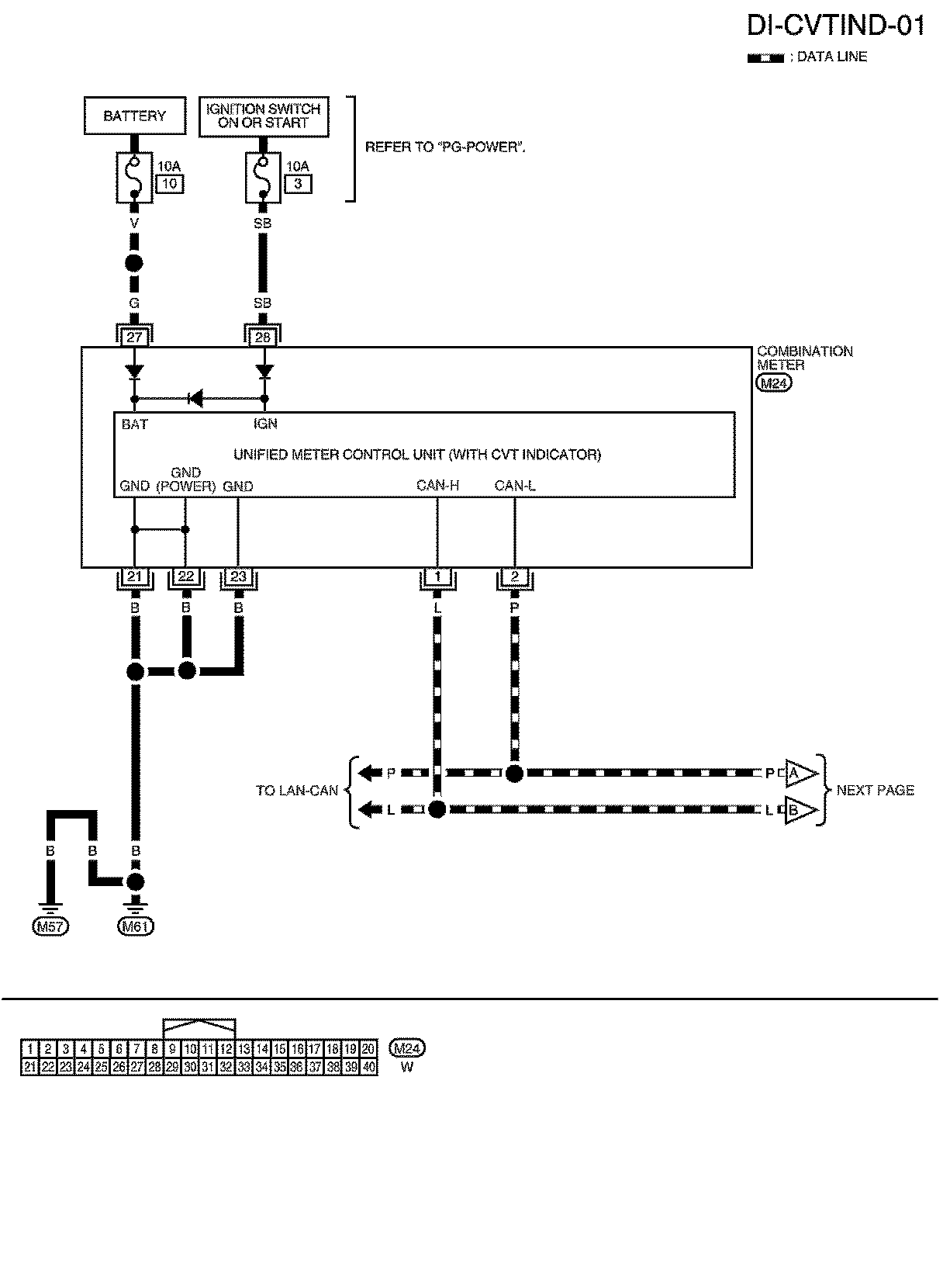

Wiring Diagram - CVTIND
