Center Mounted Brake Lamp: Service and Repair




STOP LAMP

Removal and Installation (High-Mounted Stop Lamp)


HIGH-MOUNTED STOP LAMP

Removal
1.Remove the back door finisher upper. .
2.Disconnect the high-mounted stop lamp connector.

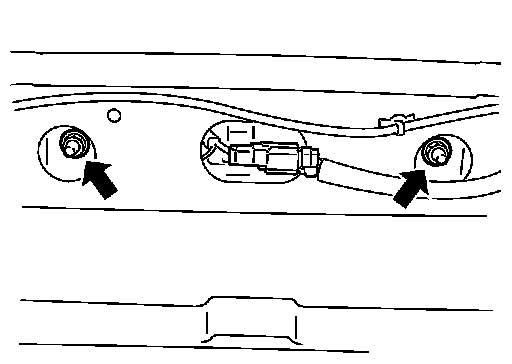

3.Remove the nuts and remove the high-mounted stop lamp from rear hatch.
Installation
Installation is in the reverse order of removal.

CAUTION:
Properly seal the high-mounted stop lamp base to the rear hatch to prevent water leaks.
