Crankshaft Main Bearing

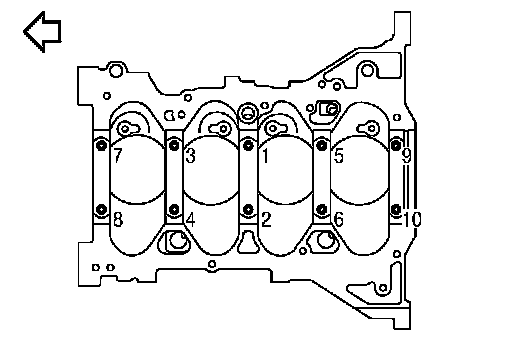

Tighten main bearing cap bolts in two steps in numerical order as shown.
Step 1: 34.3 Nm (3.5 kg-m, 25 ft-lb)
Step 2: 60� clockwise



MAIN BEARING










Undersize






Bearing Oil Clearance
