A/C - Water Leaks Onto Driver's/Passenger's Floor: Overview

Classification: HA08-004B

Reference: NTB08-101B

Date: August 28, 2012

2007-2012 VERSA HATCHBACK / 2007-2011 VERSA SEDAN;
DRIVERS AND/OR PASSENGER FLOOR CARPET WET

This bulletin has been amended to update the Applied Vehicles. Please discard previous versions of this bulletin.

APPLIED VEHICLES: 2007 - 2012 Versa Hatchback (C11)
2007 - 2011 Versa Sedan (C11)

APPLIED VINs and DATES: 2007 - 2011; all VINs all dates.
2012 Vehicles built before:

3N1BC1CP(*)CL 373405 / January 20, 2012

or

3N1BC1CP(*)CK 239737 / January 26, 2012

IF YOU CONFIRM

^ The front floor carpet is wet.

And

^ There is no water entry into the vehicle from outside the vehicle.

ACTION

Perform steps 1-8 of the Service Procedure in this bulletin to check if water is draining into the vehicle from the A/C evaporator case.

If you determine this bulletin applies, install a drain hose extension over the existing A/C evaporator drain.

^ See this Service Procedure for instructions on cutting and installing the modified hose.

IMPORTANT:
The purpose of "ACTION" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing the repair.

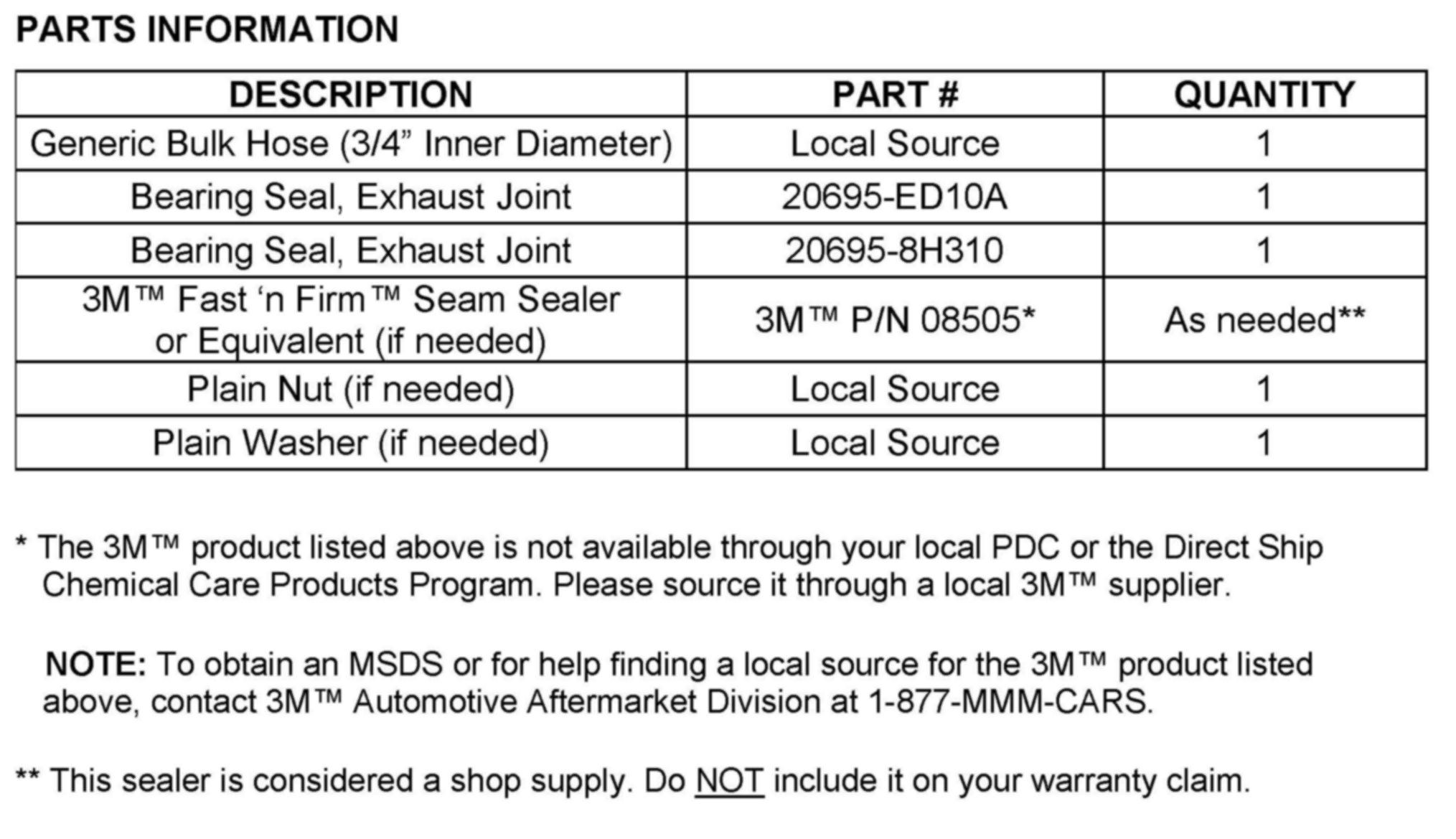

PARTS INFORMATION





CLAIMS INFORMATION
