Home >> Nissan-Datsun >> 2013 >> Cube L4-1.8L (MR18DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment





Wheel Alignment Specifications (Unladen)

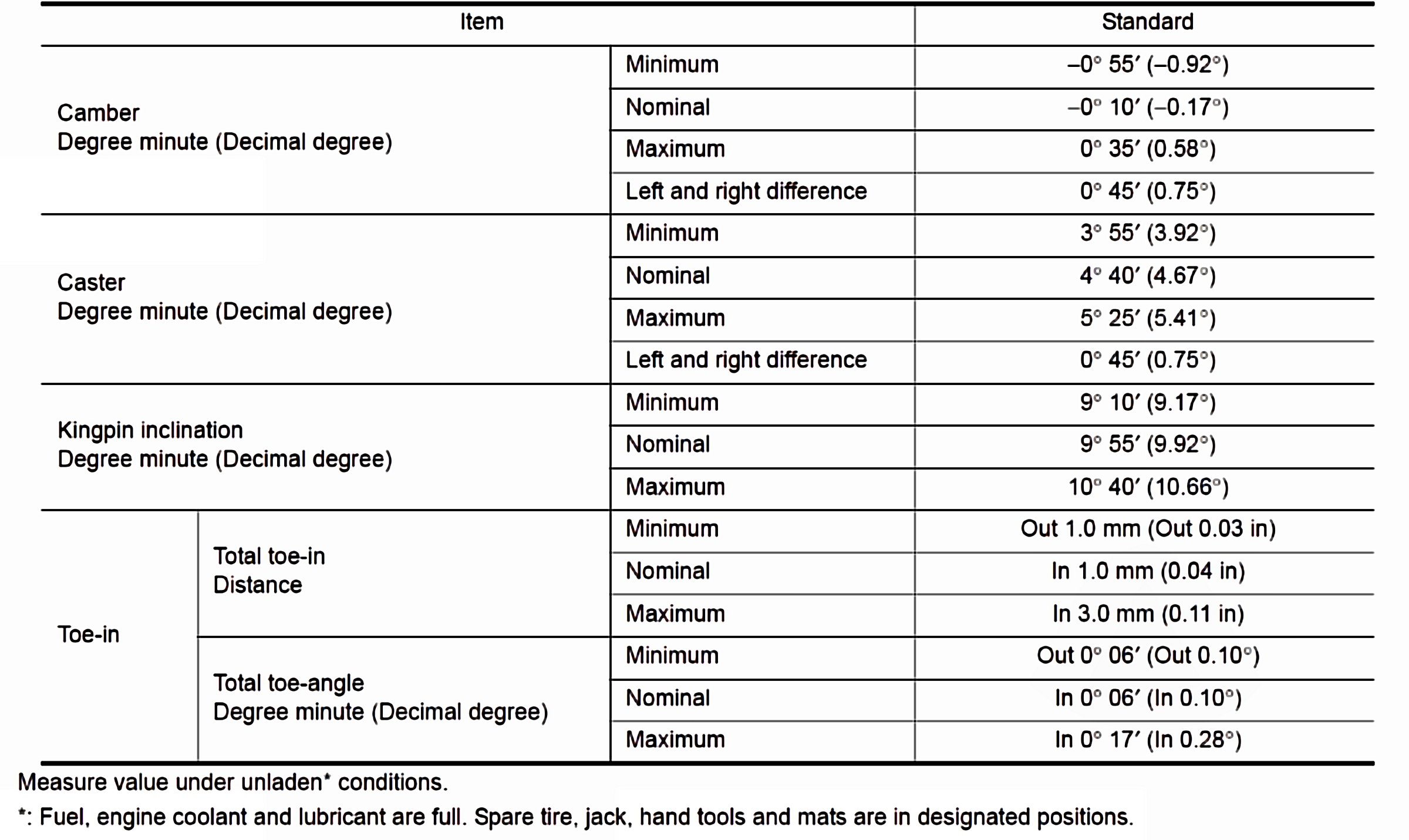

Front Alignment:





Wheel Angle:

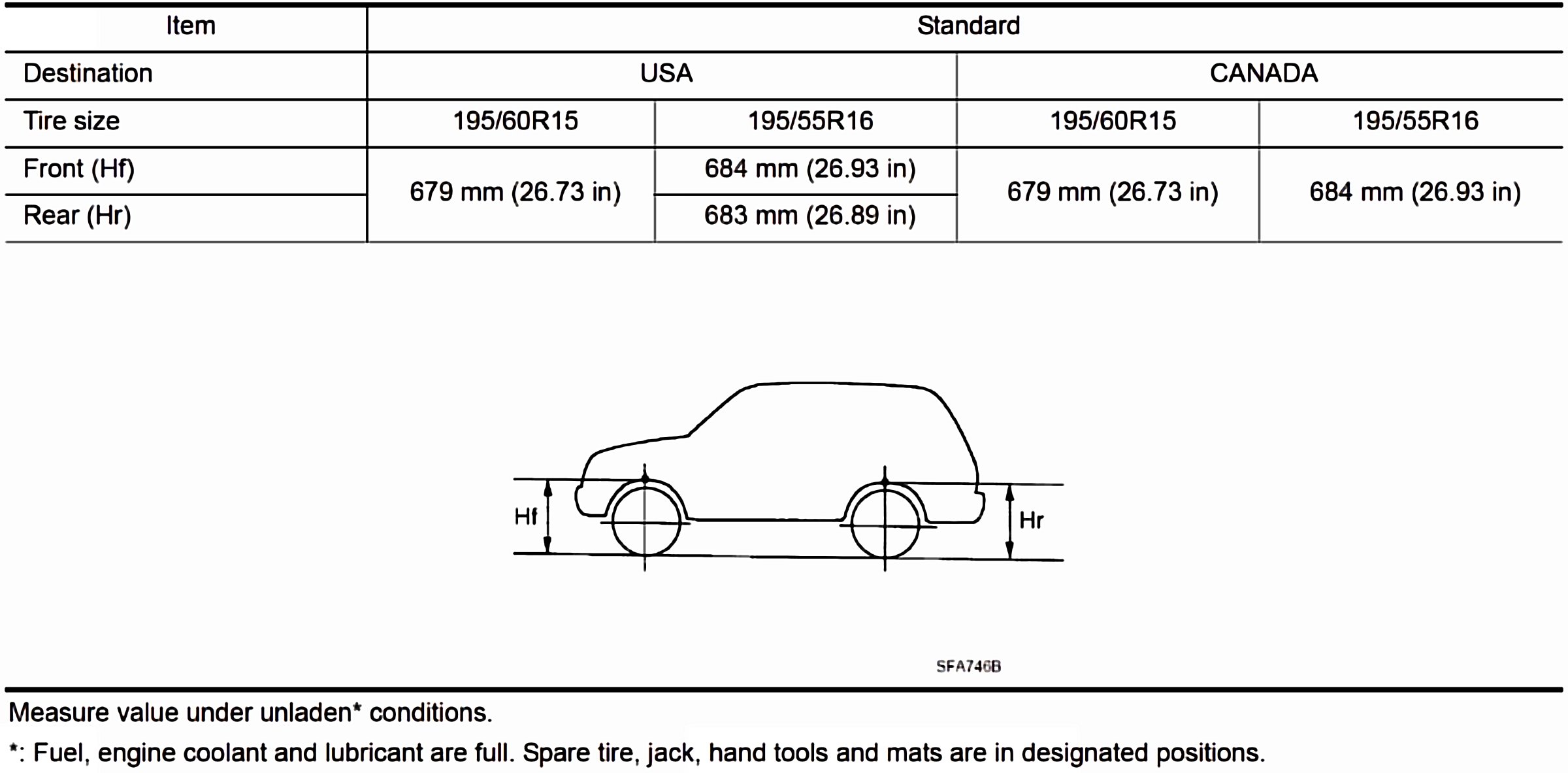

Wheelarch Height:

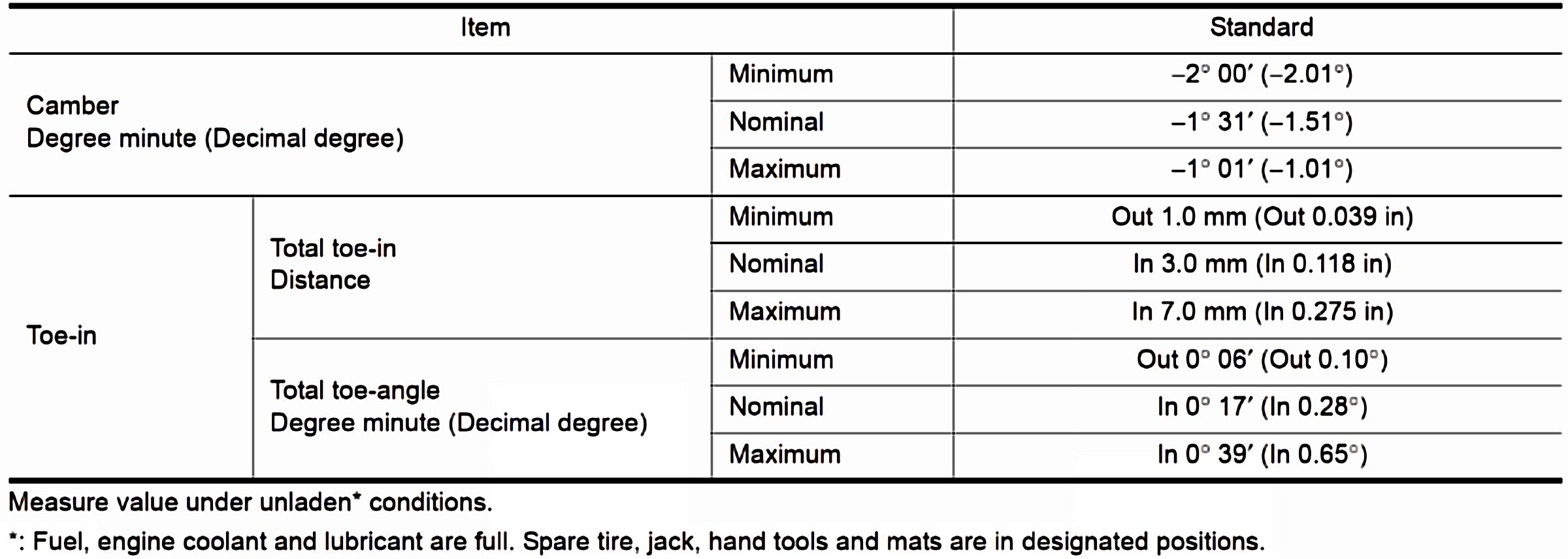

Rear Alignment:
