Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER

Removal and Installation


REMOVAL

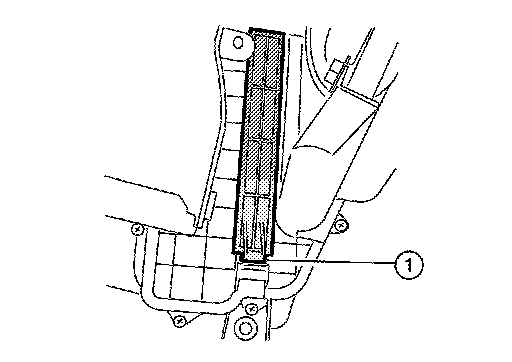

1. Disengage the filter cover tab (1) by pushing up and pull out to remove the filter cover.
2. Remove the in-cabin microfilter from the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
