Specifications
>>
Mechanical Specifications
>>
Alignment
Alignment
Wheel Alignment Specifications (Unladen)
Front Camber, Caster and Kingpin Offset:

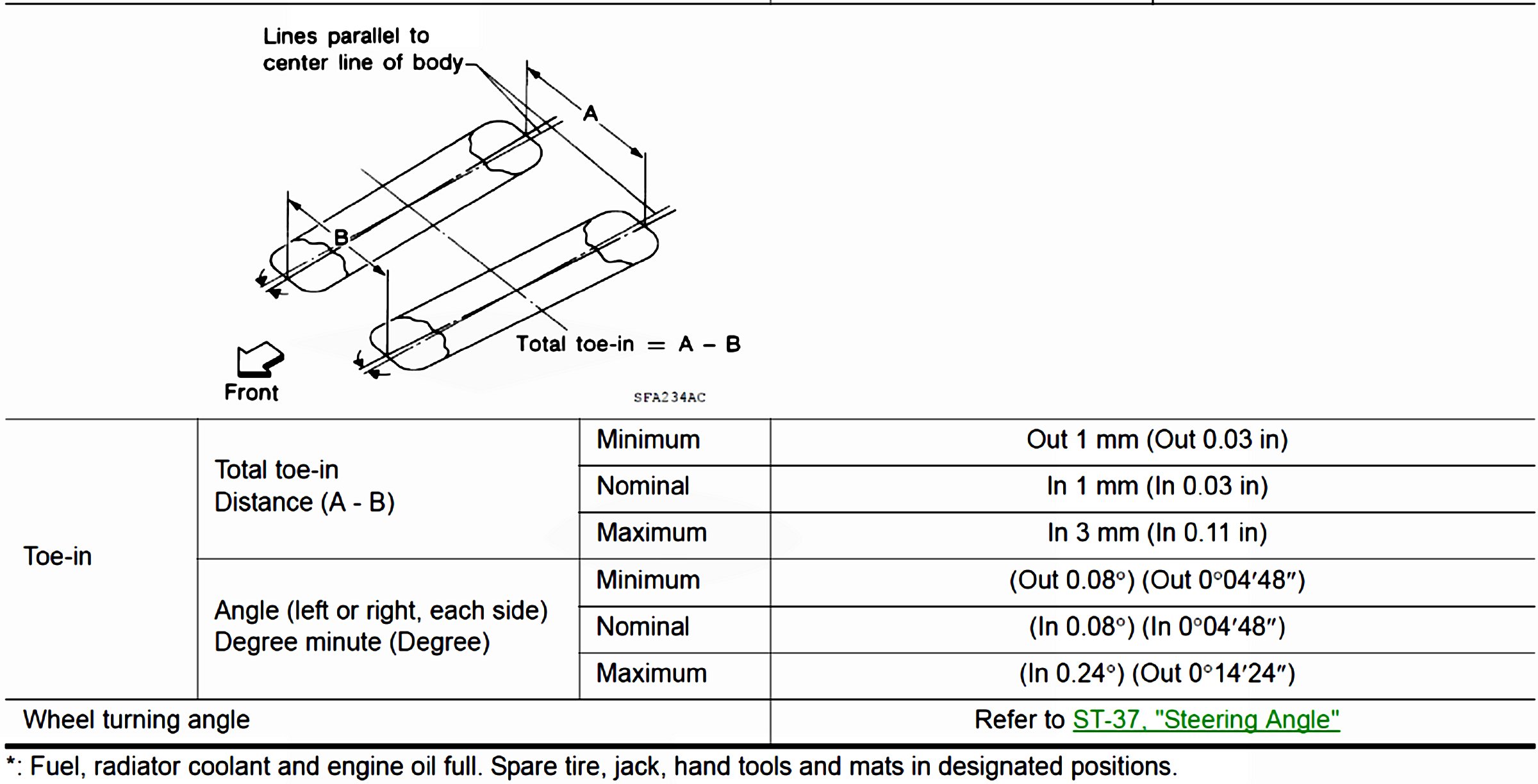

Front Toe-in:

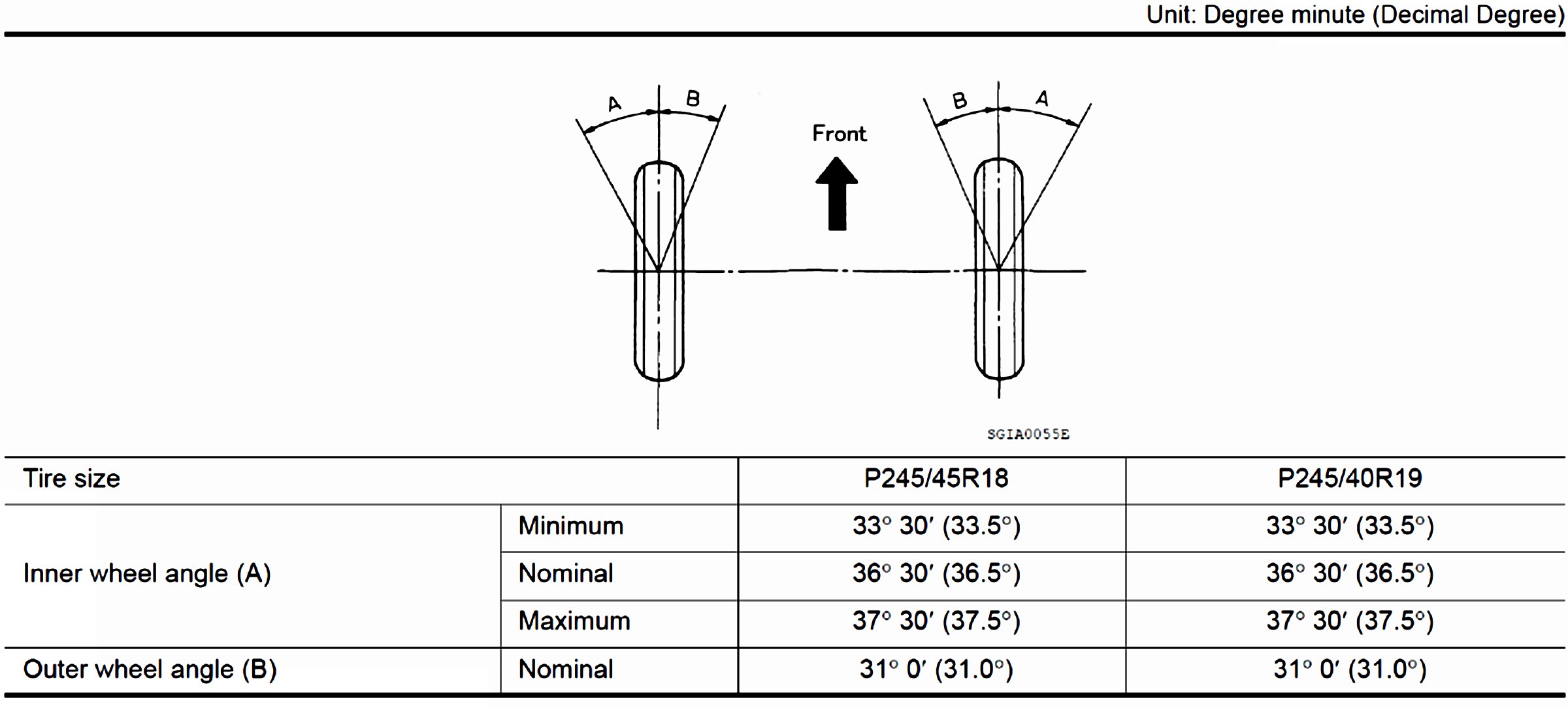

Steering Angle:

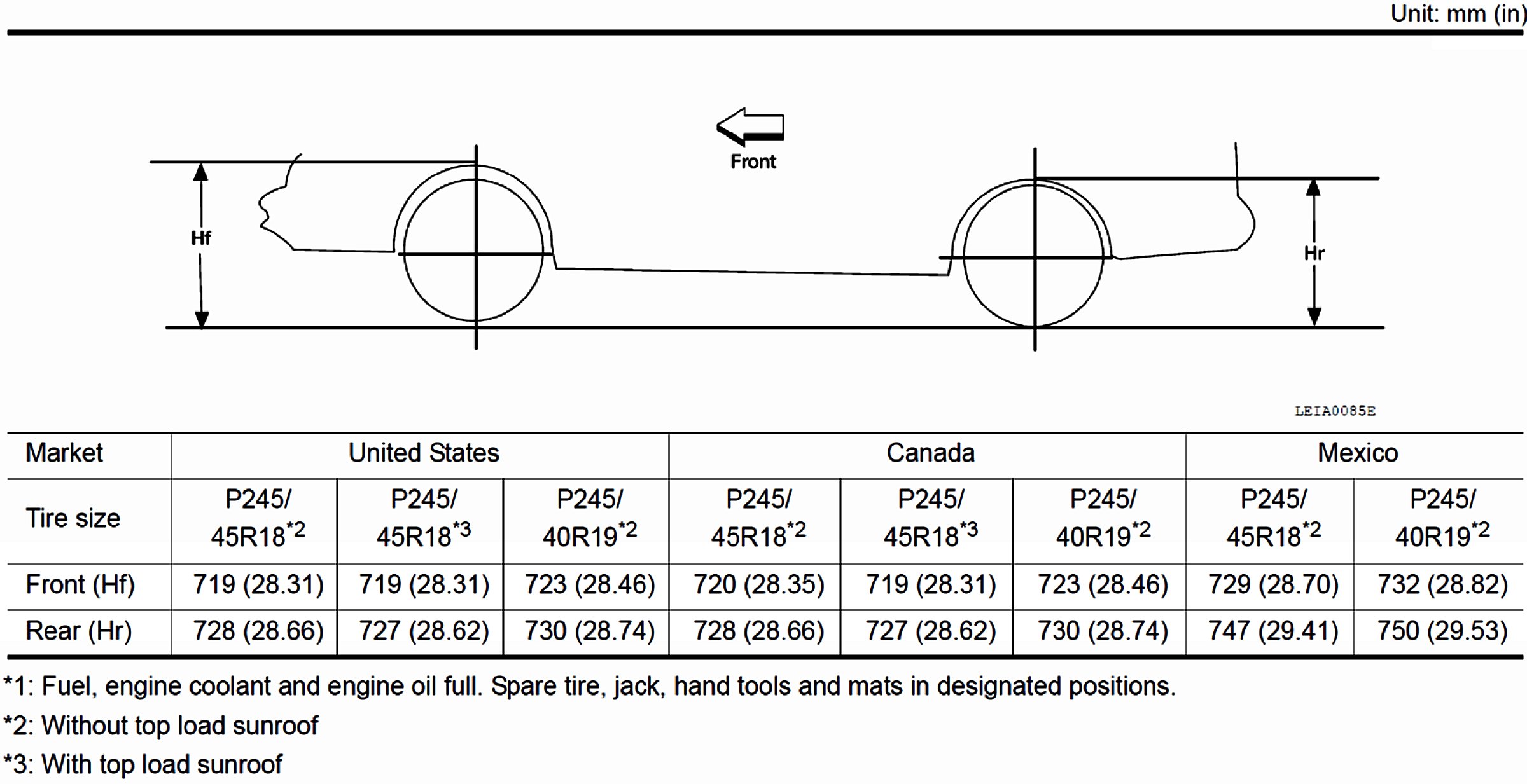

Wheelarch Height:
Rear Camber and Toe-in:
