Alignment





Wheel Alignment Specifications (Unladen)

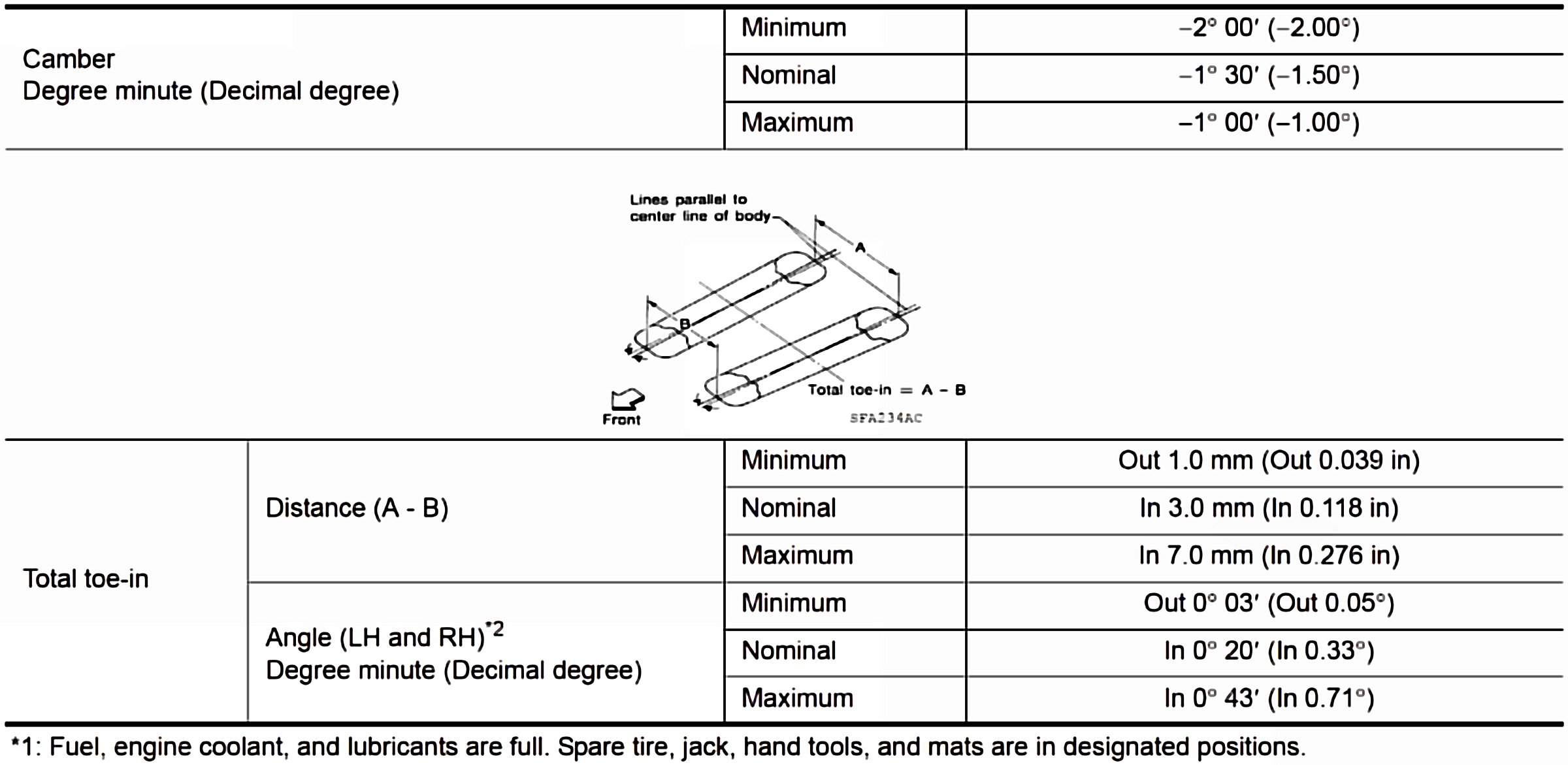

Front Alignment - USA and Canada:





Steering Angle:

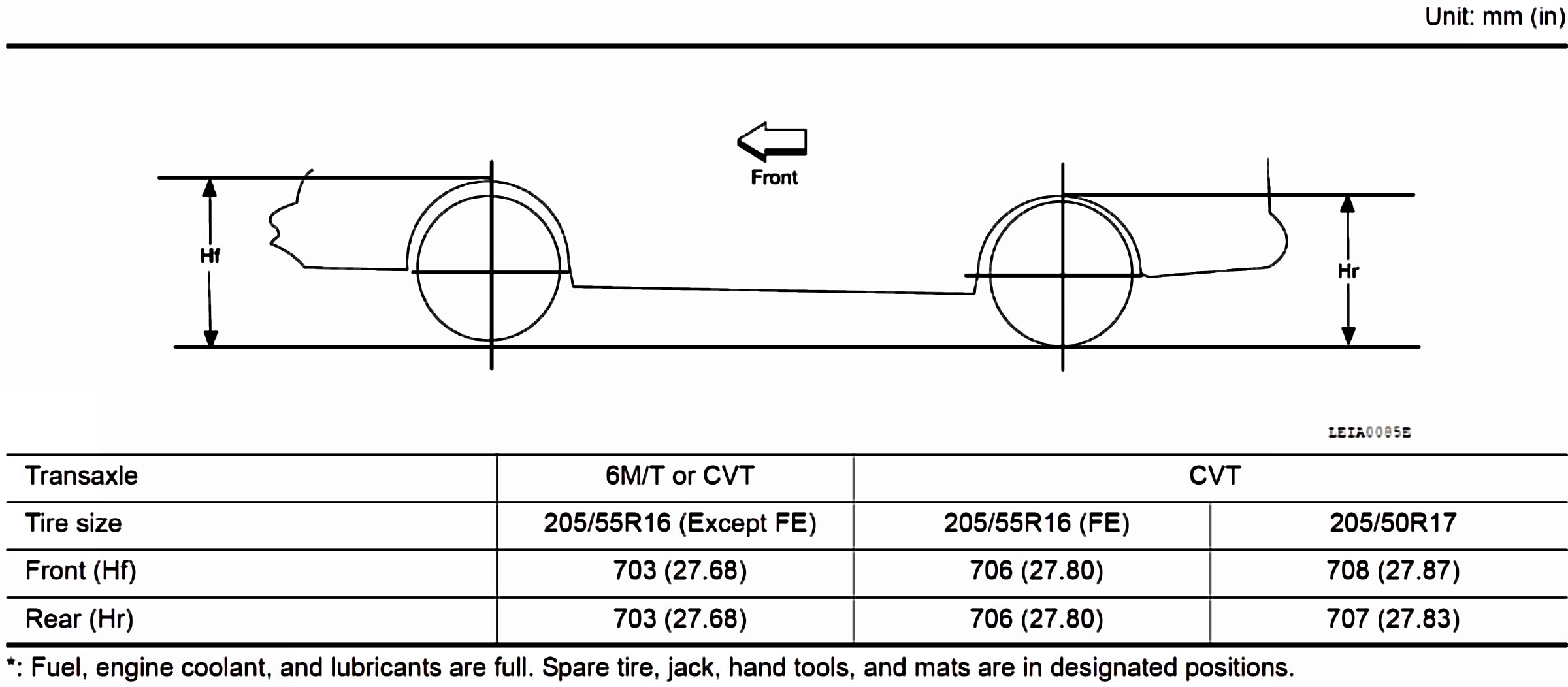

Wheelarch Height - USA:

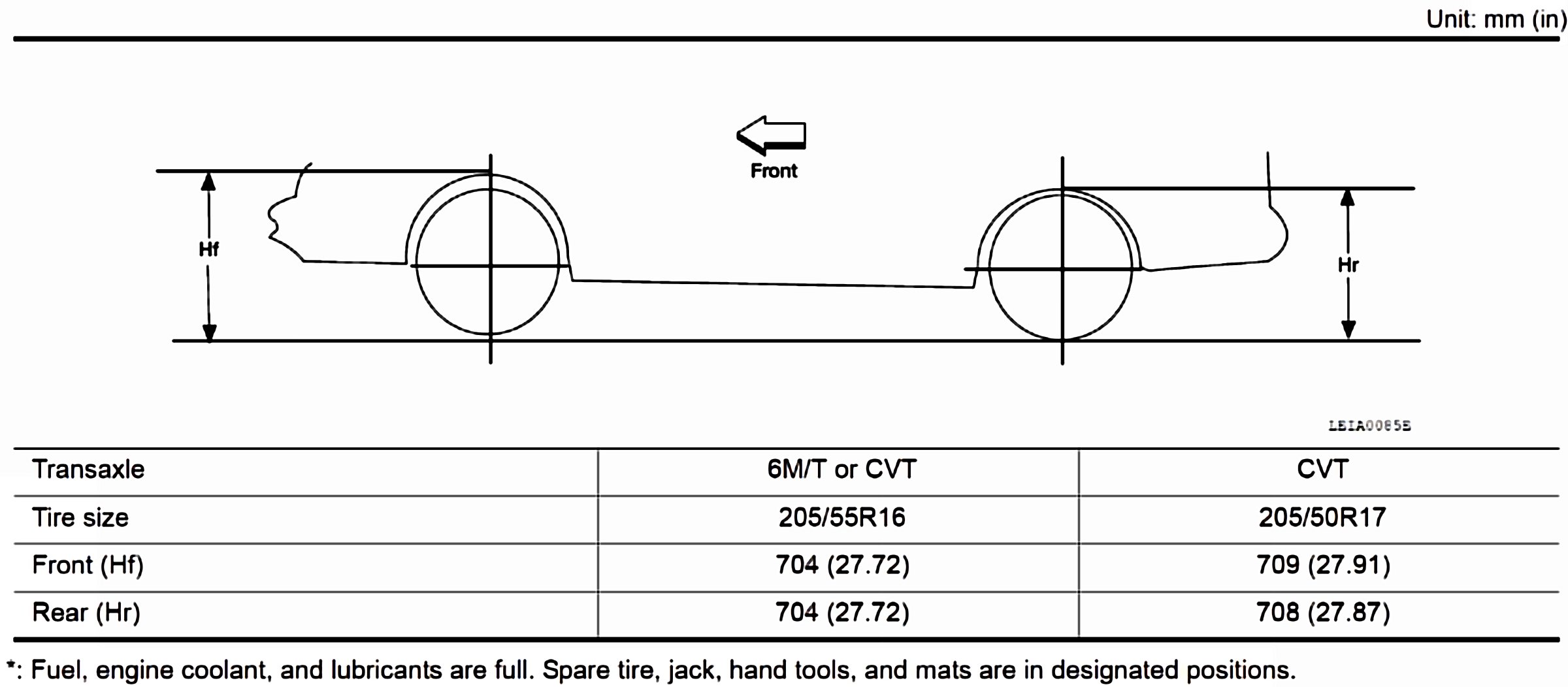

Wheelarch Height - Canada:

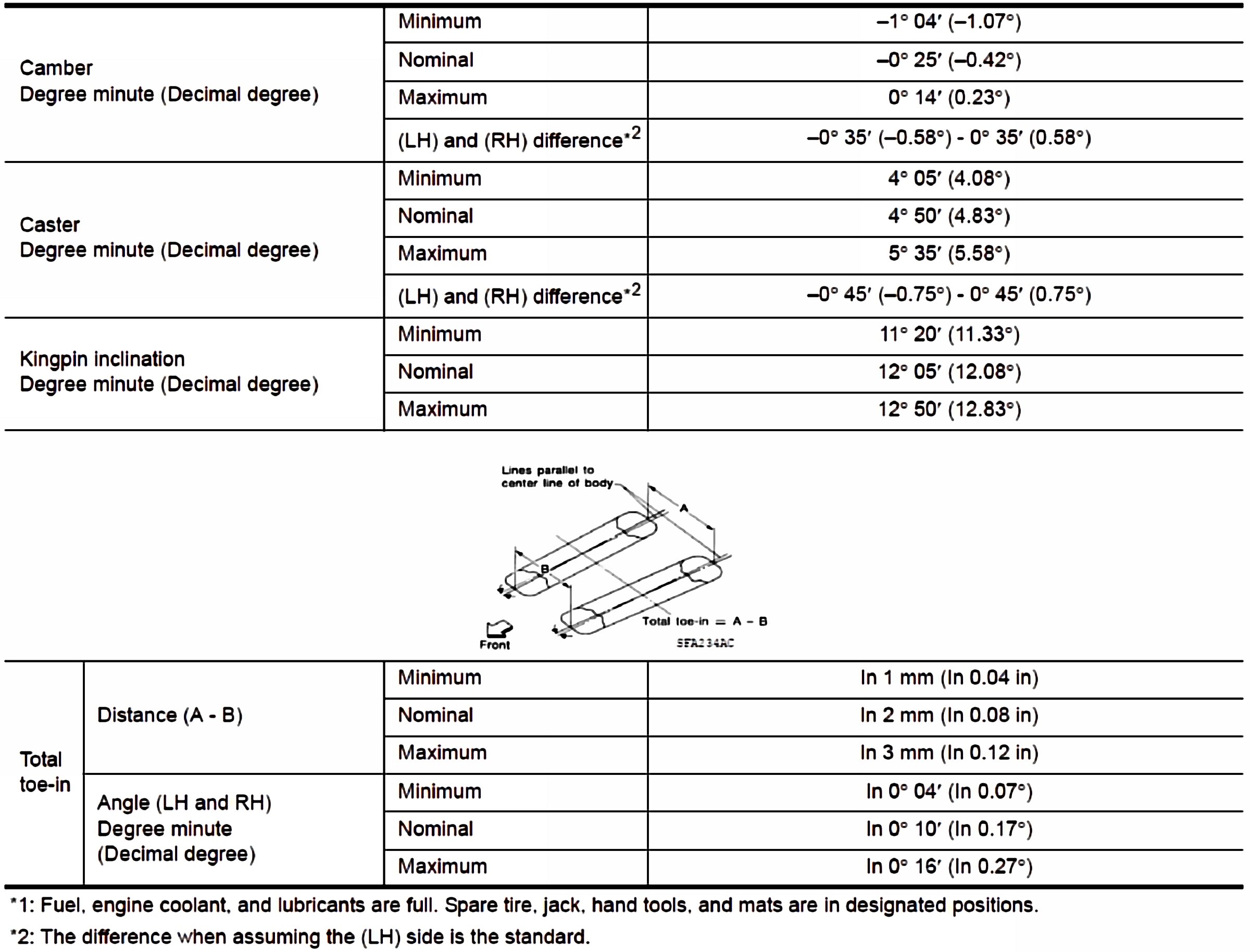

Rear Alignment:
