Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1982
>>
Delta 88 V8-307 5.0L VIN Y 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>

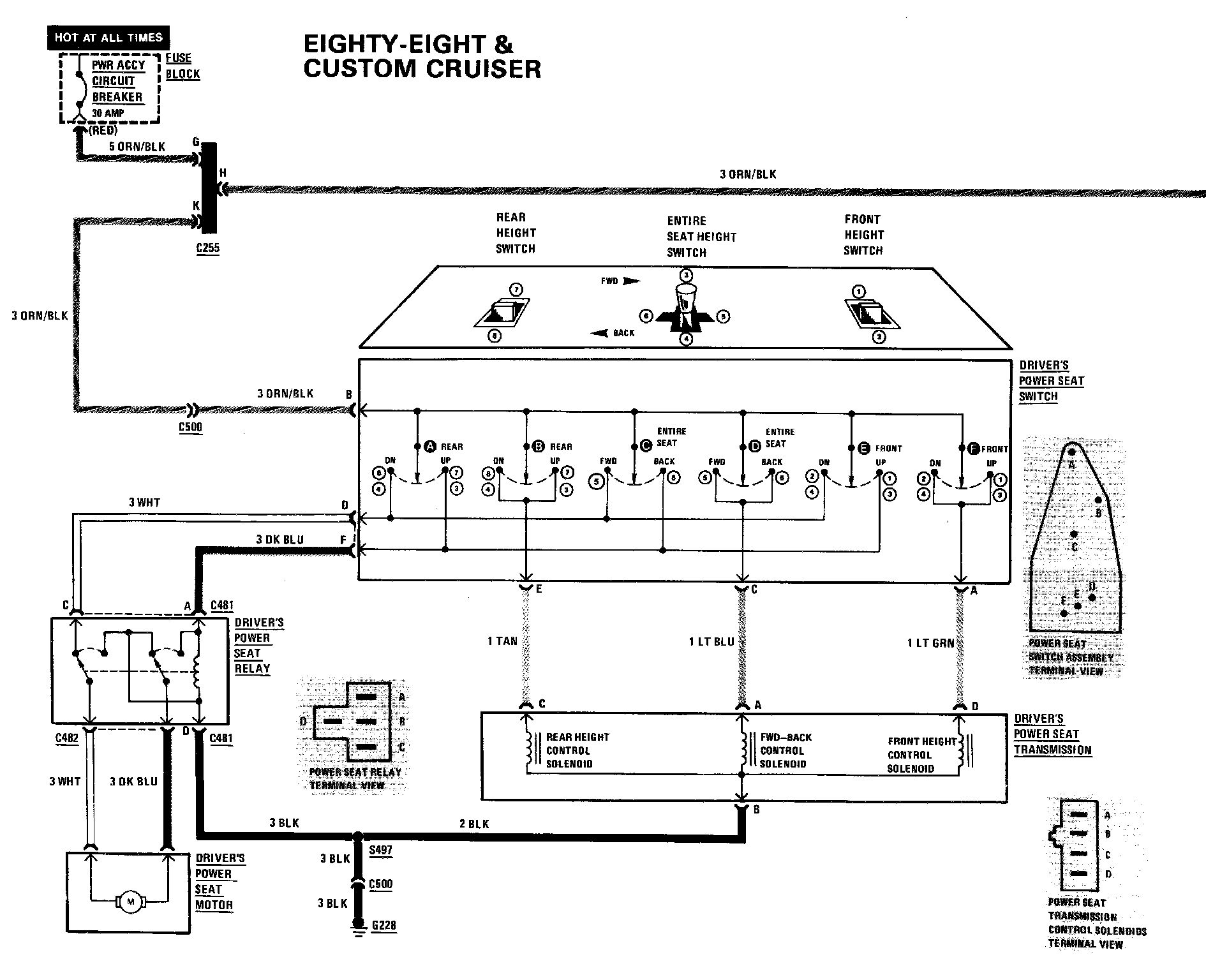

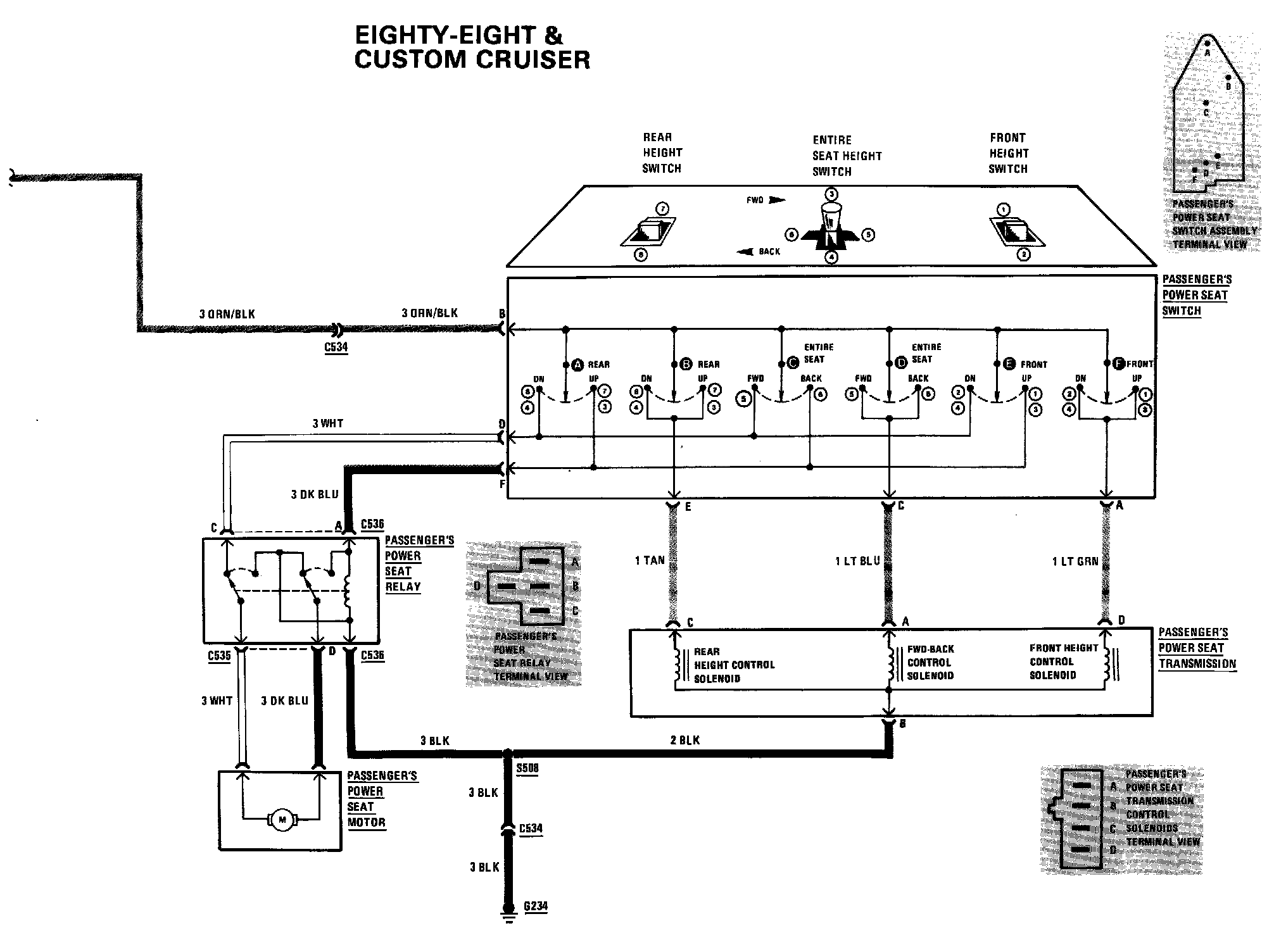

Power Seat 6-Way Wiring Circuit
Power Seat 6-Way Wiring Circuit
