System Specifications


Torque Specifications:





Torque Specifications:

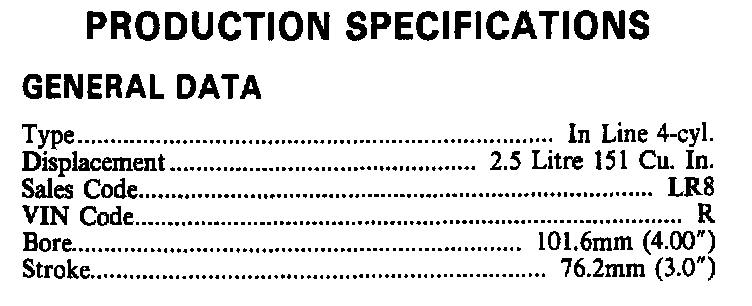

Engine Specifications:





Engine Specifications:





Cylinder Head Bolt Torque Sequence:

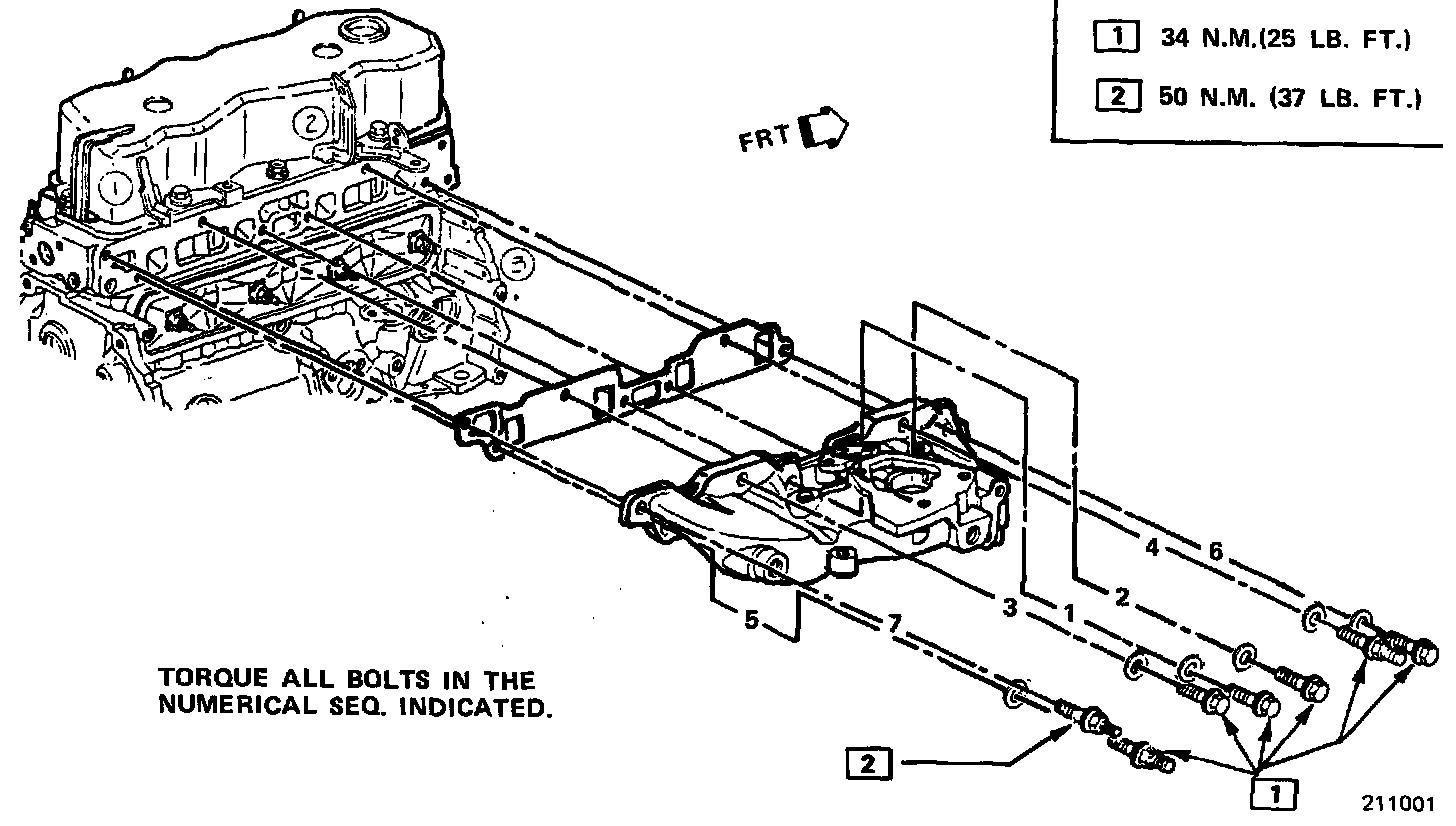

Intake Manifold Bolt Torque Sequence:
