Home >> Oldsmobile >> 1982 >> Omega V6-173 2.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Instument Panel Gauges/Choke Heater

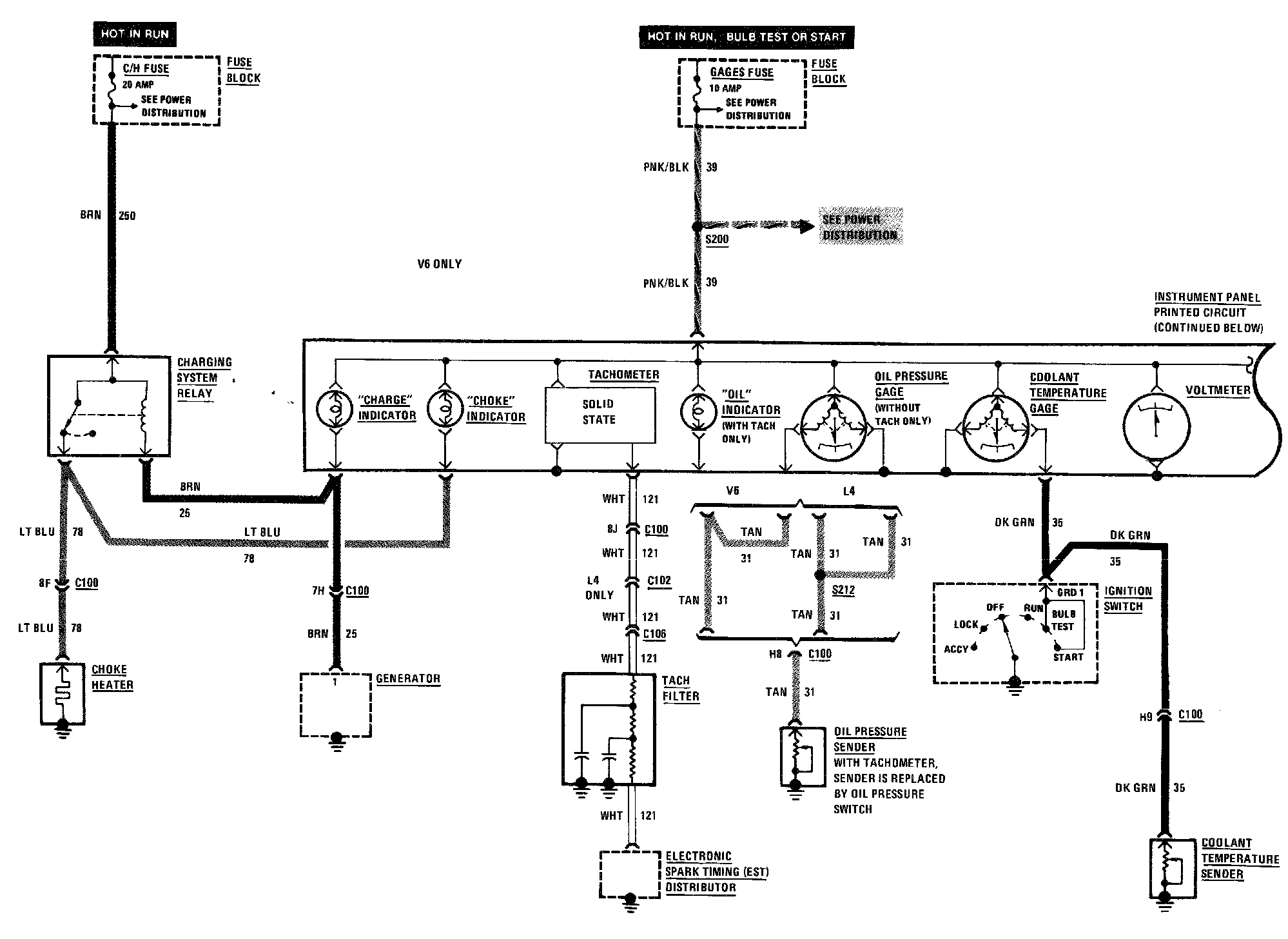

Instument Panel Gauges/Choke Heater
