Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1983
>>
Cutlass Ciera FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Coolant Temperature Sender

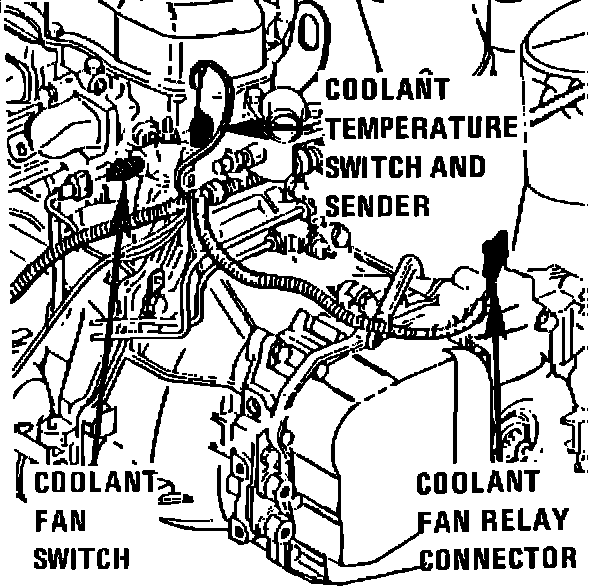

Coolant Temperature Sender
LH Side Of Engine.:
Front Side Of Engine.:
Top Of Engine Below LH Side Of Valve Cover
Applicable to: 1982-83 Cutlass Ciera w/4-151
