Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1983
>>
Cutlass Ciera FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

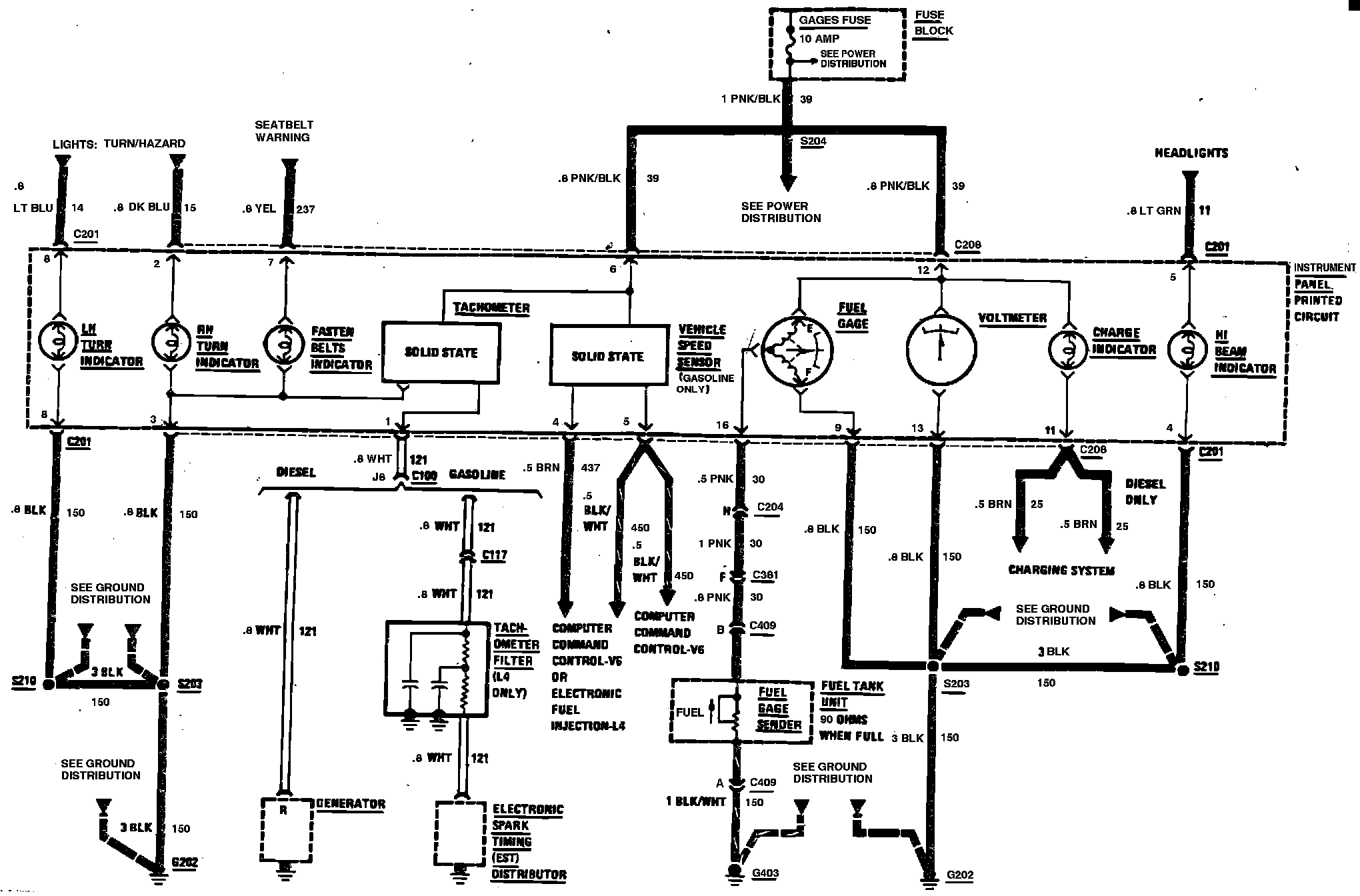

With Gauges
With Gauges

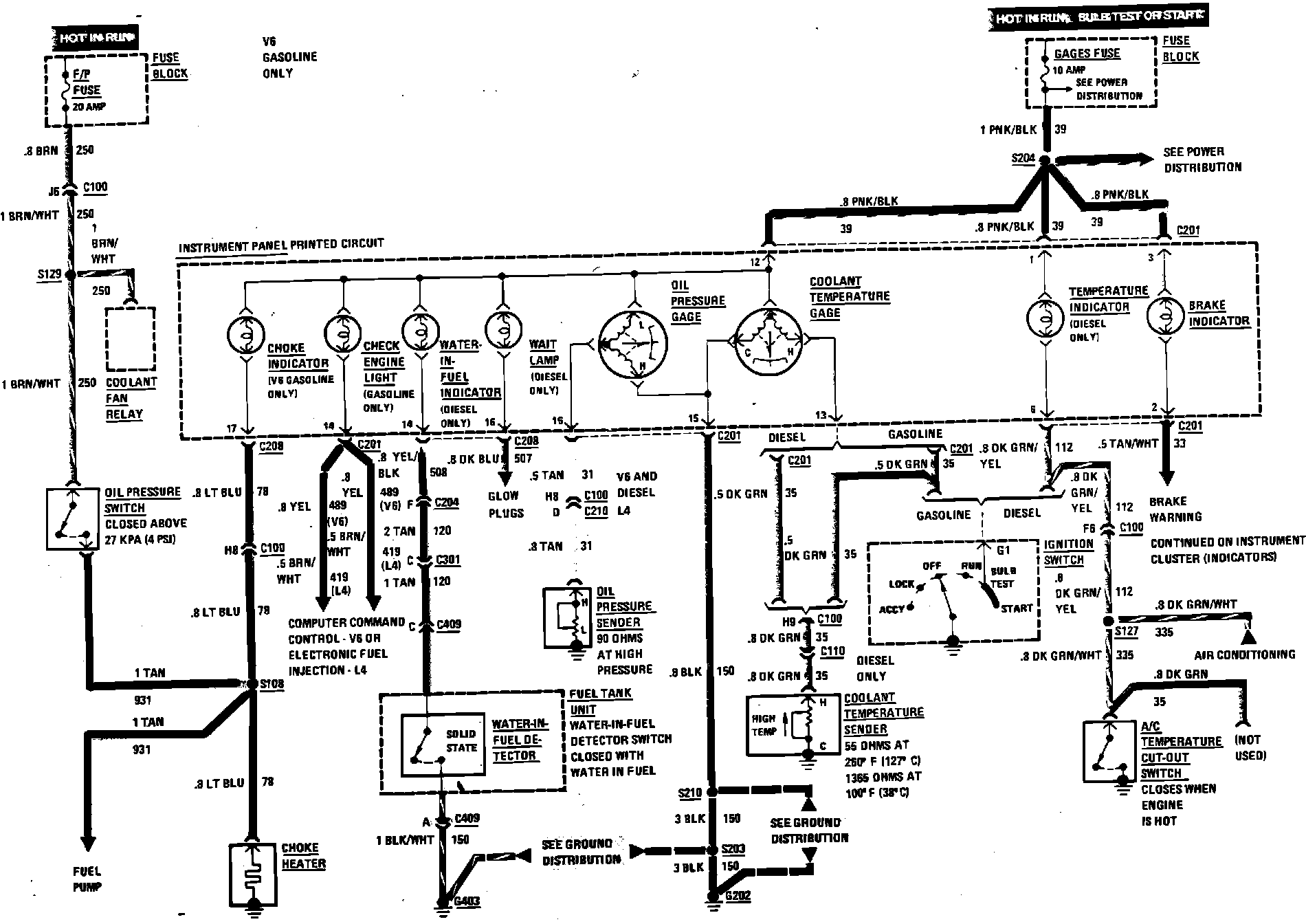

Choke Heater & Engine Warning Indicator Wiring Circuit With Gauges:
Choke Heater & Engine Warning Indicator Wiring Circuit With Gauges:
