System Specifications

Torque & Engine Specifications:





Continued Engine Specifications:

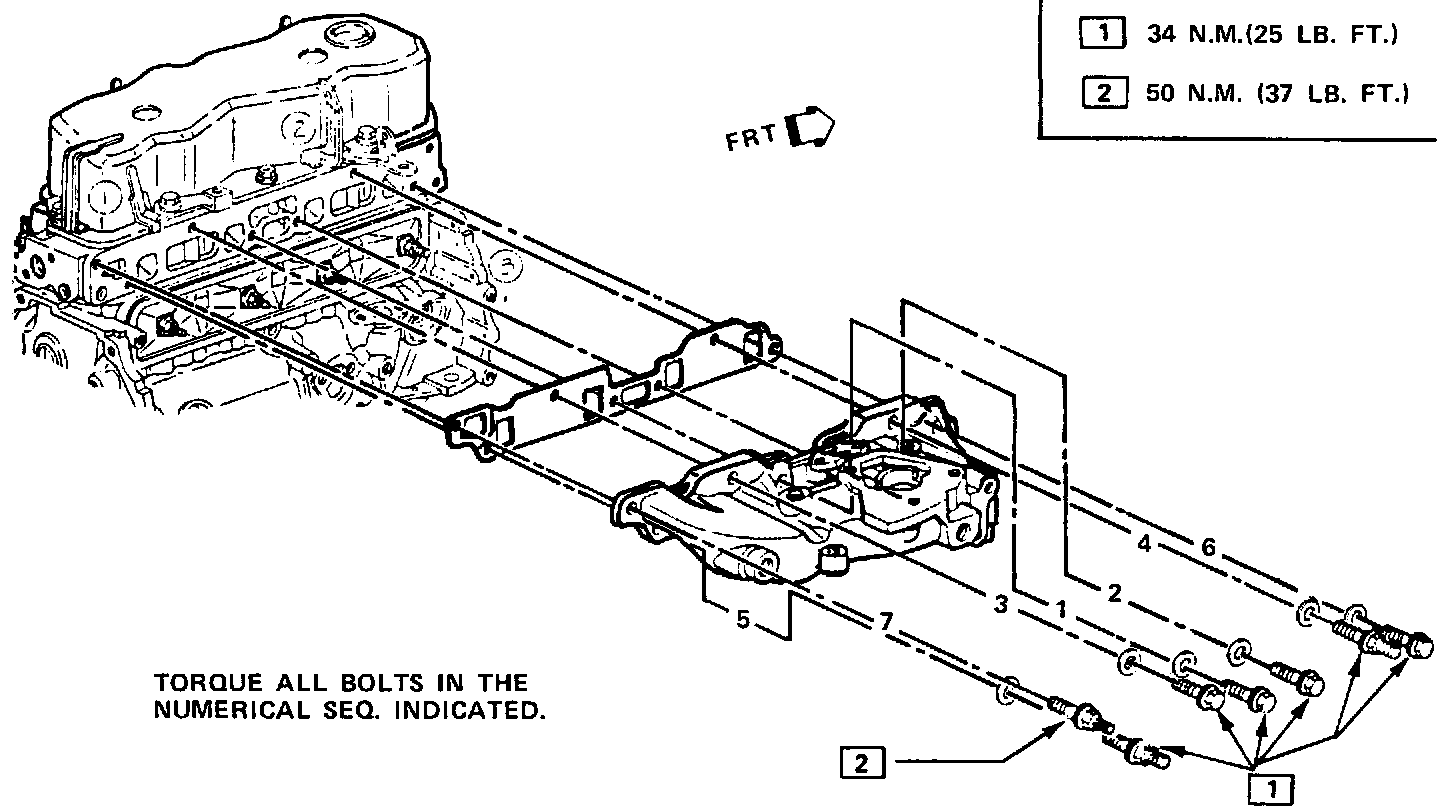

Intake Manifold Sequence:

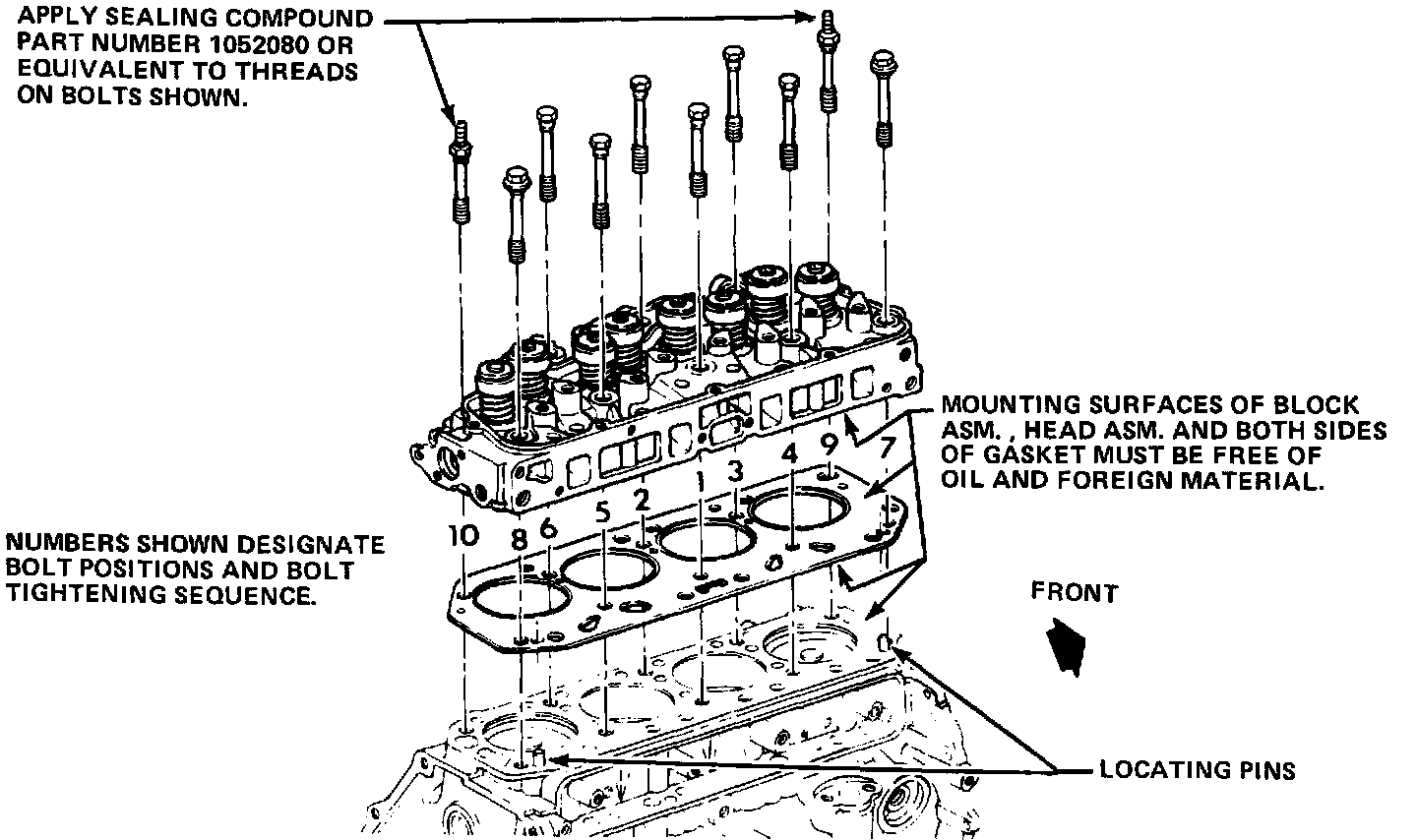

Cylinder Head Sequence:
