Less Gauges

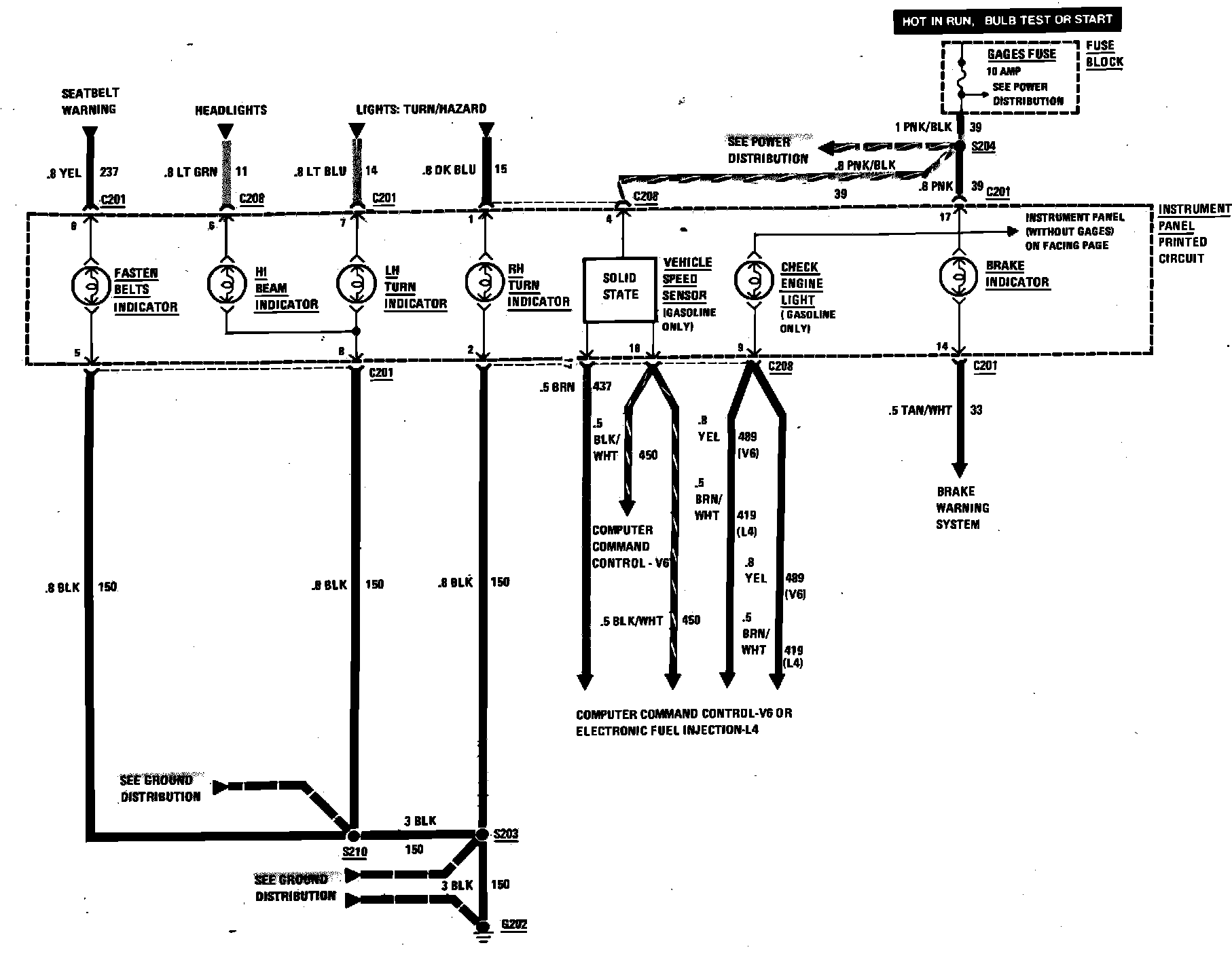

Choke Heater & Engine Warning Indicator Wiring Circuit Less Gauges:

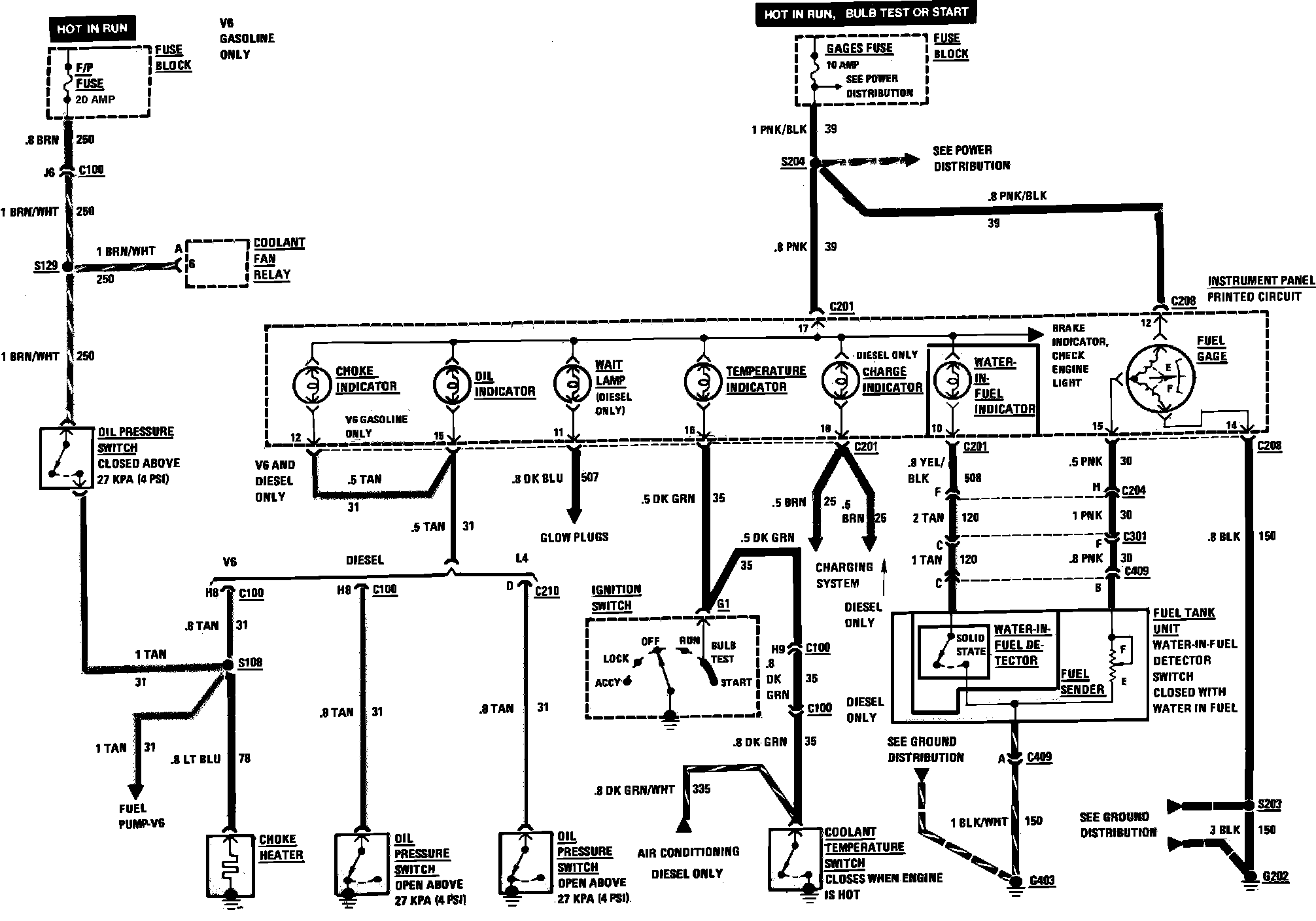

Choke Heater & Engine Warning Indicator Wiring Circuit Less Gauges:
