System Specifications

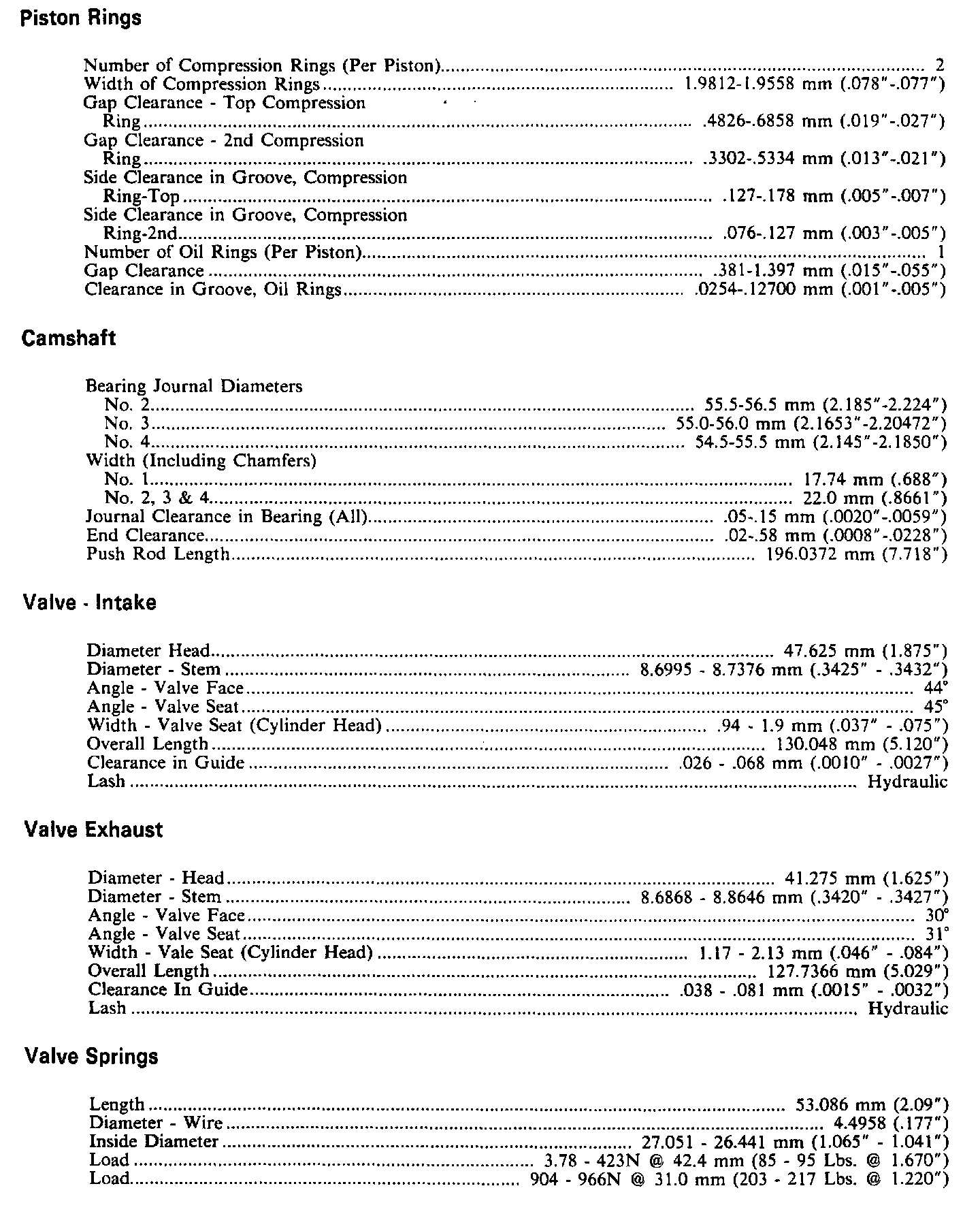

Torque & Engine Specifications:





Continued Engine Specifications:





Continued Engine Specifications:





Continued Engine Specifications:

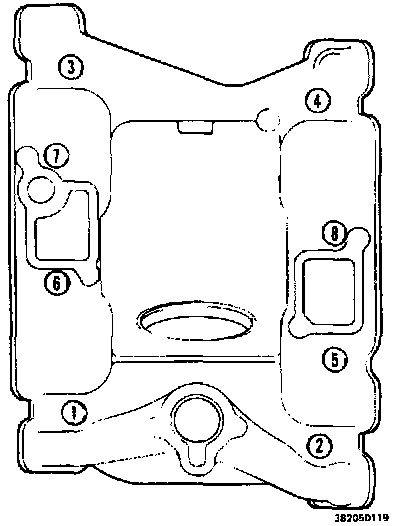

Intake Manifold Sequence:





Cylinder Head Sequence:
