Brake Warning Indicator
>>
W/V8-307 (H.O. V.I.N. 9) & V6 Diesel
W/V8-307 (H.O. V.I.N. 9) & V6 Diesel

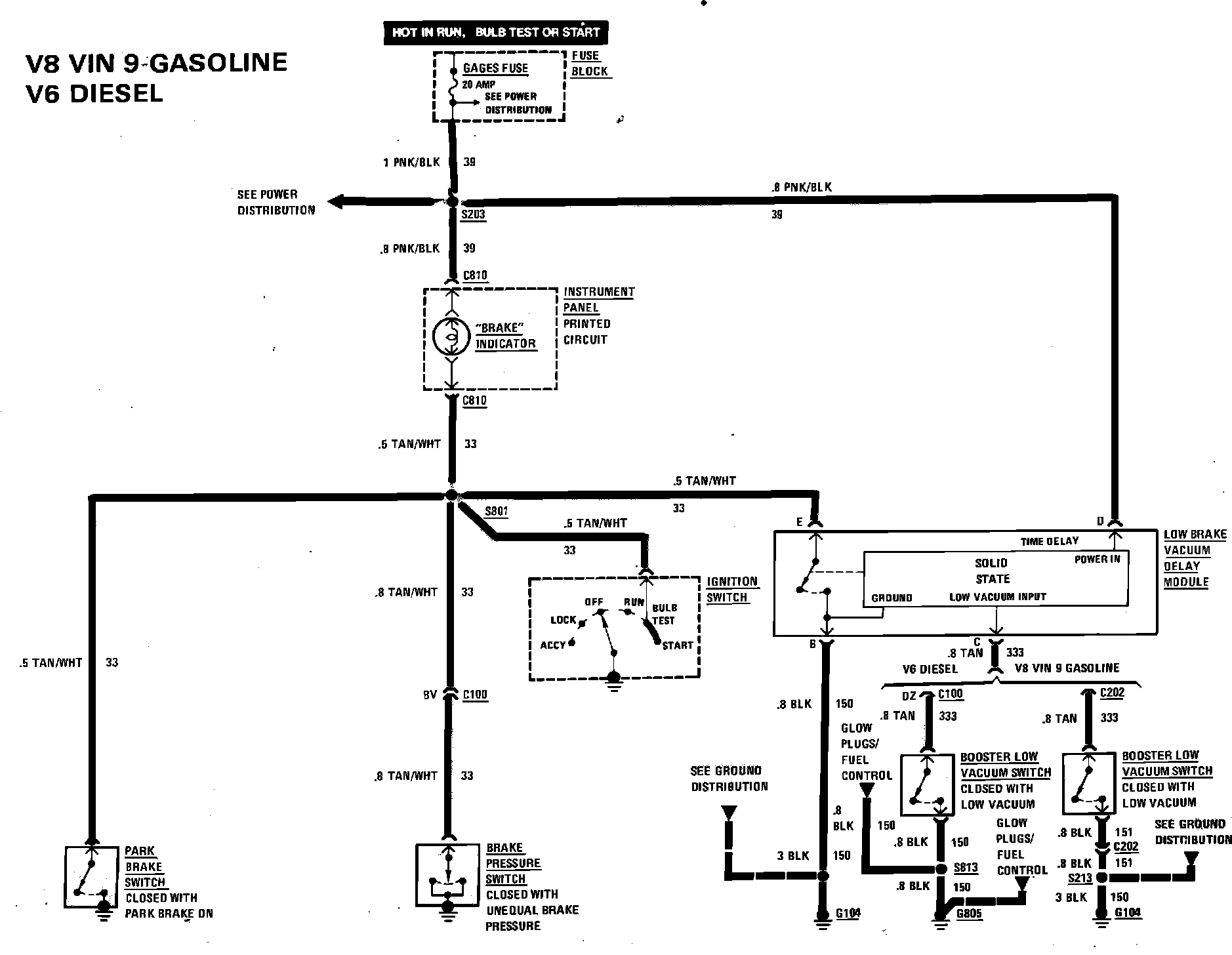

Brake Warning System Wiring Circuit:
