Instrument Panel Circuit Board

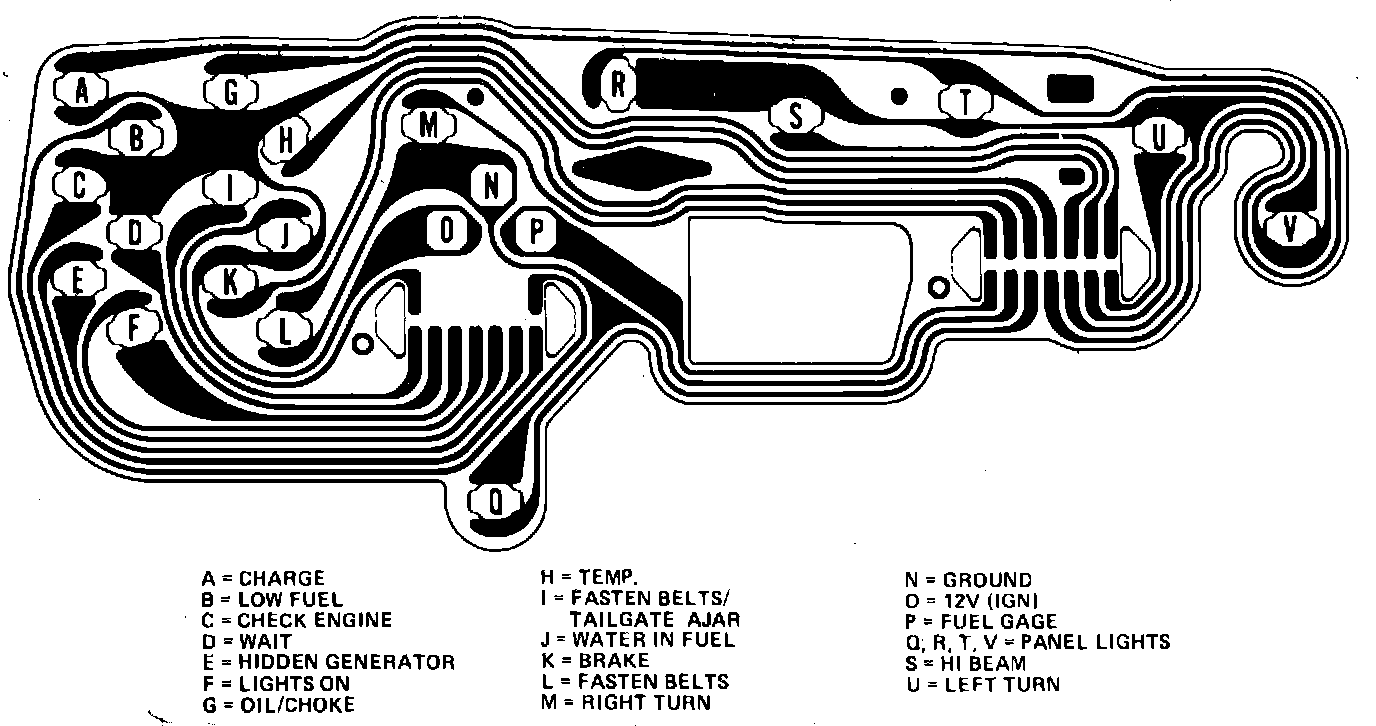

Instrument Panel Printed Circuit (Less Gauges):

Instrument Panel Printed Circuit (Less Gauges):
