Engine Data Sensors & Torque Converter Clutch (TCC)

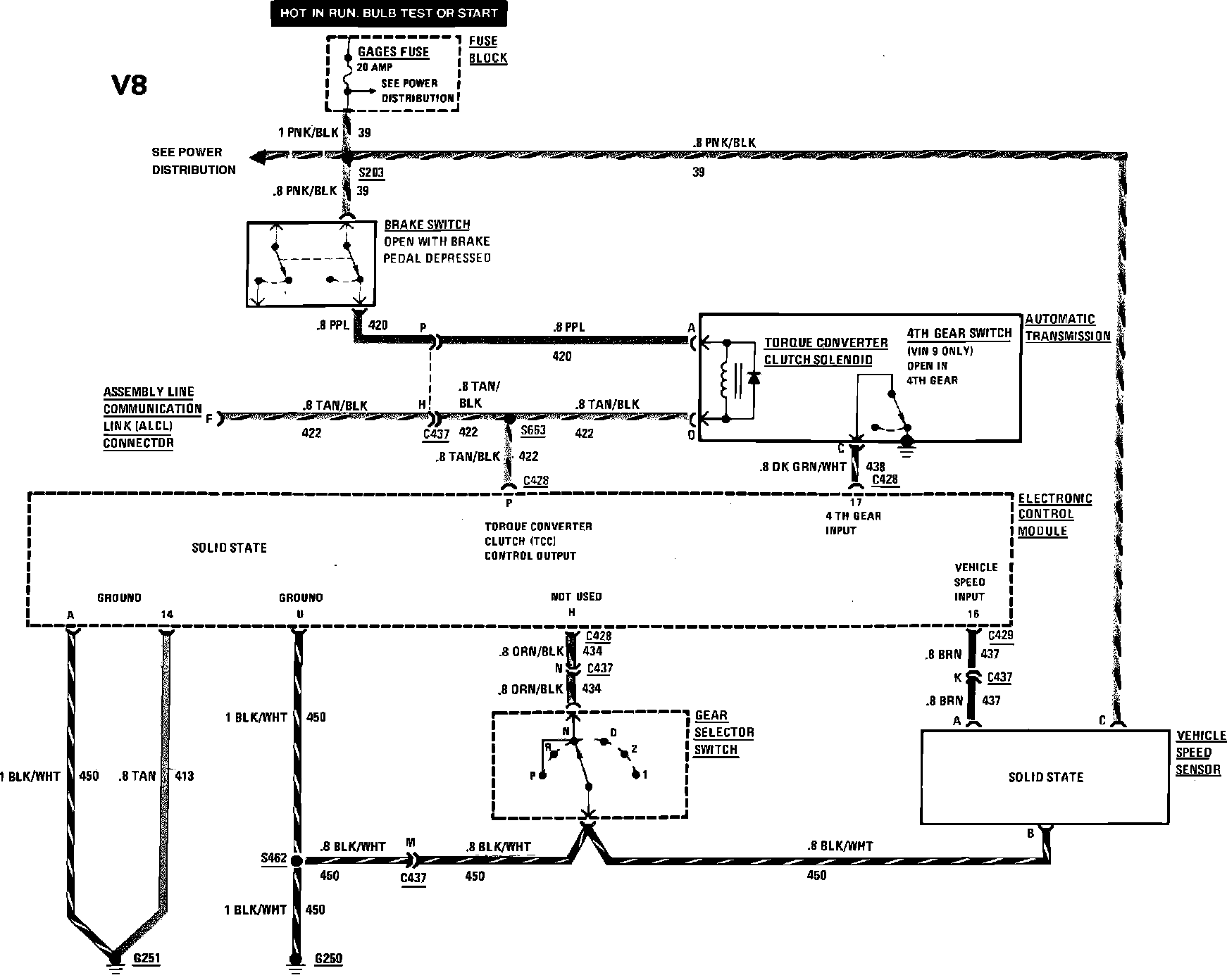

Computer Command Control (Torque Converter Clutch & Vehicle Sensors) Wiring Circuit:
