System Specifications

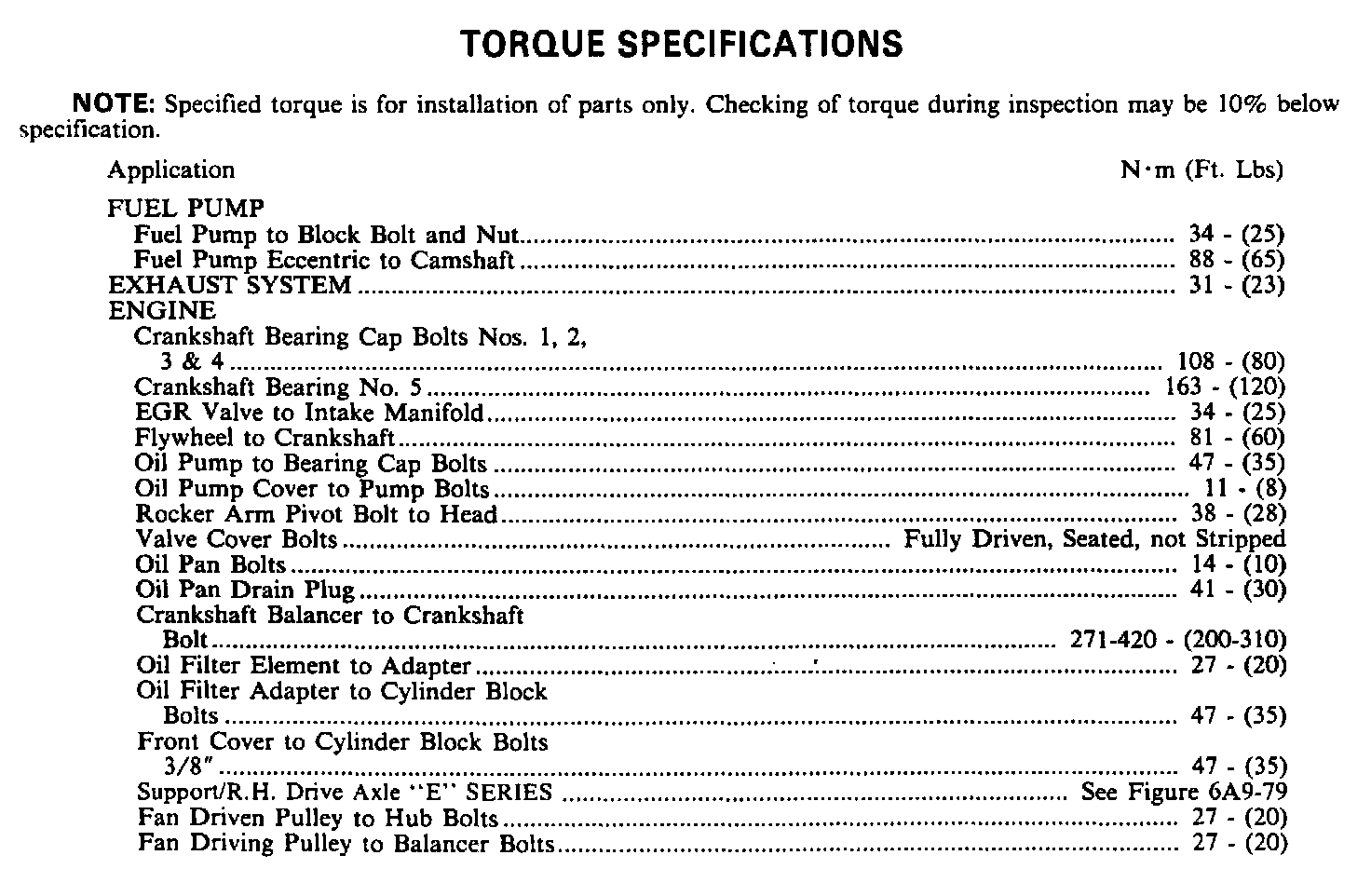

Torque Specifications:





Continued Torque & Engine Specifications:

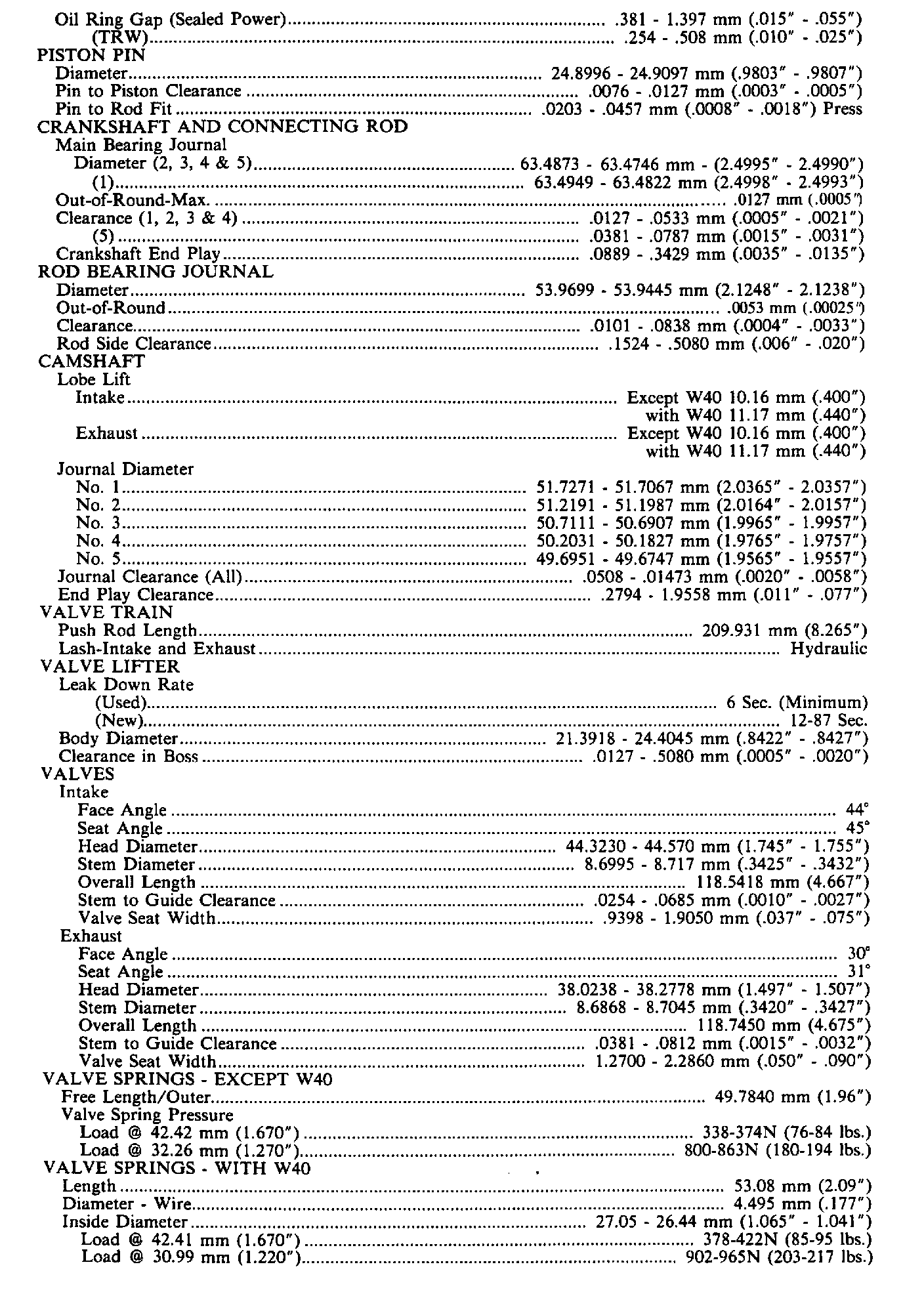

Continued Engine Specifications:

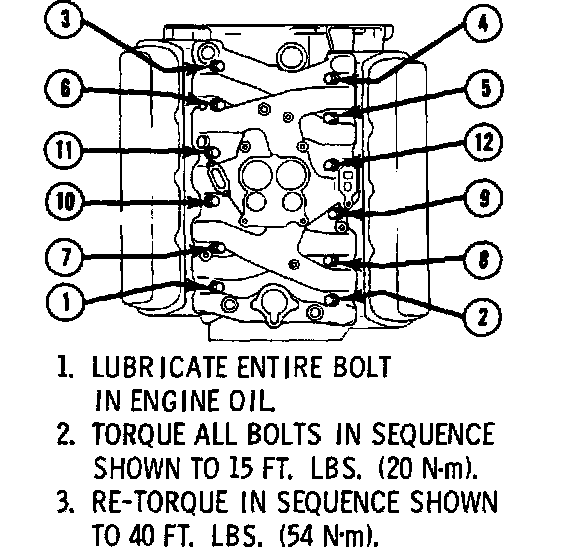

Intake Manifold Sequence:

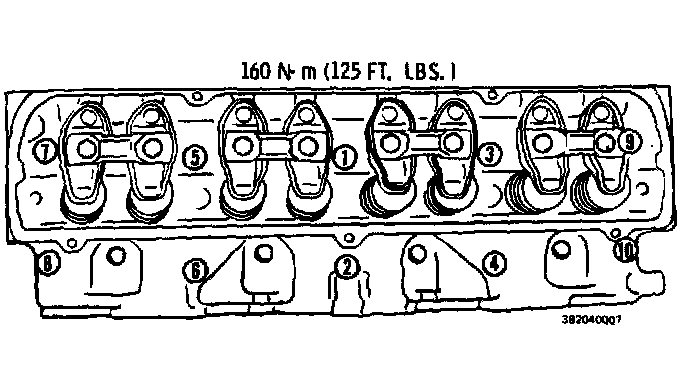

Cylinder Head Sequence:
