Home >> Oldsmobile >> 1983 >> Cutlass V8-350 5.7L DSL VIN N FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Emission Controls & Torque Converter Clutch (TCC)

Emission Controls & Torque Converter Clutch (TCC)

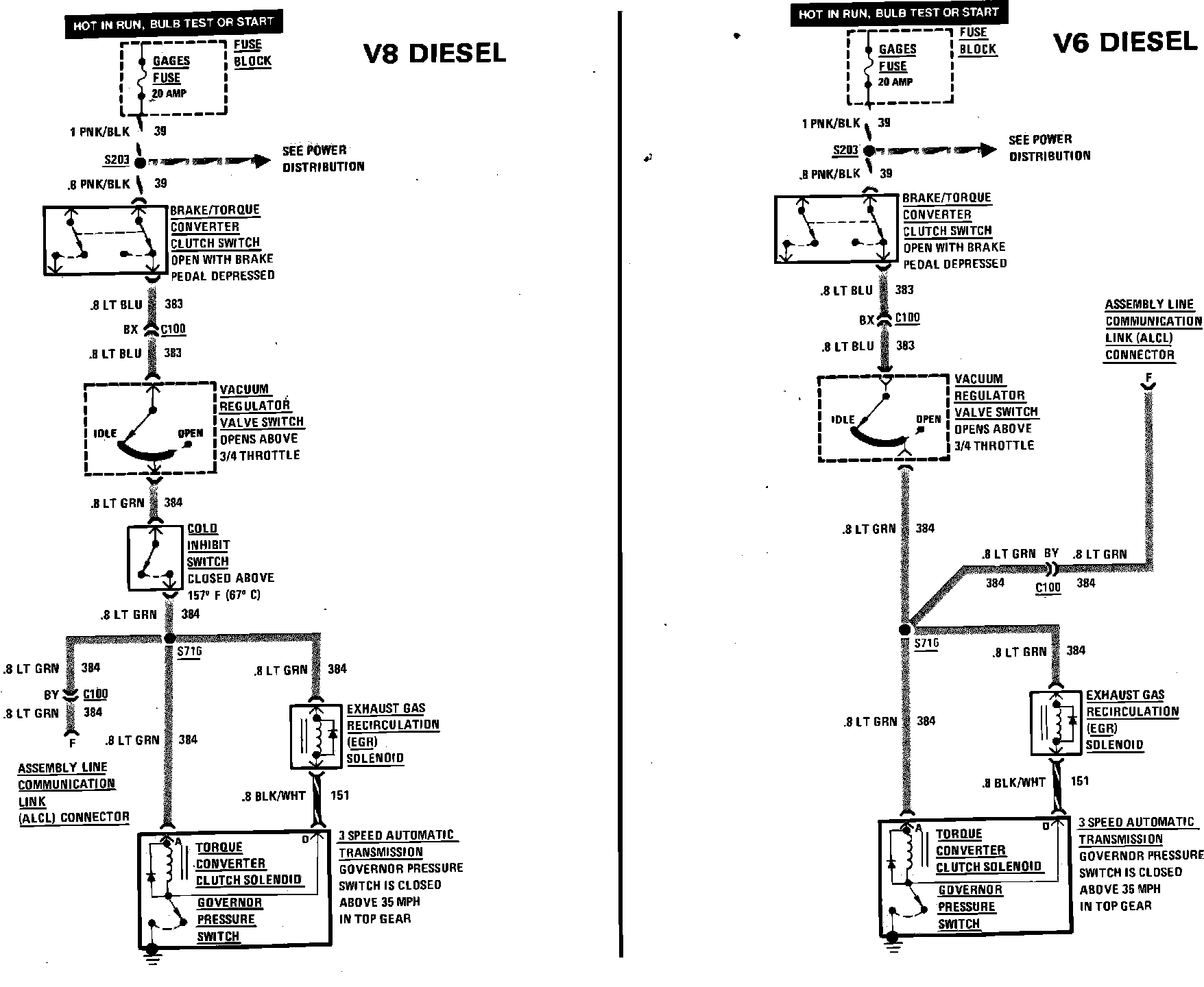

Emission Controls & Torque Converter Clutch Wiring Circuit. 1983 Cutlass:
