Vanity Lamp

Interior Lighting (Reading/Trunk/Vanity) Wiring Circuit:

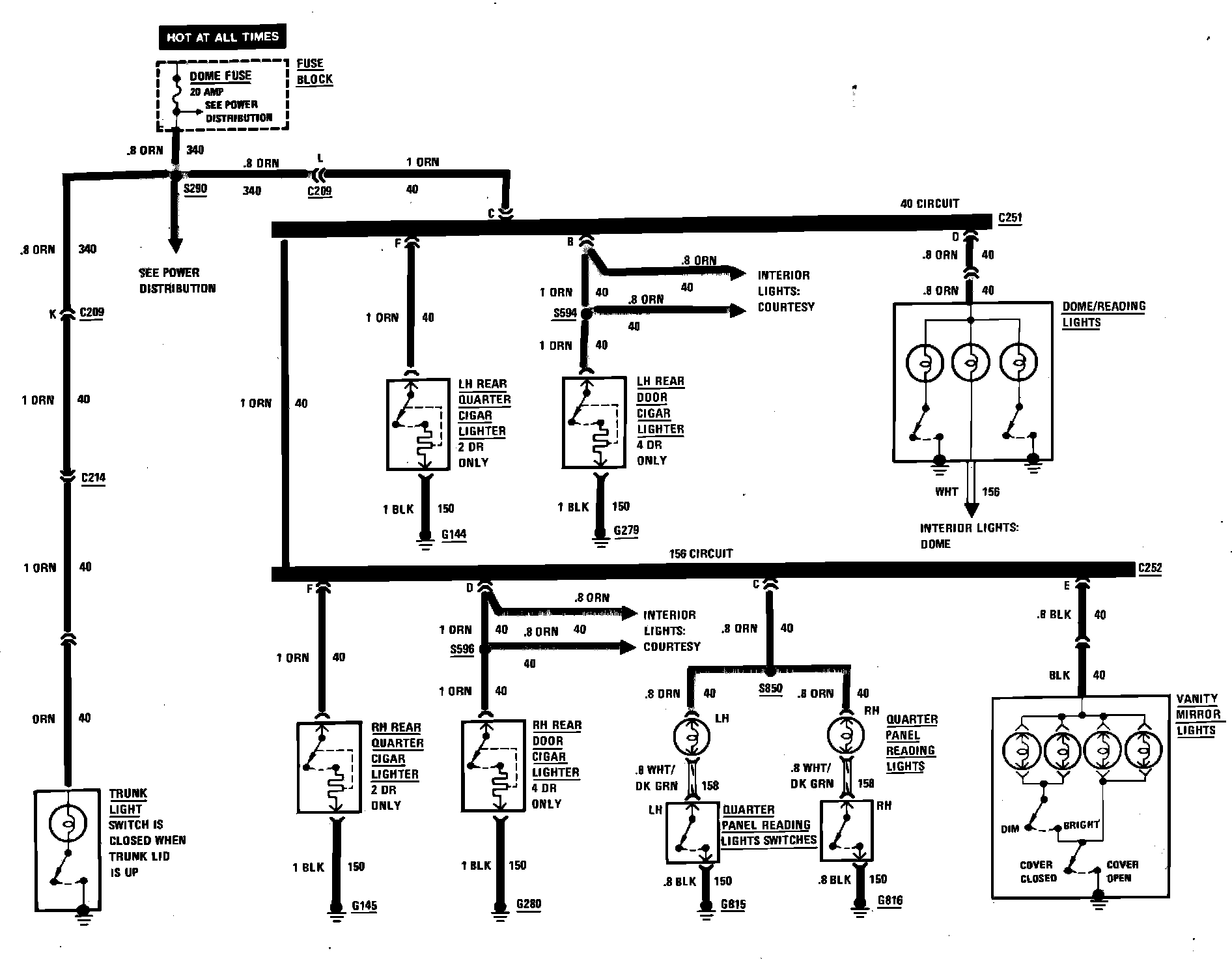

Interior Lighting (Reading/Rear Cigar Lighters/Trunk/Vanity) Wiring Circuit:
