Home >> Oldsmobile >> 1983 >> Delta 88 V6-231 3.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

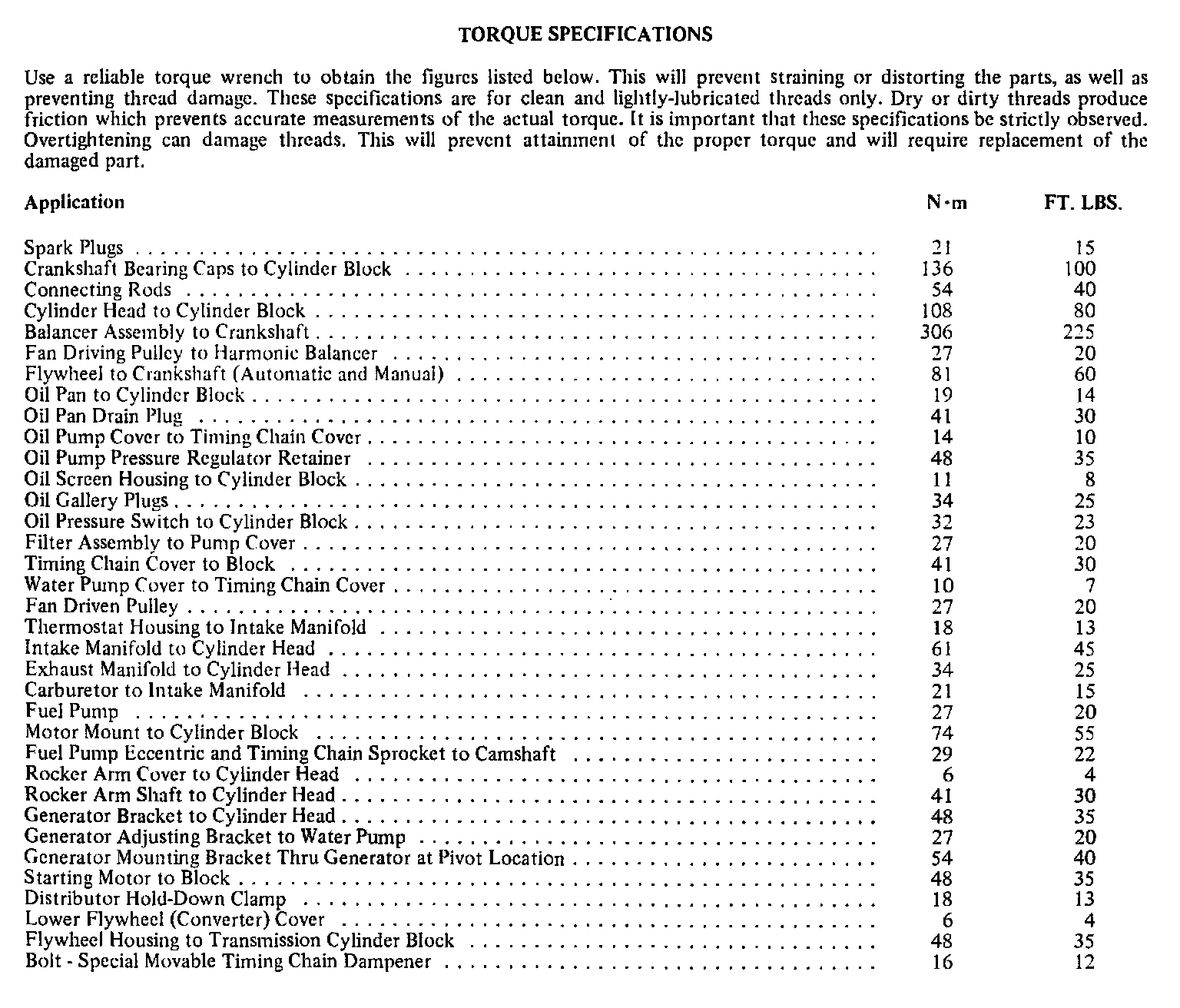

Torque Sequence:

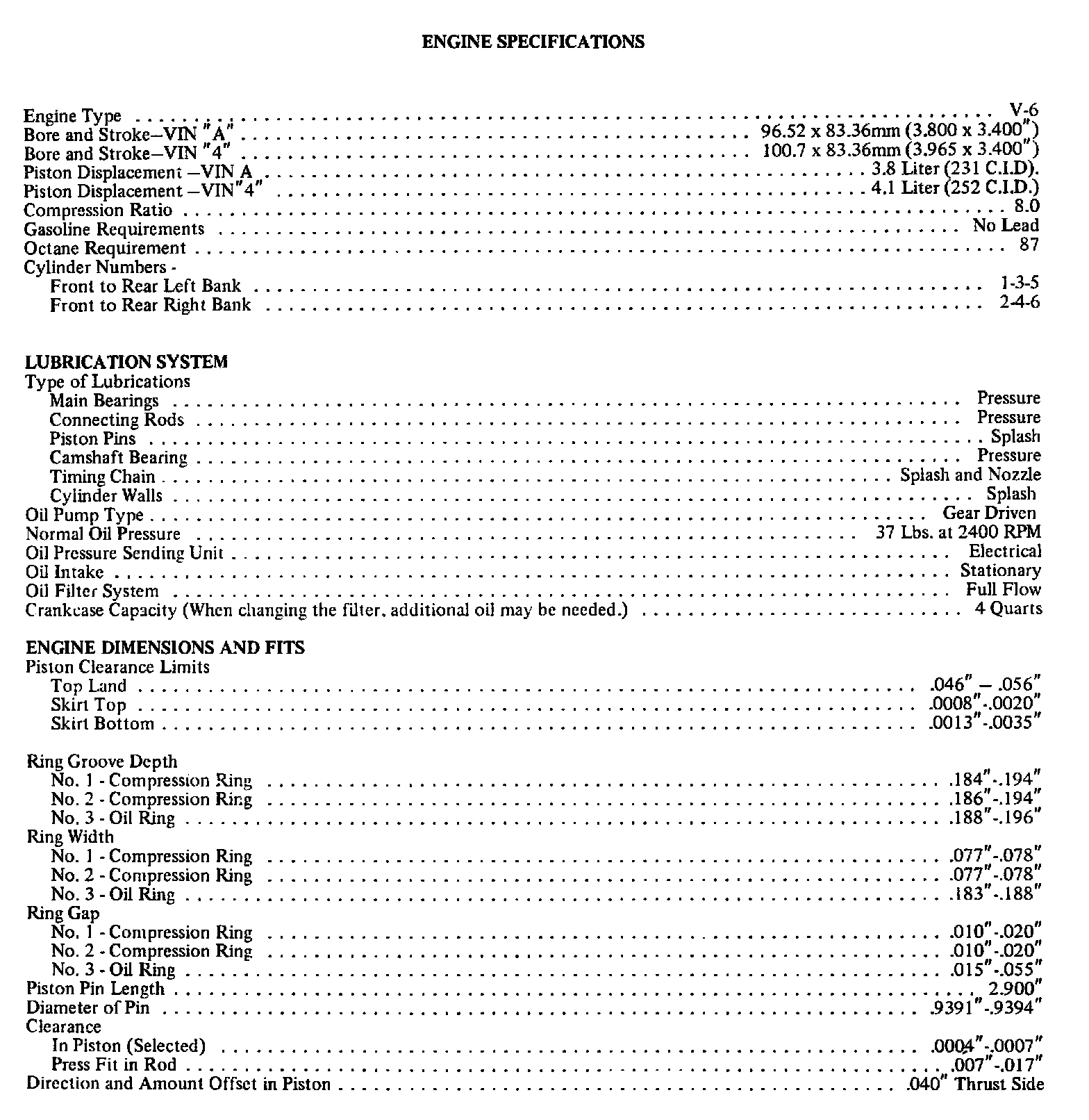

Engine Specifications:

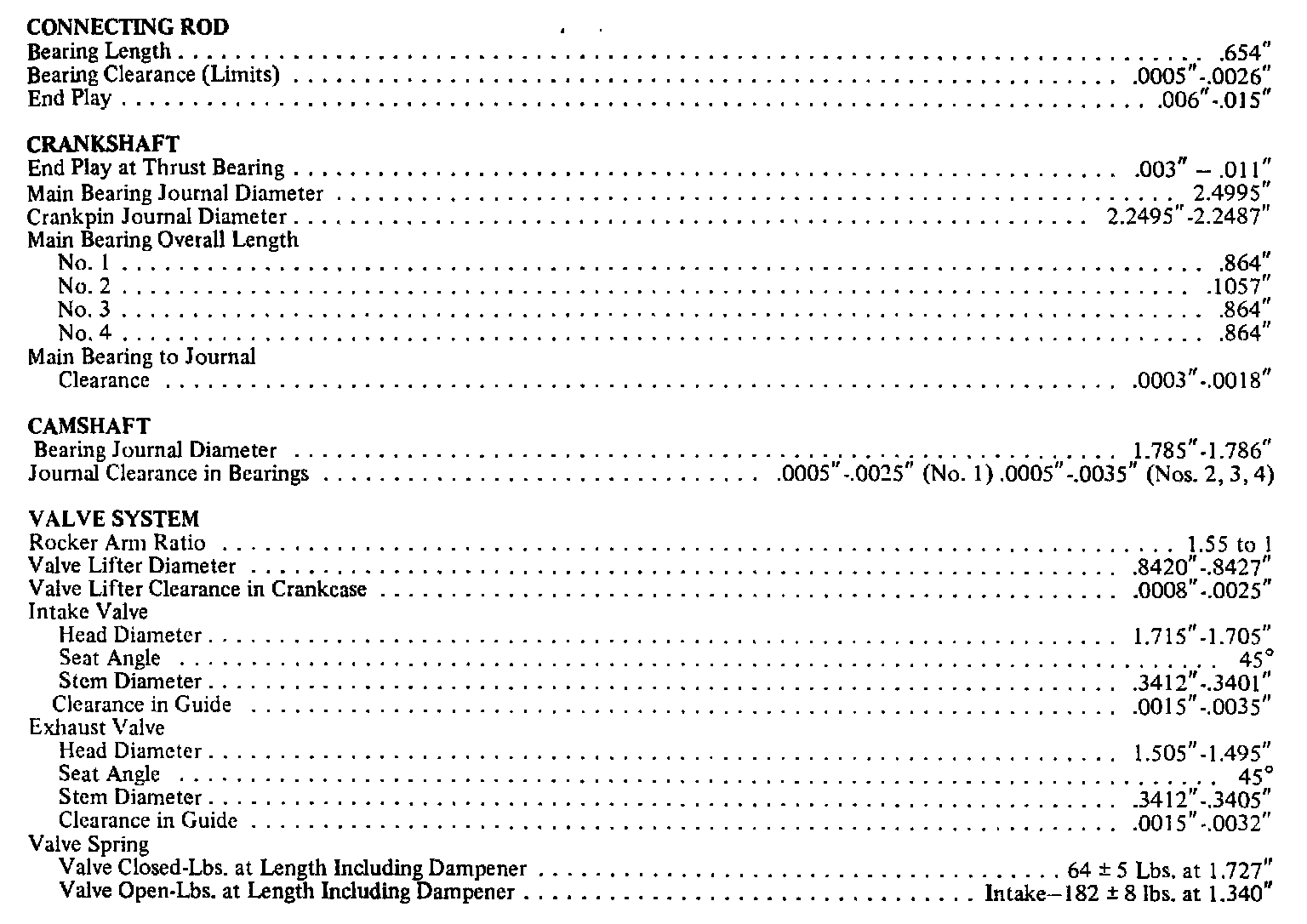

Continued Engine Specifications:

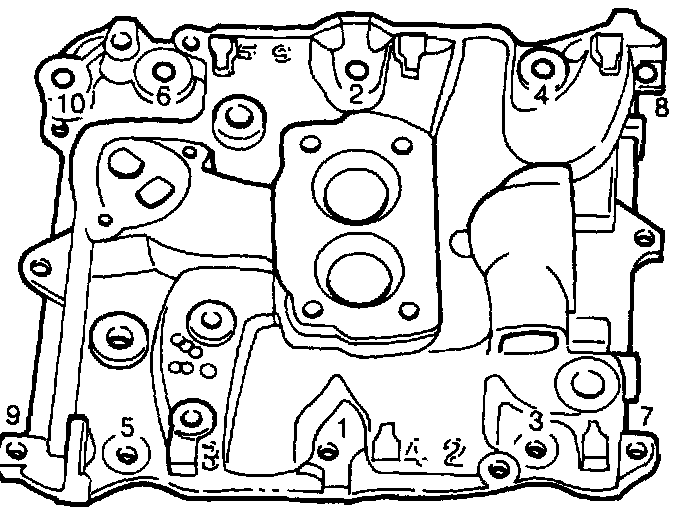

Intake Manifold Sequence:





Cylinder Head Sequence:
