Cruise Control
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
88 W/V8-307 & 3 Speed Auto Trans
88 W/V8-307 & 3 Speed Auto Trans

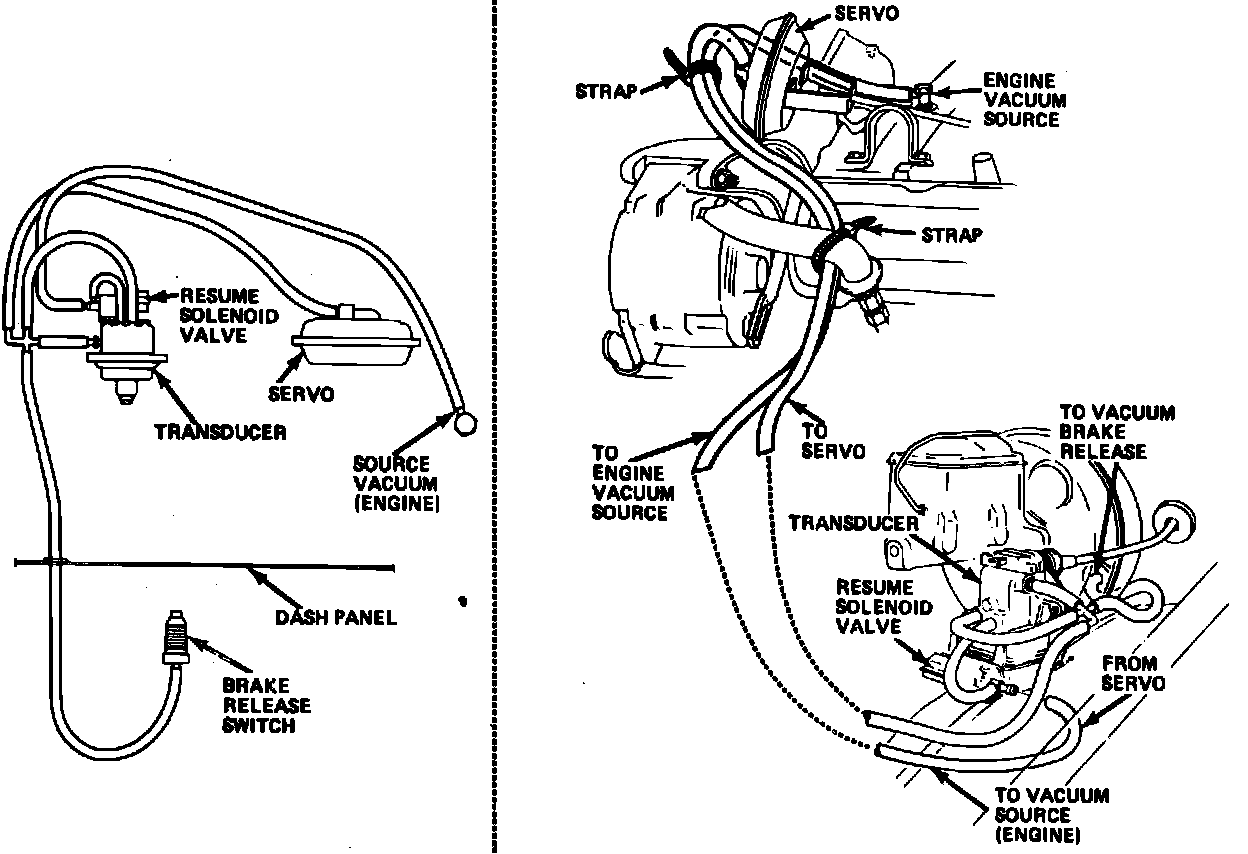

Cruise Control Vacuum Circuit 3 Speed Auto. Trans.:
