Cigar Lighter (Front), Clock & Glove Box Lamp

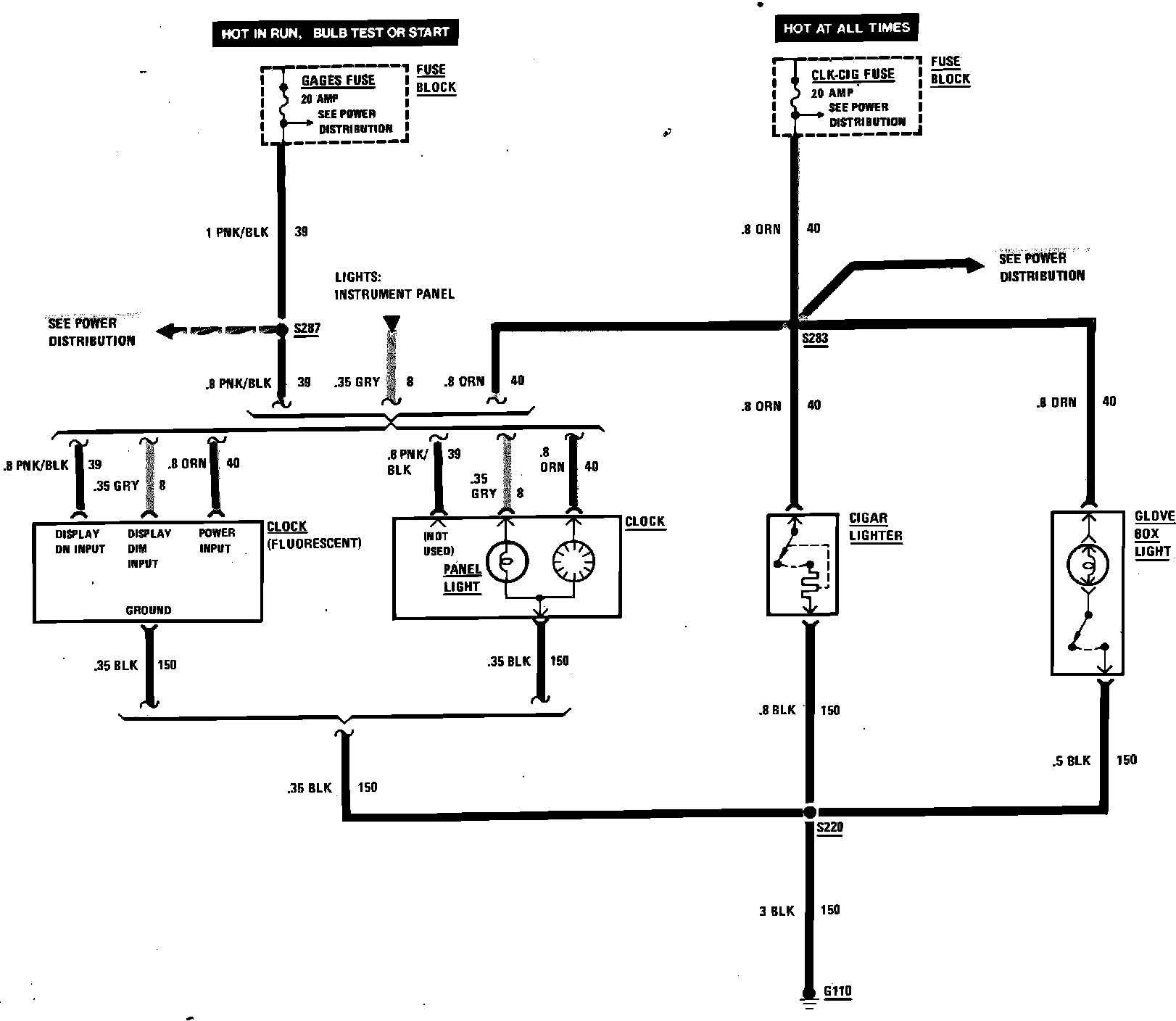

Cigar Lighter (Front), Clock & Glove Compartment Lamp Wiring Circuit:
