Blower Motor: Service and Repair

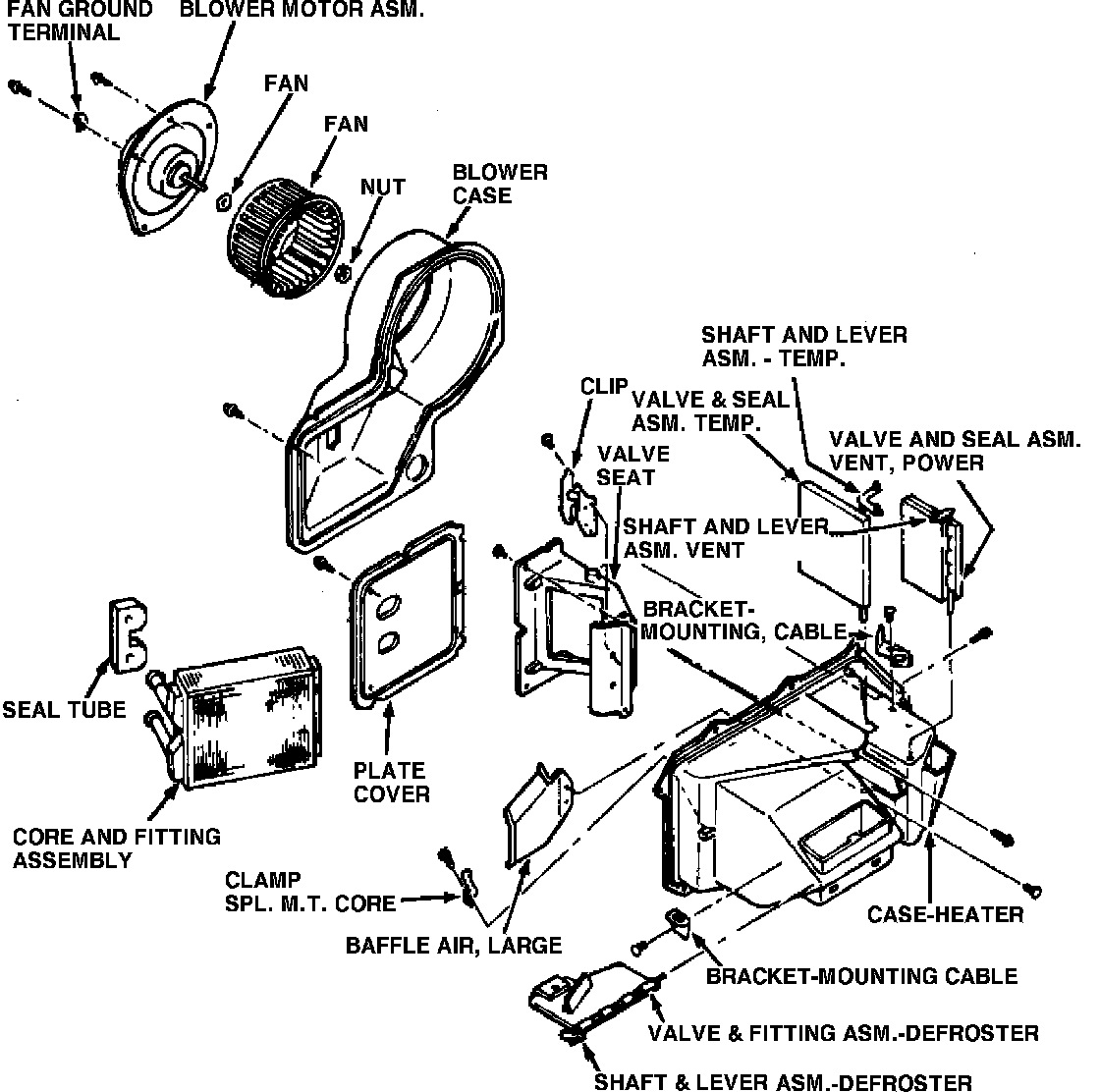

Fig. 10 Heater core & blower motor, less A/C:

1. Disconnect battery ground cable.
2. Disconnect blower motor electrical connections.
3. Remove blower motor attaching screws and the blower motor, Fig. 10.
4. Reverse procedure to install.
